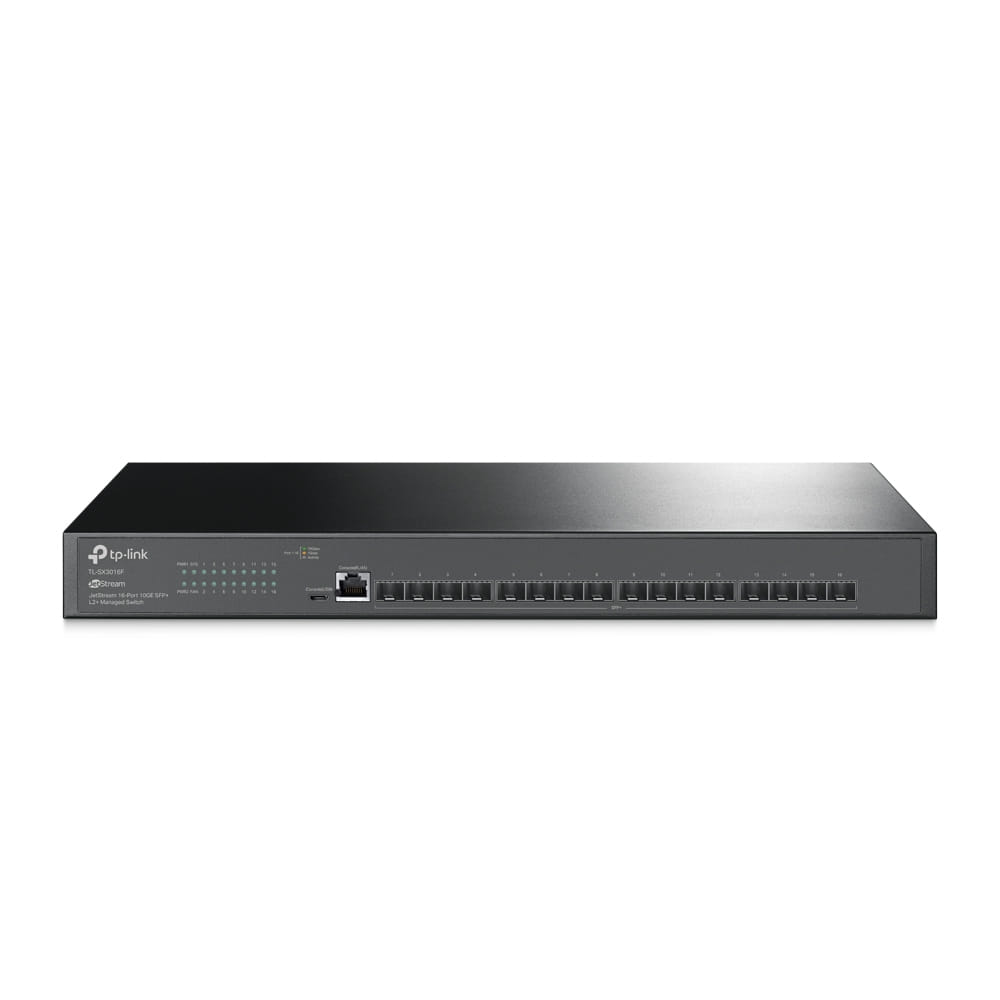

TP-LINK TL-SX3016F, Managed, L2/L2+, None, Rack mounting
Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3016F "a fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
Seamless Integration to Omada Cloud SDN
Omada s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network "all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Dual Redundant Power Supplies
Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
Build and expand your lightning-fast network with TP-Link TL-SX3016F "a fully managed switch with full 16-port 10G fiber ports and 320 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
Seamless Integration to Omada Cloud SDN
Omada s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network "all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Dual Redundant Power Supplies
Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L2+ |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| System event log |
|
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | None |
| SFP+ module slots quantity | 16 |
| Console port | RJ-45/Micro-USB |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Rate limiting |
|
| Spanning tree protocol |
|
| Head-of-line (HOL) blocking |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 320 Gbit/s |
| Forwarding rate | 238.08 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Number of queues | 8 |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS,SSH,SSH-2,SSL/TLS |
| BPDU filtering/protection |
|
| IP-MAC-Port binding |
|
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, FCC, RoHS |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 32.74 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 111.71 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| Cables included | AC |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 545948 |
| MPN | TL-SX3016F |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
