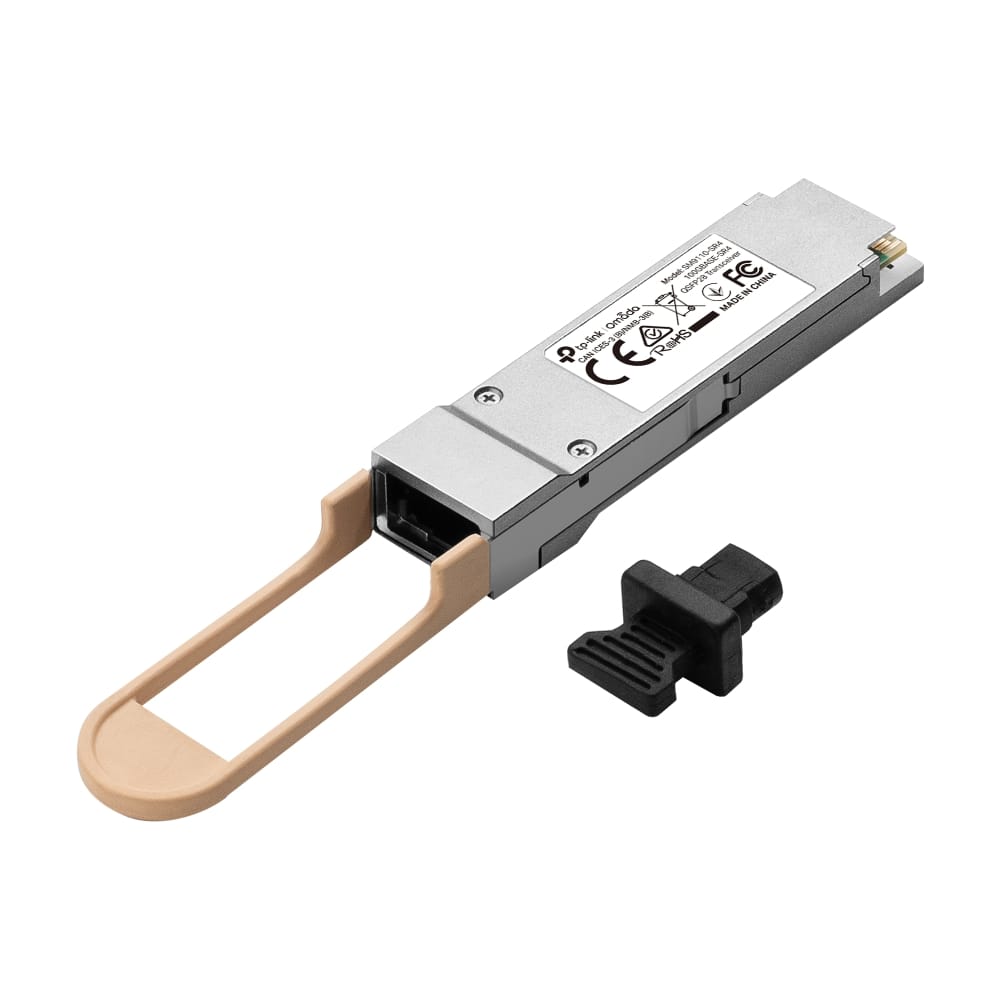

100GBASE-SR4 multi-mode QSFP28 Transceiver; Supports Digital Diagnostic Monitoring (DDM); Up to 100 m transmission distance; Hot-Pluggable with maximum flexibility; Wide operating temperature; Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 100000 Mbit/s |
| Interface type | QSFP28 |
| Single-mode fiber (SMF) supported |
 |
| Multi-mode fiber (MMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | MPO-12, MTP |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SR4 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 150 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Tx power (min) | -8.4 dBmW |
| Tx power (max) | 2.4 dBmW |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ba, IEEE 802.3bm |
| Fiber ethernet cabling technology | 40GBASE, 100GBASE |
| Digital Diagnostics Monitoring (DDM) |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Metallic |
| Form factor The shape or design of the product. | QSFP28 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Hot-swap |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP |
| Operational conditions | |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 124 mm |
| Depth The distance from the front to the back of something. | 18.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 11.7 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| User guide |
|
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| SKU | 810310 |
| MPN | SM9110-SR4 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
