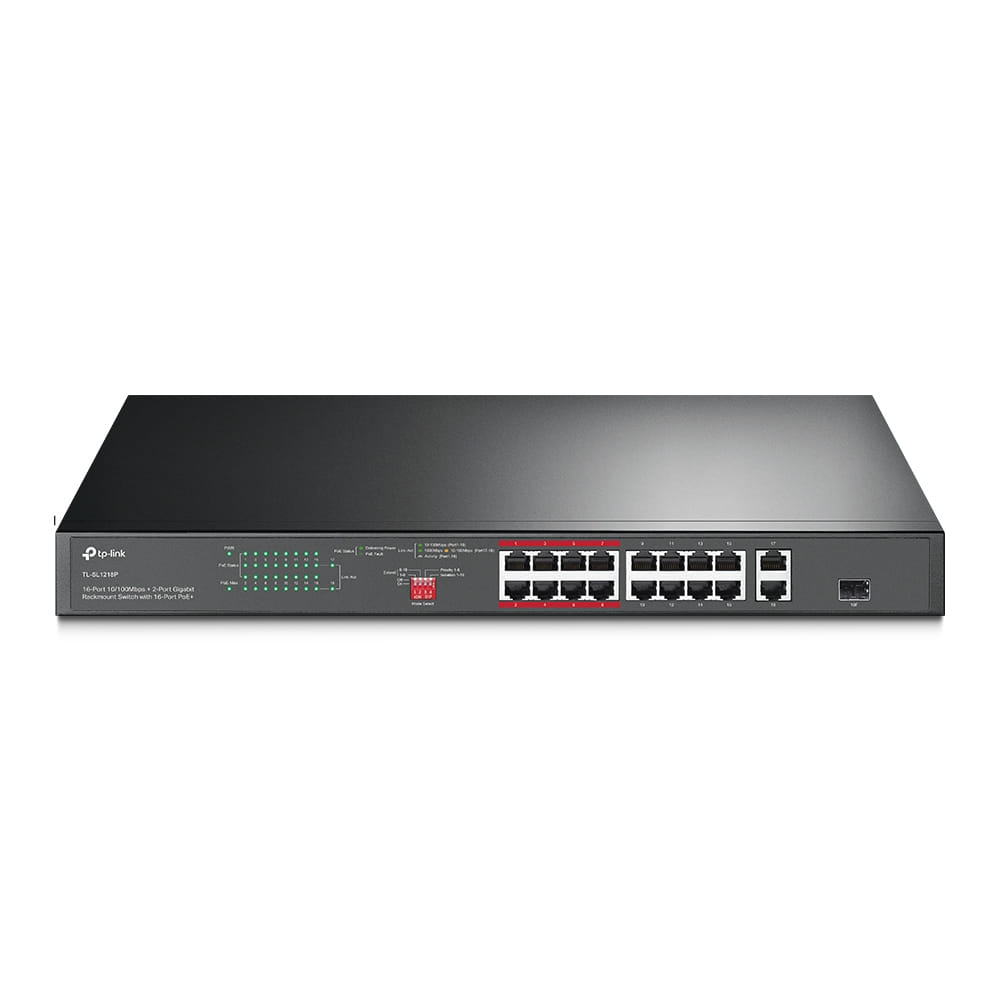

TP-LINK TL-SL1218P, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting
Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16 - PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance "Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m "perfect for IP Camera deployment in large areas.
Ideal for IP Surveillance "Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1 "8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1 "16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2 - gigabit RJ45 ports and 1 - combo gigabit SFP slot ensure smooth streaming even when 16 - HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports power to ensure high-priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0 "50 ) with reliability.
Multiple Application Scenarios
The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16 - PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Ideal for IP Surveillance "Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m "perfect for IP Camera deployment in large areas.
Ideal for IP Surveillance "Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1 "8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1 "16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2 - gigabit RJ45 ports and 1 - combo gigabit SFP slot ensure smooth streaming even when 16 - HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports power to ensure high-priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0 "50 ) with reliability.
Multiple Application Scenarios
The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 1 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Flow control support |
 |
| MAC address auto-learning supported |
|
| MAC address auto-aging supported |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 7.2 Gbit/s |
| Forwarding rate | 5.36 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 10000 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 172.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 150 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 589.25 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| Cables included | AC |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 444941 |
| MPN | TL-SL1218P |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
