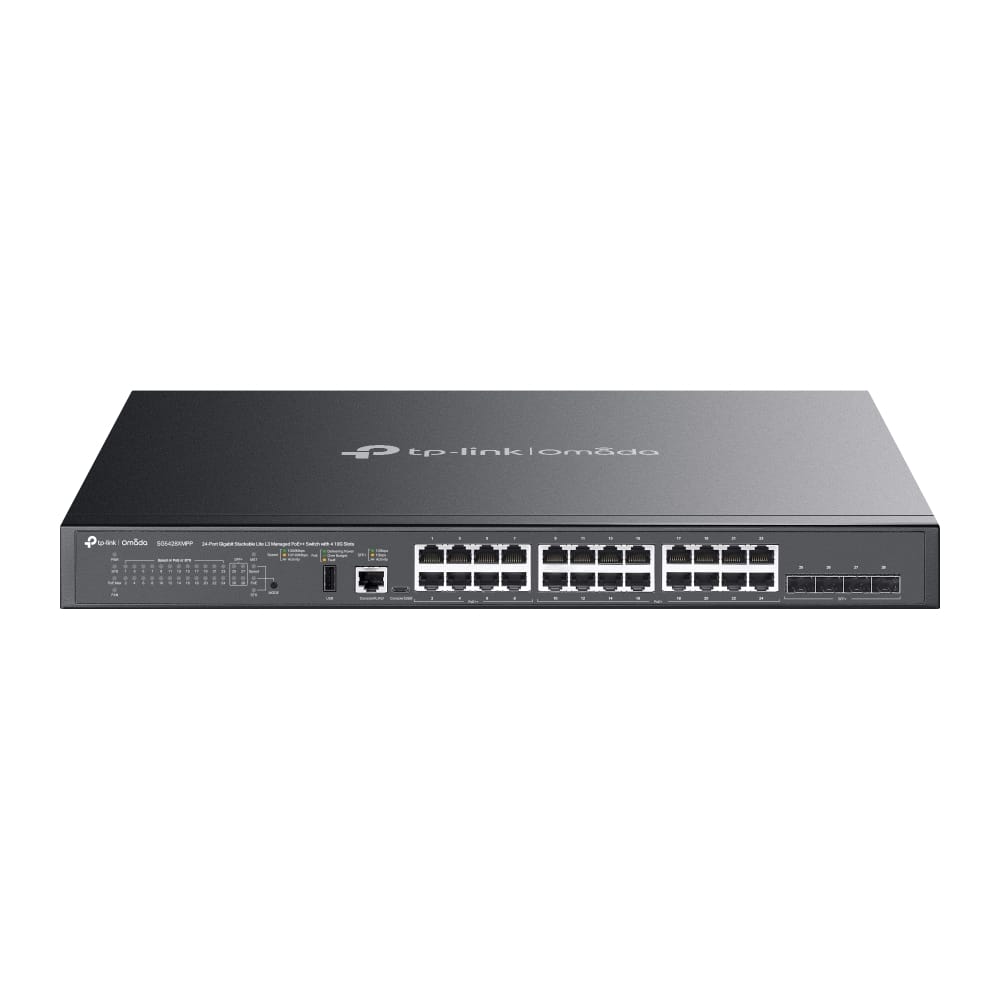

TP-Link SG5428XMPP Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Cloud-managed
ARP inspection

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	24
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
USB Type-C ports quantity	1
Console port	RJ-45
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Link aggregation
Broadcast storm control
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Voice VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN
Number of VLANs	4000

Data transmission
Switching capacity The data transfer capacity of the switch per second.	128 Gbit/s
Forwarding rate	95.23 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Store-and-forward
Jumbo frames support
Jumbo frames	9000
Packet buffer memory	12 MB

Security
DHCP features	DHCP relay, DHCP server
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SNMP, SNMPv2, SNMPv3
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Static port security
SSH/SSL support
IP-MAC-Port binding
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.

Multicast features
Multicast support

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	3 fan(s)

Performance
Physical stacking (units)	4
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	ARM
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1200 MHz
Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM).	DRAM
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	2000 MB
Flash memory	512 MB
Firmware upgradeable
Telnet
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	292.83 h

Power
Power source What is providing power for the product e.g. mains electricity.	AC/PoE
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max) The maximum amount of power used by the device.	587.7 W
Surge protection
Surge protection voltage	6 kV

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	500 W

Other features
Management level	4
Bandwidth	64 Gbit/s

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-5 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	330 mm
Height The measurement of the product from head to foot or from base to top.	44 mm

Packaging content
Cables included	AC
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Rack mount kit

Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS, CE
