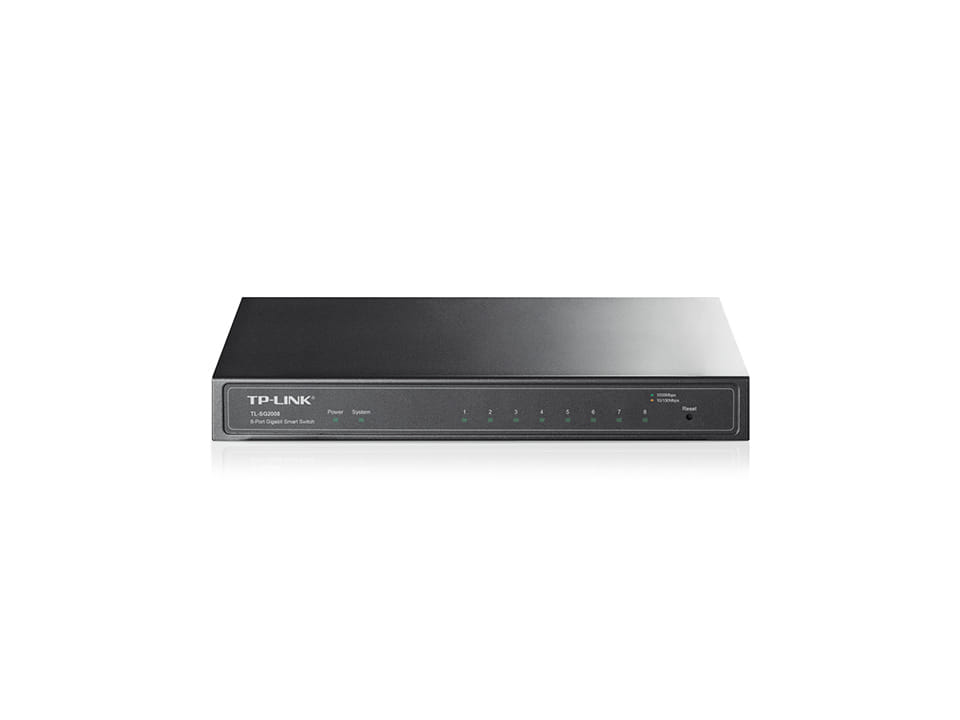

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
MIB support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Cable types supported	Cat3,Cat4,Cat5,Cat5e
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Voice VLAN
Number of VLANs	512

Data transmission
Switching capacity The data transfer capacity of the switch per second.	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Jumbo frames support
Jumbo frames	9216

Security
Access Control List (ACL)
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSH,SSH-2,SSL/TLS
SSH/SSL support

Multicast features
Multicast support

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators
Certification	CE, FCC, RoHS

Performance
Fanless

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	60 Hz
DC input voltage	12 V
Input current	1 A
Power consumption (max) The maximum amount of power used by the device.	6.42 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	209 mm
Depth The distance from the front to the back of something.	126 mm
Height The measurement of the product from head to foot or from base to top.	26 mm

Packaging data
Cables included	AC
User guide
