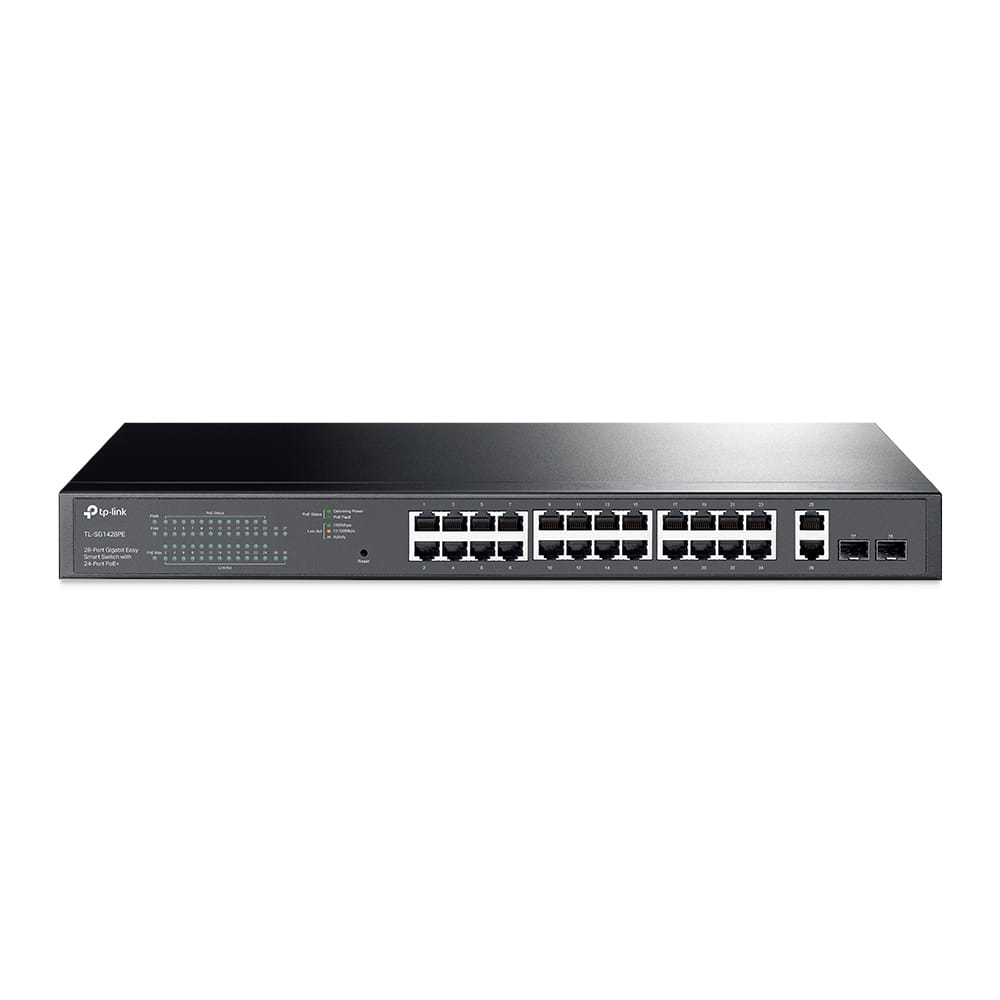

TP-LINK TL-SG1428PE, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24- gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Easy to Use
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Factors Guarantee Stable Operation
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports power to ensure high-priority ports power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0"50,
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24- gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Easy to Use
Value-Added Features Bring Unexpected Experiences
QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Factors Guarantee Stable Operation
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports power to ensure high-priority ports power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0"50,
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 26 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Port mirroring |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN,Tagged VLAN |
| Number of VLANs | 32 |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8 entries |
| Store-and-forward |
|
| Number of queues | 4 |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Security | |
| IGMP snooping |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 304.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| Rack mount kit |
|
| SKU | 444938 |
| MPN | TL-SG1428PE |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
