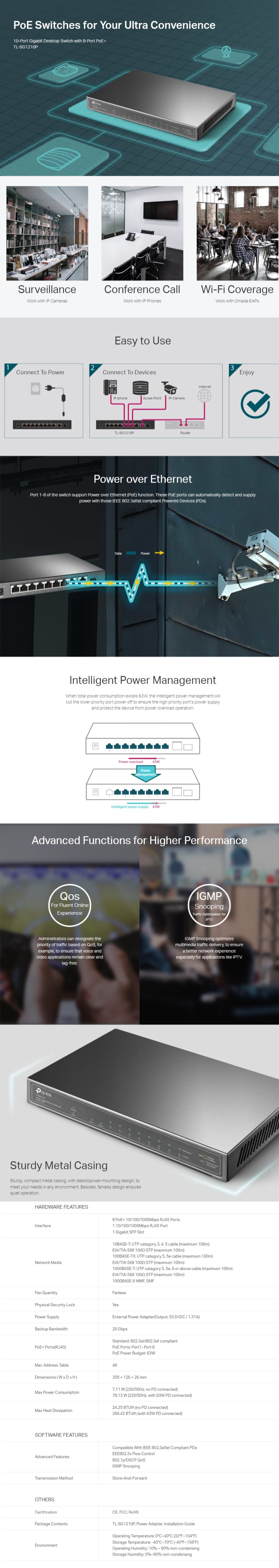

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch With 8-Port PoE+

Management features
Quality of Service (QoS) support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	9
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	9
SFP module slots quantity	1

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1p,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported

Optical fiber
Fiber ethernet cabling technology	1000BASE-X
Fiber type	Single-mode

Data transmission
Switching capacity The data transfer capacity of the switch per second.	20 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	4000 entries
Store-and-forward

Security
IGMP snooping

Design
Product colour The colour e.g. red, blue, green, black, white.	Gray
Housing material What the casing of the product is made of.	Metal
LED indicators
Wall mountable The product can be mounted on (attached to ) a wall.
Certification	CE, FCC, RoHS

Performance
Fanless

Power
Power supply included There is a power supply with this product.
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	7.11 W
Power consumption (max) The maximum amount of power used by the device.	78.13 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation The heat generated by the power supply.	266.42 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	209 mm
Depth The distance from the front to the back of something.	126 mm
Height The measurement of the product from head to foot or from base to top.	26 mm

Packaging data
Cables included	AC
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
User guide
Manual
