Auto Negotiation, Auto MDI/MDIX, IEEE 802.3x flow control, 16K Jumbo frame, QoS, IGMP Snooping, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, Store-And-Forward transmission

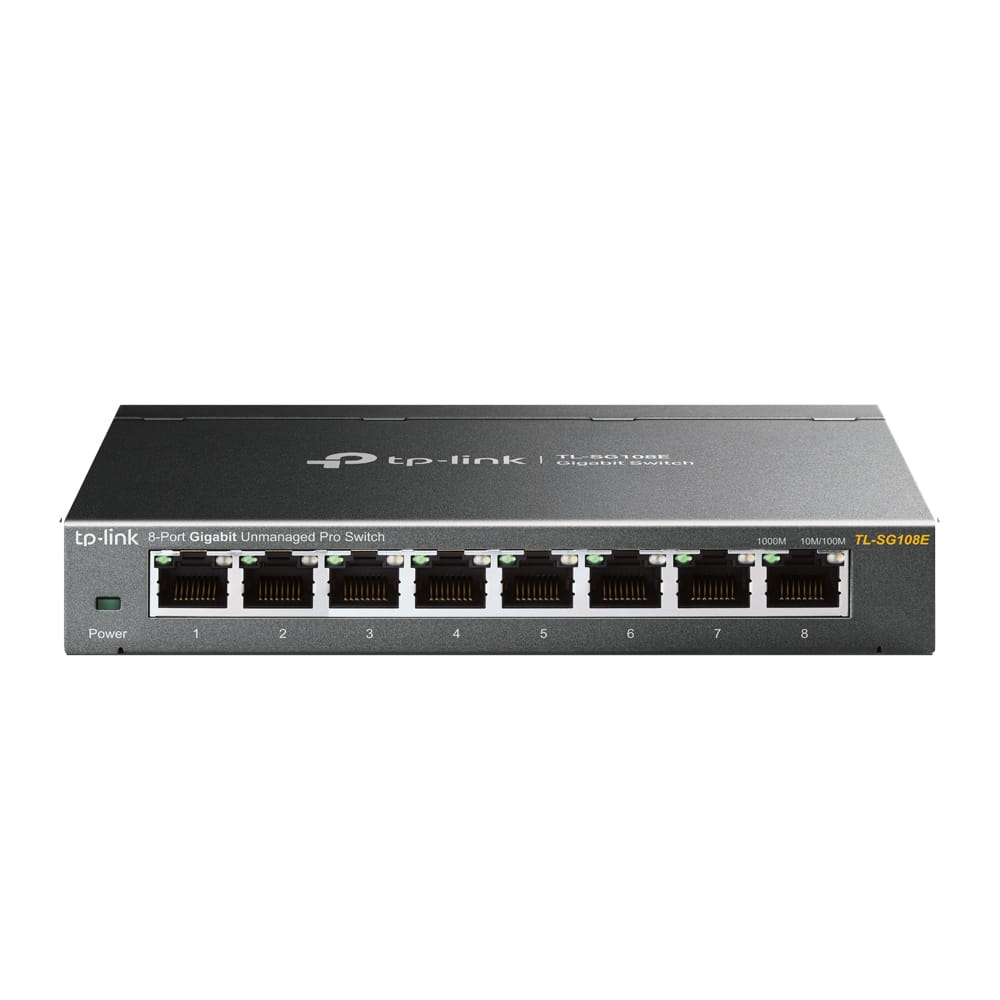

TP-Link SG108E,8Port Gigabit Switch
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Port mirroring |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Number of VLANs | 32 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 16 Gbit/s |
| Throughput | 11.9 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4000 entries |
| Store-and-forward |
|
| Number of queues | 4 |
| Jumbo frames support |
|
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| IGMP snooping |
|
| Multicast features | |
| Number of multicast groups filtered | 128 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 12.55 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 158 mm |
| Depth The distance from the front to the back of something. | 101 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 217945 |
| MPN | TL-SG108E |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Product Use | Business |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
