24 Port 10/100/1000Mbps RJ45

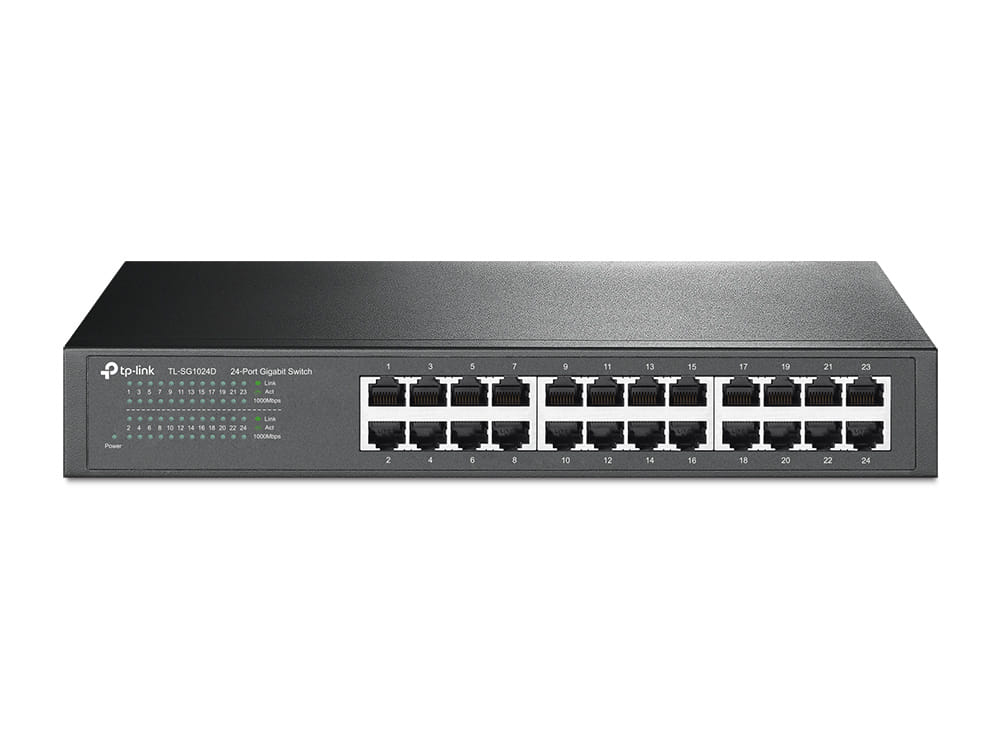

24-Port Gigabit Desktop/Rackmount Switch
TL-SG1024D
Innovative energy-efficient technology saves power up to 25%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 48Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Desktop and Rack-mountable design
- Plug and Play design simplifies installation
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 14.6W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| Green Technology | Innovative energy-efficient technology saves power up to 25% |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 24-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 10000 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | CSMA/CD, TCP/IP |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Gray |
| LED indicators |
|
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 13.08 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 44.63 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 294 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| Package type The type of product package e.g. box. | Box |
| Rack mount kit |
|
| SKU | 217910 |
| MPN | TL-SG1024D |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
