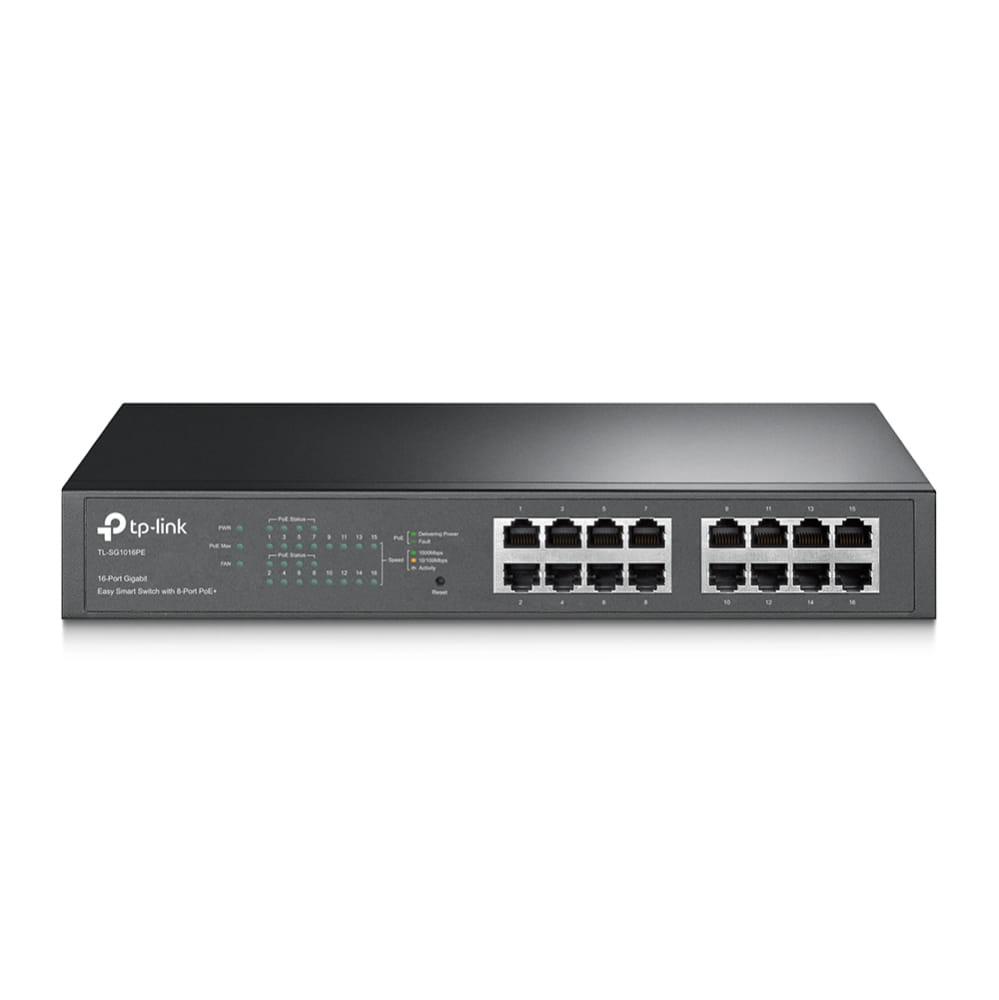

Gigabit Smart Switch with 8 Port PoE+
TP-Link TL-SG1016PE 16 Port - 16x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX - PoE Ports: Port 1 to Port 8, PoE Power Budget: 110W - Switching Capacity: 32Gbps - Packet Forwarding Rate: 23.8Mbps - 3 Years Limited Warranty
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 16 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN,Tagged VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 32 Gbit/s |
| Throughput | 23.8 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Number of queues | 4 |
| Jumbo frames support |
|
| Jumbo frames | 1000 |
| Security | |
| IGMP snooping |
|
| Static port security |
|
| Loop protection |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 124.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 110 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 294 mm |
| Depth The distance from the front to the back of something. | 180 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| Cables included | AC |
| Rack mount kit |
|
| SKU | 224532 |
| MPN | TL-SG1016PE |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Product Use | Business |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
