What This Product Does

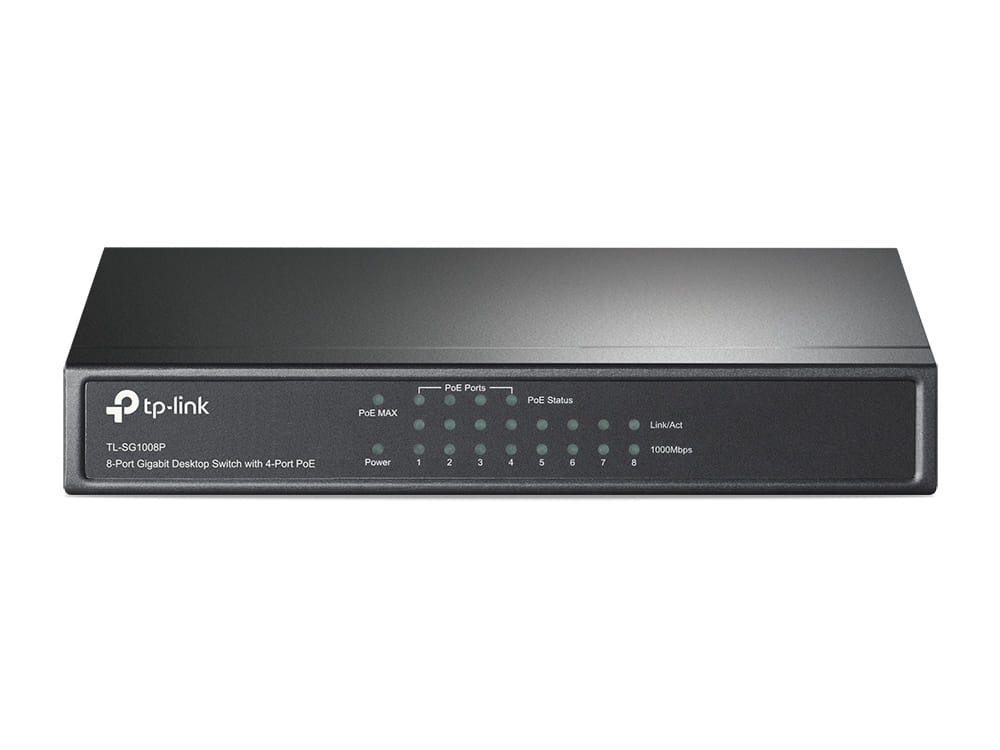

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
*Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
| HARDWARE FEATURES | |
| Interface | 8 10/100/1000Mbps RJ45 Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant |
| Backbound Bandwidth | 16Gbps |
| Mac Address Table | 8K |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Dimensions (W X D X H) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Fan Quantity | Fanless |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs |
| OTHERS | |
| Certification | FCC, CE |
| Package Contents | TL-SG1008P, Power Adapter, User Guide |
| Consumption | 5.8 watts (max. no PD connected) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LuxCis |
| Compatible memory cards Types of memory cards which can be used with this product. | MMC Mobile |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11j |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 100BASE-T |
| Cable types supported | Cat6a |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Virtual LAN features | IP subnet–based VLAN |
| VLAN mapping type | 2:2 VLAN Mapping |
| Optical fiber | |
| Fiber ethernet cabling technology | 40GBASE-LR4 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 16 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4800 entries |
| Store-and-forward |
|
| Security | |
| DHCP features | DHCPv6 client |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS |
| Authentication | Auto VLAN |
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | HWTACACS |
| Queue scheduling algorithms | SP |
| MAC address entries | Blackhole MAC address entries |
| Protocols | |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv6 Telnet |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Hazelnut |
| Housing material What the casing of the product is made of. | Polymer |
| LED indicators | Error |
| Airflow direction | Back-to-front airflow |
| Energy Star certified This indicates that the product is compliant with Energy Star, which is an international standard for energy-efficient consumer products. |
|
| Certification | CE, FCC, RoHS |
| Power | |
| Power supply included There is a power supply with this product. |
|
| Number of power supply units | 1 |
| DC input voltage | 48 V |
| Input current | 1.25 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 53 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 171 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 27 mm |
| Packaging data | |
| Cables included | AC |
| User guide |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 217868 |
| MPN | TL-SG1008P |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
