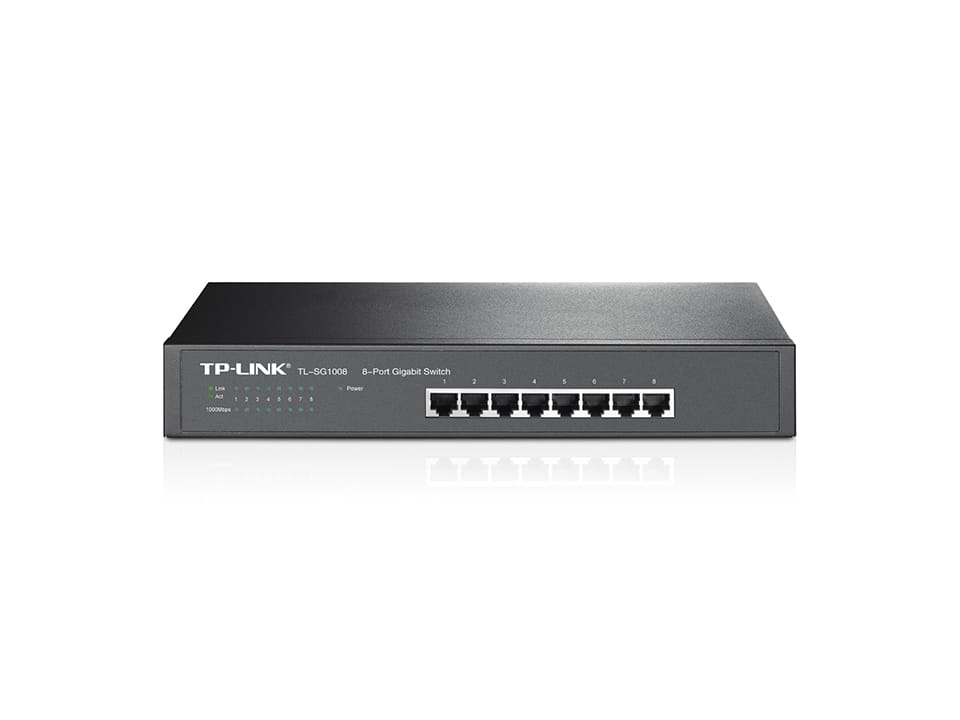

TP-Link TL-SG1008 8-Port Gigabit Switch

Item No:
217854
MPN:
TL-SG1008
$84.00

TP-Link TL-SG1008 8-Port Gigabit Switch

$84.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our warehouse in 2-3 business days
Store Availability
  • In Stock at Bankstown
  • In Stock at Blacktown
  • In Stock at Castle Hill
Shipping Estimate
8 x RJ45 Ports, Standard Rackmount Steel Case, Supports IEEE 802.3x flow control, Plug and Play design

TP-Link SG1008 8-Port Gigabit Switch

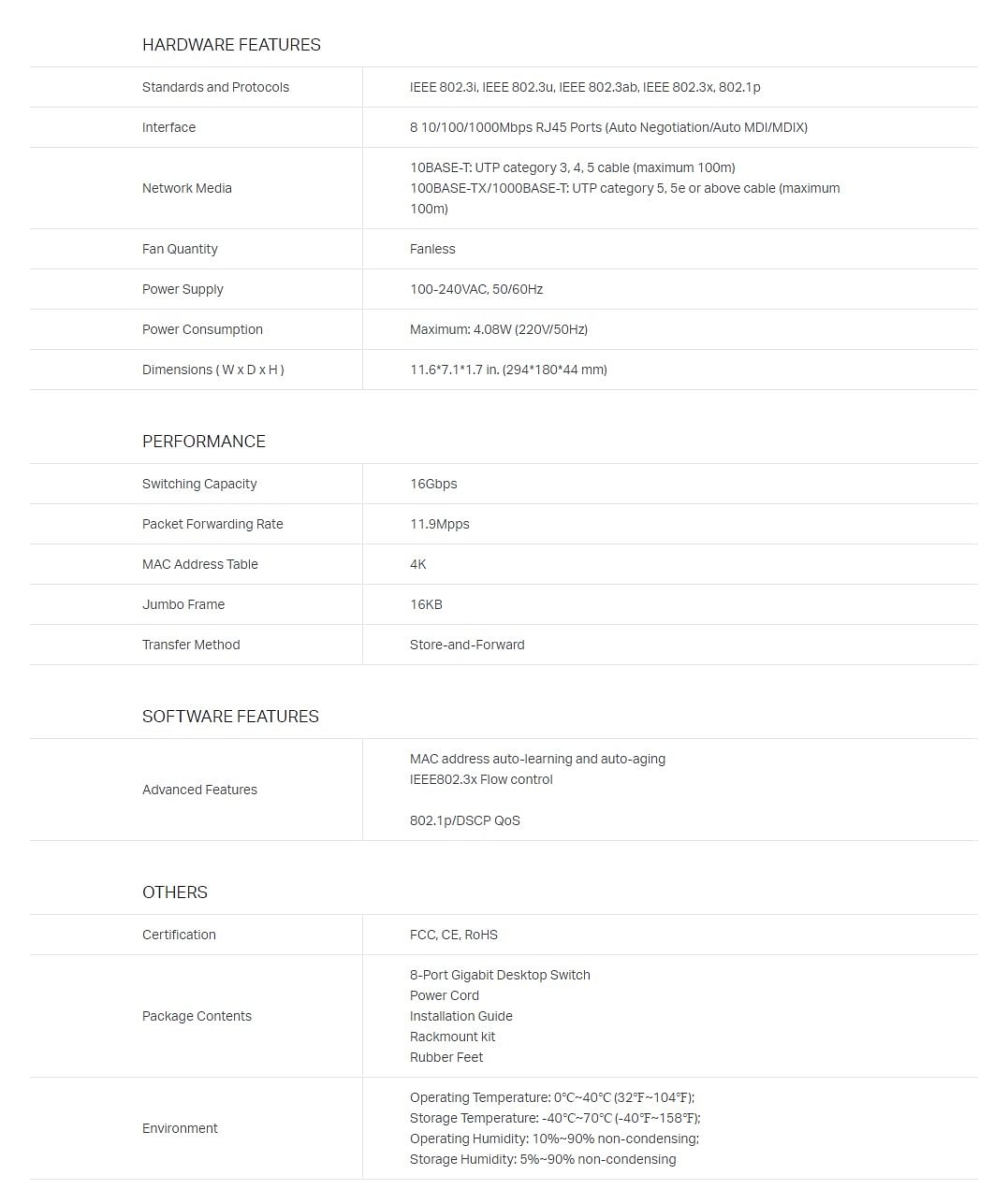

Management features
Switch type What switch device has, managed or unmanaged. Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Data transmission
Switching capacity The data transfer capacity of the switch per second. 16 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 4000 entries
Store-and-forward
Jumbo frames support
Jumbo frames 16000
Protocols
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. CSMA/CD, TCP/IP
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white. Black
LED indicators
Power
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 4.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation The heat generated by the power supply. 14.67 BTU/h
Weight & dimensions
Width The measurement or extent of something from side to side. 294 mm
Depth The distance from the front to the back of something. 180 mm
Height The measurement of the product from head to foot or from base to top. 44 mm
Packaging data
Cables included AC
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Package type The type of product package e.g. box. Box
More Information
SKU 217854
MPN TL-SG1008
Brand TP-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping, In Stock at Bankstown, In Stock at Blacktown, In Stock at Castle Hill
Product Use Business
Warranty Period 3 Years Warranty
Warranty Contact https://www.tp-link.com/
