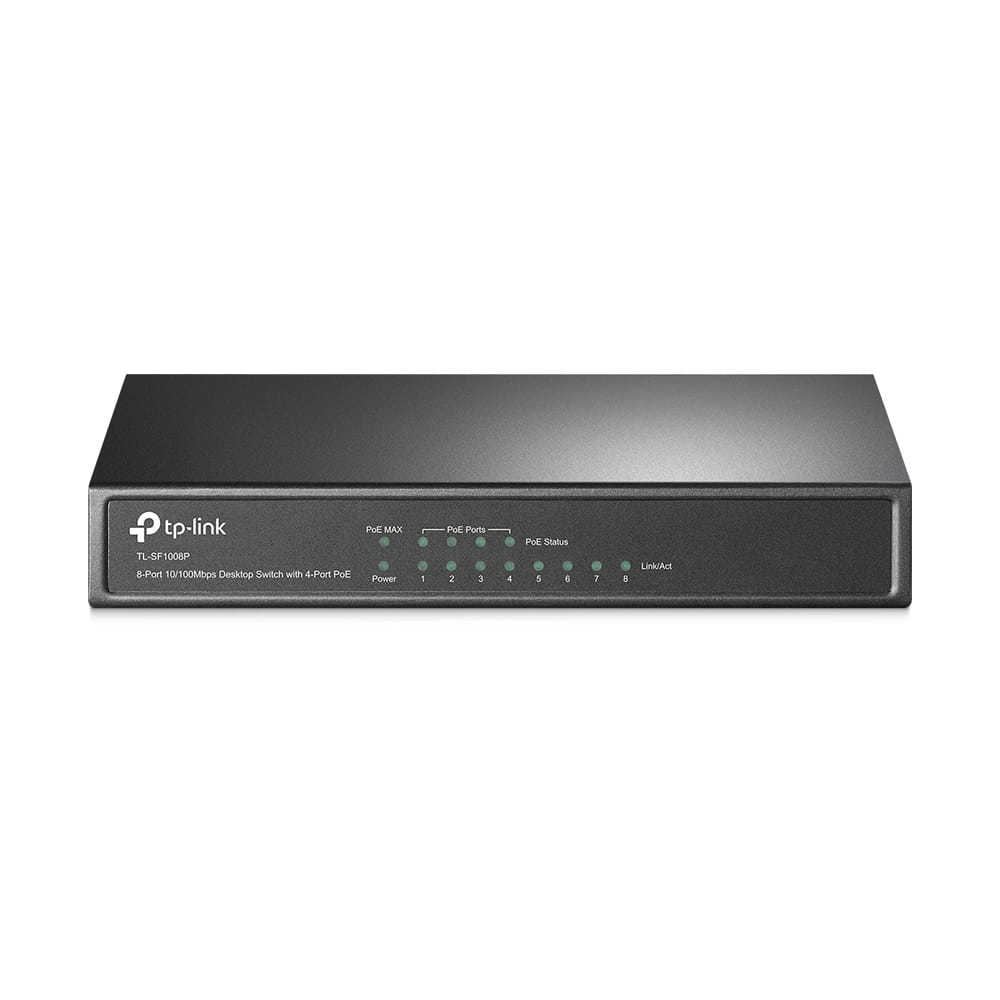

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch With 4-Port PoE

Item No:
217833
MPN:
TL-SF1008P
$79.00

TP-Link TL-SF1008P 8-Port 10/100Mbps Desktop Switch With 4-Port PoE

$79.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 1-2 business days
Store Availability
  • 2-3 business days at Bankstown
  • 2-3 business days at Blacktown
  • 2-3 business days at Castle Hill
Shipping Estimate
with 4-Port PoE


What This Product Does

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to ­fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

-Overload ArrangementTL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port. -Port Priority FunctionPriority (port-1=port-2=port-3>port-4):  This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use

TL-SF1008P is easy to install and use. It requires no confi­guration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch is an ideal choice for expanding your home or office network.

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 57W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • External power adapter supply

HARDWARE FEATURES
Interface8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45)Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth1.6Gbps
Mac Address Table2K
External Power SupplyExternal Power Adapter(Output: 48VDC / 1.25A)
Dimensions (W X D X H)6.7*3.9*1.1 in. (171*98*27 mm)
Fan QuantityFanless
Power ConsumptionMaximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
SOFTWARE FEATURES
Transmission MethodStore-And-Forward
Advanced FunctionsCompatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SF1008P, Power Adapter, User Guide
Consumption2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Management features
Switch type What switch device has, managed or unmanaged. Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Fast Ethernet (10/100)
Power connector DC-in jack
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1Qbb
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 5000 Mbit/s
MAC address auto-learning supported
MAC address auto-aging supported
Optical fiber
Fiber ethernet cabling technology 40GBASE-SR4
Data transmission
Switching capacity The data transfer capacity of the switch per second. 1.6 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 2000 entries
Store-and-forward
Security
DHCP features DHCPv6 relay
Access Control List (ACL)
Protocols
GARP VLAN Registration Protocol (GVRP)
Routing protocols OSPF
IPv4 & IPv6 features IPv6 portal
Design
Product colour The colour e.g. red, blue, green, black, white. Olive
LED indicators
Certification FCC, CE, RoHS
Performance
Expansion module support
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor. Broadcom
Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). DRAM
Power
DC input voltage 48 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity 4
Total Power over Ethernet (PoE) budget 60.2 W
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width The measurement or extent of something from side to side. 171 mm
Depth The distance from the front to the back of something. 98 mm
Height The measurement of the product from head to foot or from base to top. 27 mm
Packaging data
User guide
Package type The type of product package e.g. box. Box
More Information
SKU 217833
MPN TL-SF1008P
Brand TP-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period 5 Years Warranty
Warranty Contact https://www.tp-link.com/
