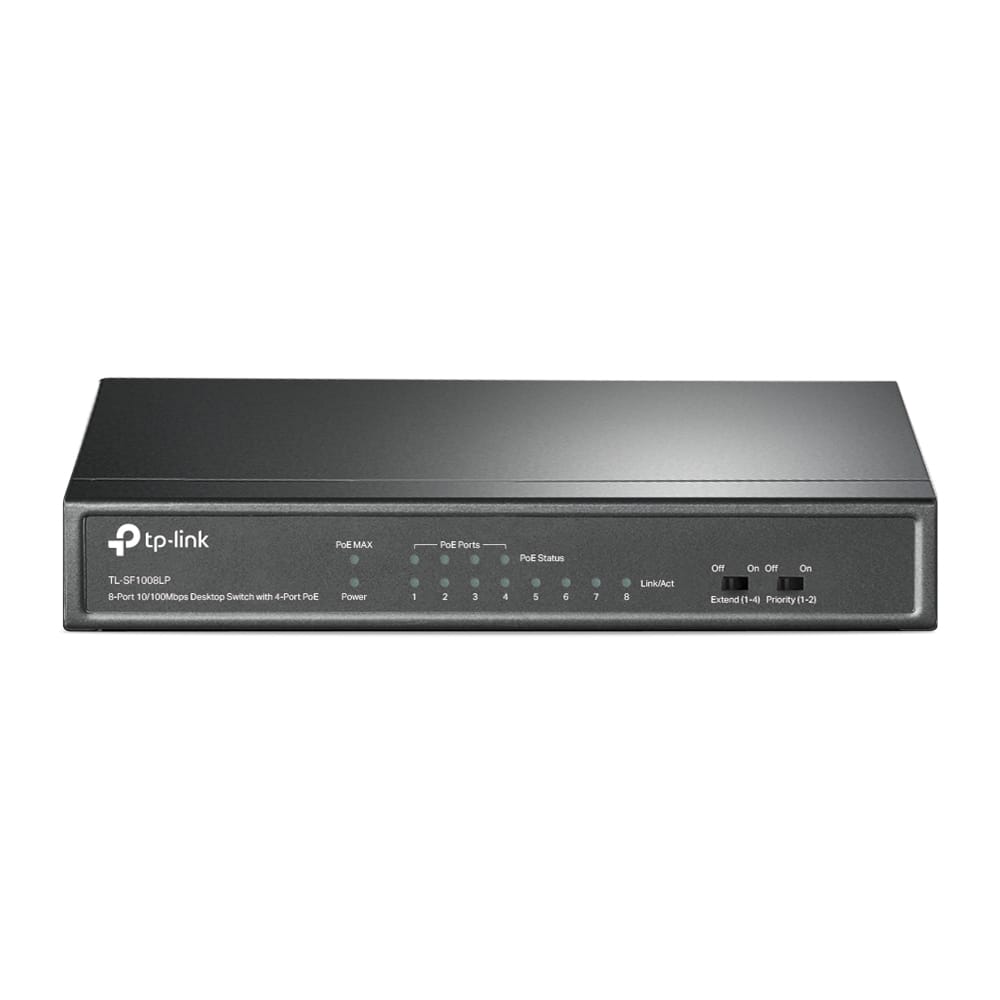

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch With 4-Port PoE

Management features
Switch type What switch device has, managed or unmanaged.	Unmanaged

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Fast Ethernet (10/100)
Power connector	DC-in jack

Network
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
MAC address auto-learning supported
MAC address auto-aging supported

Data transmission
Switching capacity The data transfer capacity of the switch per second.	1.6 Gbit/s
Forwarding rate	11904 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	2000 entries
Store-and-forward

Security
DHCP features	DHCPv6 relay

Protocols
GARP VLAN Registration Protocol (GVRP)
Routing protocols	OSPF
IPv4 & IPv6 features	IPv6 portal

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators
Certification	FCC, CE, RoHS

Performance
Fanless

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	220 V
AC input frequency	50 Hz
DC input voltage	53.5 V
Input current	0.81 A

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	41 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation The heat generated by the power supply.	160.61 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	171 mm
Depth The distance from the front to the back of something.	98 mm
Height The measurement of the product from head to foot or from base to top.	27 mm

Packaging data
Cables included	AC
User guide
