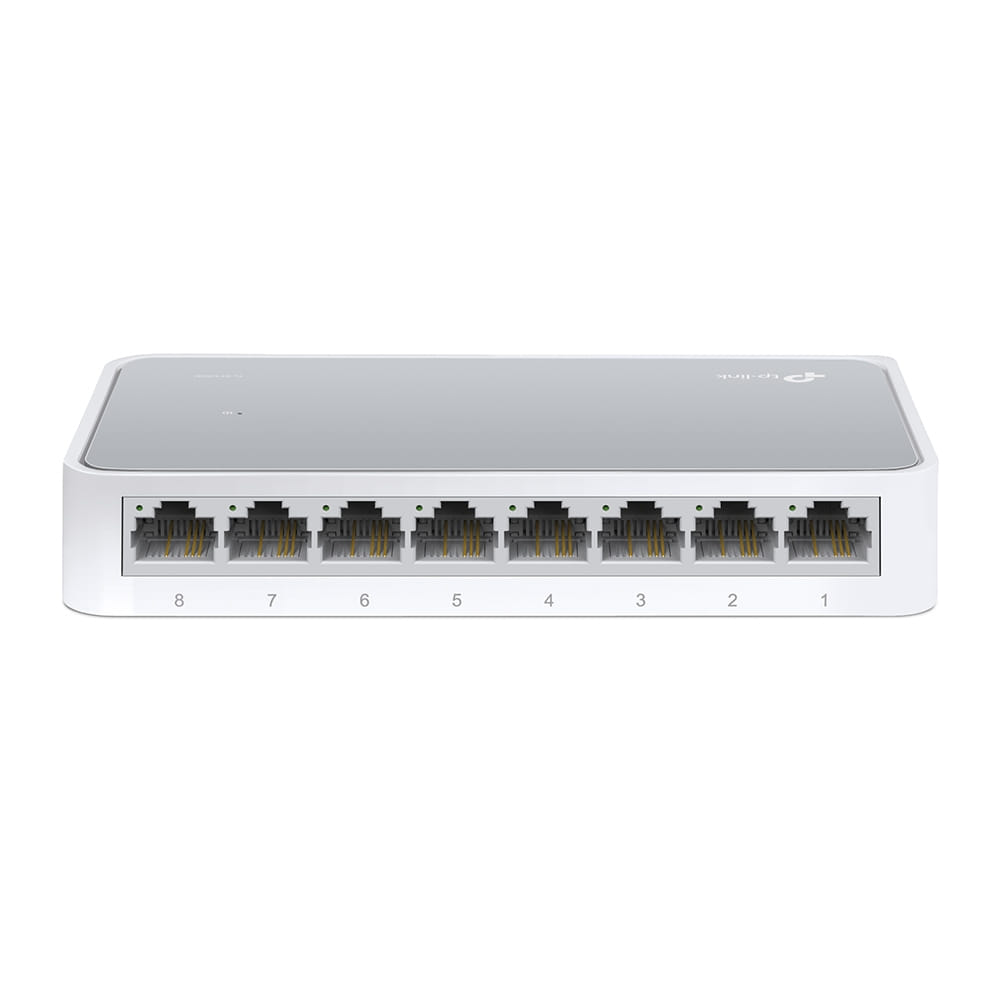

8 port 10/100M lan switch, used for middle and small office and home networking. Adopts store-and-forwarding technology together with dynamic memory allocation, to guarantee data can be transmitted to every port efficiently. Data Flow control ensure against possible packet loss. Supports auto-negotiation of half or full-duplex transfer modes for each port, supports automatic MDI/MDIX detection providing true plug and play capacity without the need for confusing crossover cables or crossover ports for networking to expand easily. LED indicator indicate the status of power, corrosion, speed, and half/full duplex mode |
- 8 10/100M RJ-45 port
- 10/100M auto-negotiation, maximum speed to 20/200M (full-duplex)
- Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
- Supports MAC self-learning
- Dynamic LED indicators
- Plastic mini construction case
- Standards IEEE802.3 10Base-T，IEEE802.3u 100Base-TX
- Protocol CSMA/CD
- Topology Star
- RJ-45 8
- Uplink 1
- Switching mode Store-and-Forward
- Filtering and Transmitting speed 10Mbps: 14880pps, 100Mbps: 148800pps
- Flow control mode IEEE 802.3x full-duplex flow control and back pressure flow control
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3u,IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Flow control support |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1.6 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 1000 entries |
| Store-and-forward |
|
| Packet buffer memory | 2 MB |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | CSMA/CD, TCP/IP |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Certification | FCC, CE, RoHS |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 2.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 217826 |
| MPN | TL-SF1008D |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
