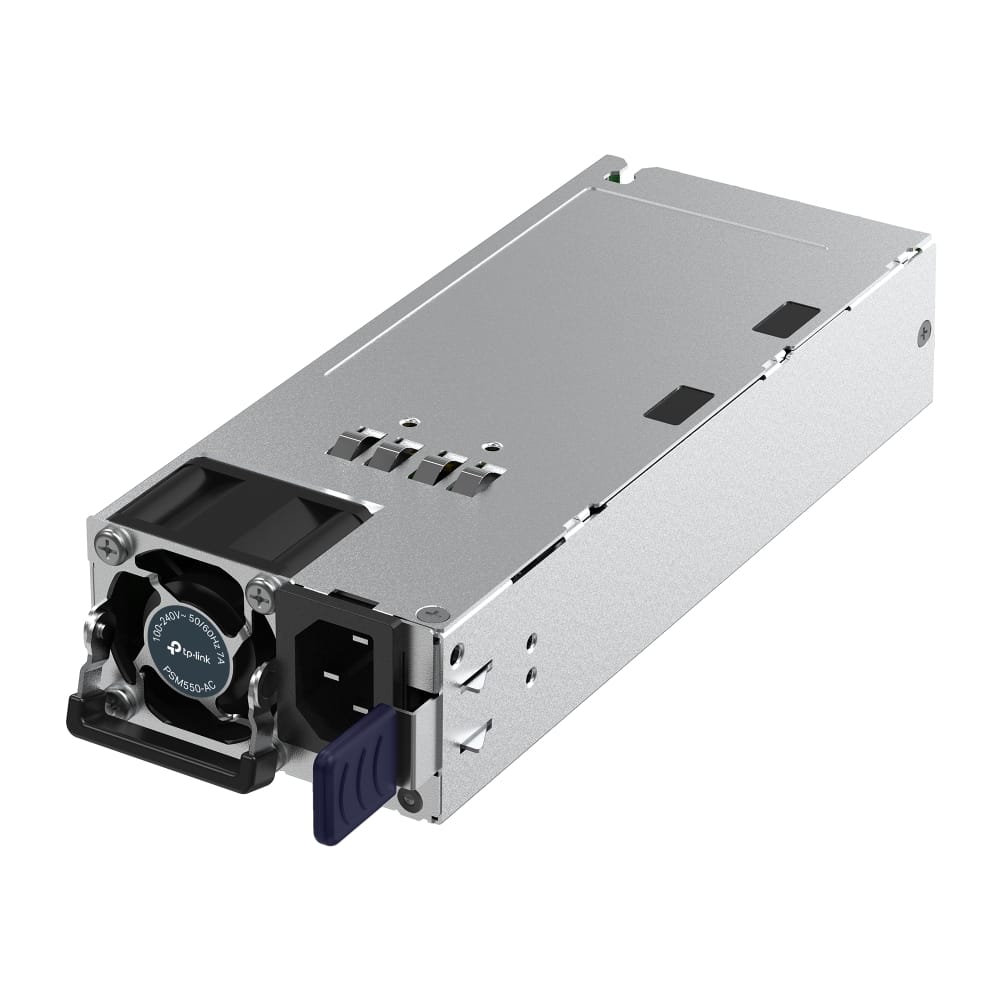

Up to 550 watts output power; 12 V DC output voltage; Fully hot-swappable, ensuring no system interruption during installation or replacement; Output over-voltage/over-current/short circuit/over-temperature protection; Suitable for SX6632YF, S7500-26XF6Y
| Features | |
| Purpose What the product is used for. | Network switch |
| Power supply type The type of power supply which this product uses. | Indoor |
| Power current type | AC-to-DC |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Input current | 7 A |
| Output power The power that the device can produce. | 550 W |
| Output voltage | 12 V |
| Output current | 45 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over voltage, Overheating, Short circuit |
| Compatibility The other products, software and hardware this product can be used with. | TP-Link SX6632YF, S7500-26XF6Y |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Metallic |
| Housing material What the casing of the product is made of. | Metal |
| Suitable for indoor use |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 185 mm |
| Depth The distance from the front to the back of something. | 73.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 40 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 785012 |
| MPN | PSM550-AC |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| PSU Form Factor | Redundant |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
