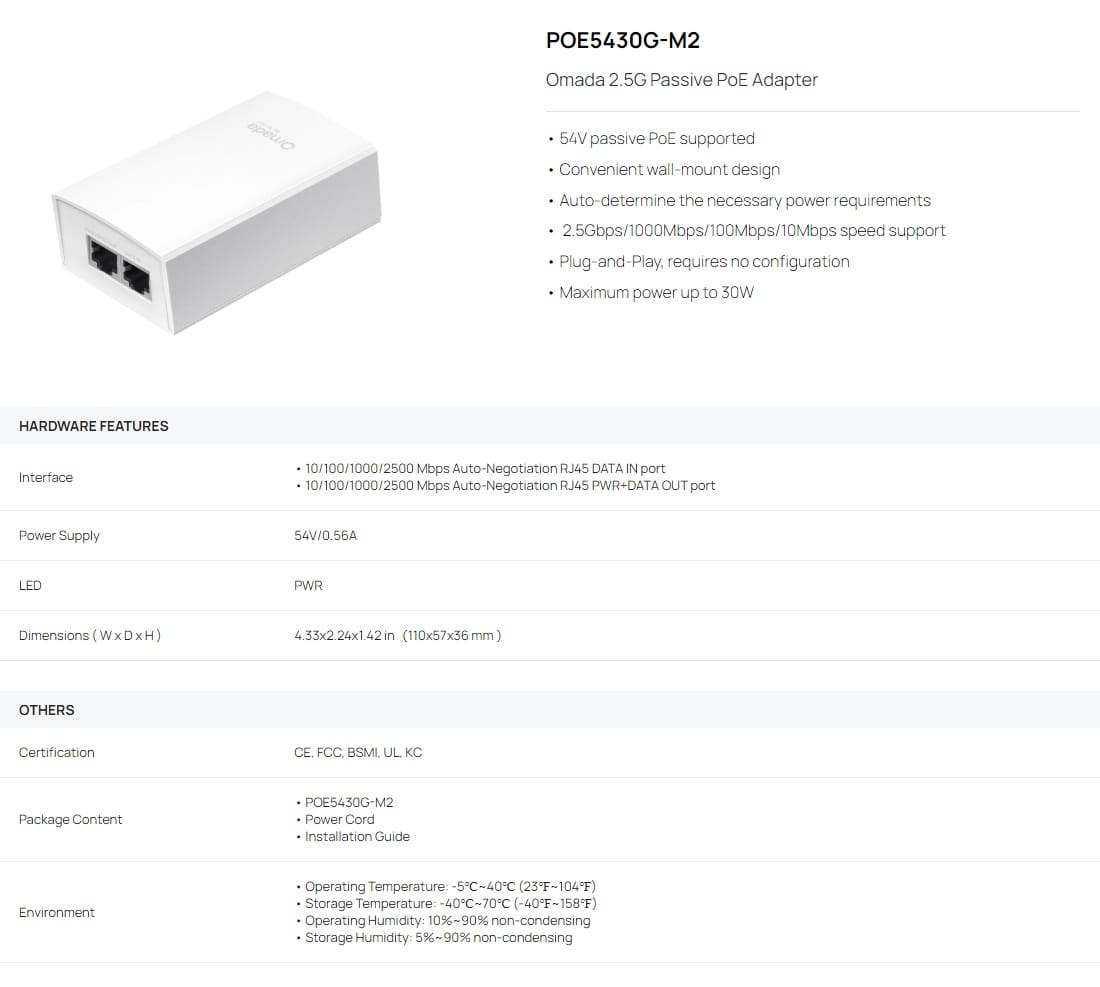

54V passive PoE supported; Convenient wall-mount design; Auto-determine the necessary power requirements; 2.5Gbps/1000Mbps/100Mbps/10Mbps speed support; Plug-and-Play, requires no configuration; Maximum power up to 30W
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Wall mountable The product can be mounted on (attached to ) a wall. |
 |
| Easy to install |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators | Power |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 54 V |
| Output power The power that the device can produce. | 30 W |
| Input current | 0.56 A |
| Certificates | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, UL |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 5 - 90 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 57 mm |
| Depth The distance from the front to the back of something. | 110 mm |
| Height The measurement of the product from head to foot or from base to top. | 36 mm |
| Packaging content | |
| Power cord included |
|
| Quick installation guide |
|
| SKU | 819137 |
| MPN | POE5430G-M2 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
