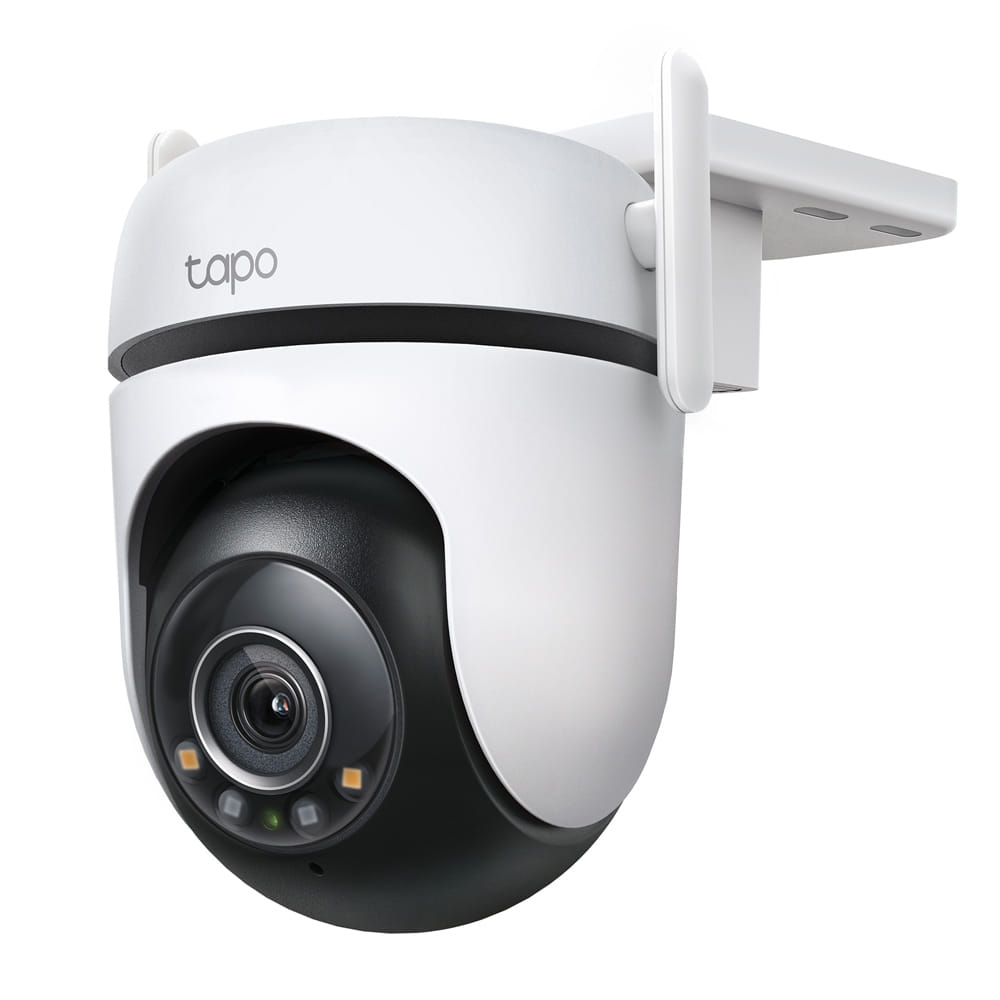

TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera, IP security camera, Indoor & outdoor, Wireless, CE, FCC, RoHS, RCM, Ceiling, Black, White
Smart. Secure. Easy.
All-Round Protection with Vivid Colors
Outdoor Pan/Tilt Security Wi-Fi Camera
Brighter than Full-Color
TapoC520WS renders brighter images than other full-color night vision cameras with spotlights on due to its starlight sensor.
2K QHD Crystal Clear View
Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.
Multiple AI Detection, All for Free
Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.
Customize Your Detection
Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customized points.
Reliable Networking, Flexible Connection
Dual powerful external antennas provides larger wireless coverage(up to 492 ft in open areas*) and more stable connection. You can also connect you're your camera to the network through the RJ45 Ethernet port.
Secure Local & Cloud Storage
Save recorded videos to a microSD card (up to 512 GB) or by using Tapo Care cloud services.
Enjoy 24/7 continuous recording and playback with a microSD card (up to 512 GB, equals to 680 hours of 2K QHD footage).
Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care cloud services.
IP66 Weatherproof
Offers excellent waterproof and dustproof performance for outdoor scenarios.
Smart Motion Tracking
Tracks motion with high-speed rotation to keep the object within the camera's view.
Two-Way Audio
Communicate directly with the outdoors for your convenience.
Multiple Installation Options
Use the mounting screws, template and loops to install on any wall, ceiling or pole for the perfect view-wherever you want.
Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.
Voice Activated
Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported.
All-Round Protection with Vivid Colors
Outdoor Pan/Tilt Security Wi-Fi Camera
Brighter than Full-Color
TapoC520WS renders brighter images than other full-color night vision cameras with spotlights on due to its starlight sensor.
2K QHD Crystal Clear View
Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.
Multiple AI Detection, All for Free
Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.
Customize Your Detection
Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customized points.
Reliable Networking, Flexible Connection
Dual powerful external antennas provides larger wireless coverage(up to 492 ft in open areas*) and more stable connection. You can also connect you're your camera to the network through the RJ45 Ethernet port.
Secure Local & Cloud Storage
Save recorded videos to a microSD card (up to 512 GB) or by using Tapo Care cloud services.
Enjoy 24/7 continuous recording and playback with a microSD card (up to 512 GB, equals to 680 hours of 2K QHD footage).
Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care cloud services.
IP66 Weatherproof
Offers excellent waterproof and dustproof performance for outdoor scenarios.
Smart Motion Tracking
Tracks motion with high-speed rotation to keep the object within the camera's view.
Two-Way Audio
Communicate directly with the outdoors for your convenience.
Multiple Installation Options
Use the mounting screws, template and loops to install on any wall, ceiling or pole for the perfect view-wherever you want.
Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.
Voice Activated
Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Auto-tracking |
 |
| Certification | CE, FCC, RoHS, RCM |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Camera | |
| Lens viewing angle, horizontal | 360° |
| Lens viewing angle, vertical | 130° |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 3 mm (1 / 3") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Maximum aperture number | 1.61 |
| Fixed focal length | 3.18 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 2560 x 1440 |
| Frame rate | 30 fps |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Channel bandwidth | 2400 MHz |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 512 GB |
| Ports & interfaces | |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES, WPA-PSK, WPA2-PSK |
| Management features | |
| Reset button |
|
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3.75 W |
| Power consumption (max) The maximum amount of power used by the device. | 7.65 W |
| DC output voltage | 9 |
| DC output current | 0.85 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 123.8 mm |
| Depth The distance from the front to the back of something. | 123 mm |
| Height The measurement of the product from head to foot or from base to top. | 90 mm |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| Mounting brackets included |
|
| Screws included |
|
| Manual |
|
| SKU | 819811 |
| MPN | Tapo C520WS |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
