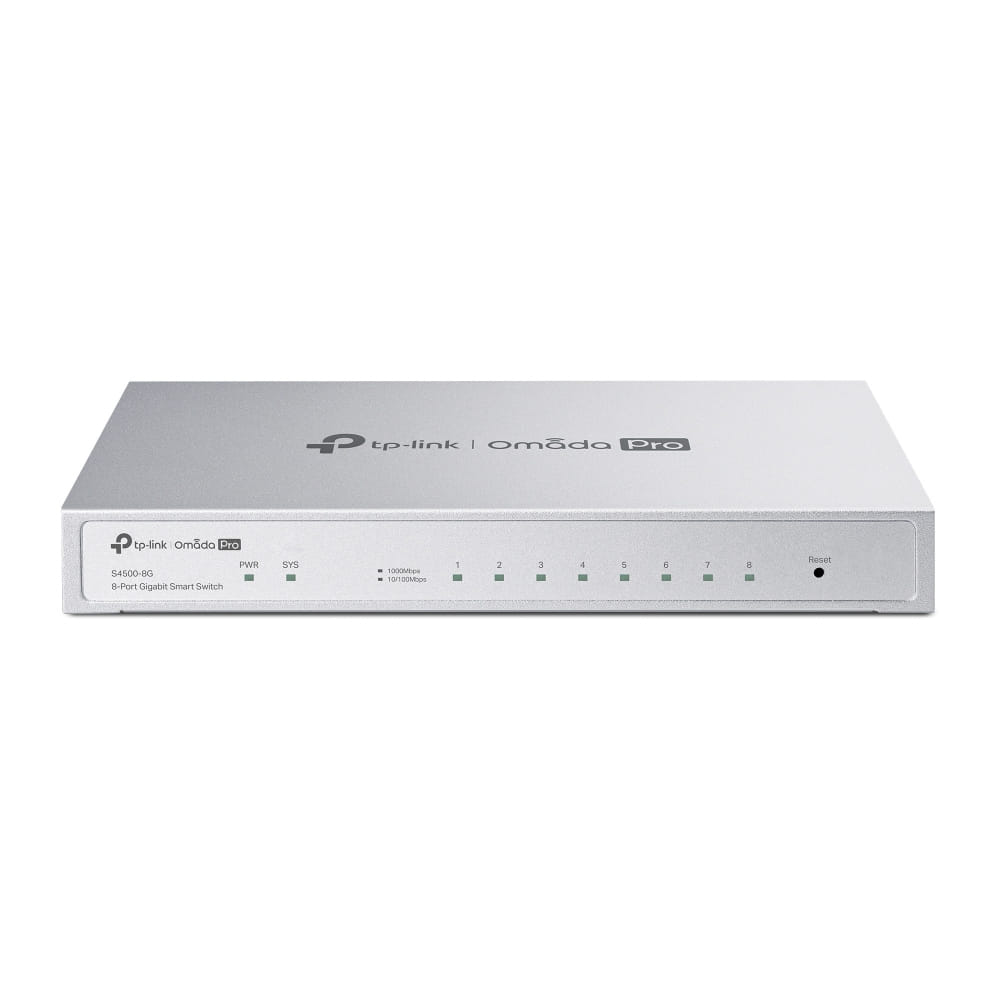

TP-Link Omada Pro 8-Port Gigabit Smart Switch, Managed, L2/L2+, Gigabit Ethernet (10/100/1000)
What This Product Does
S4500-8G is an enterprise-level switch equipped with eight RJ45 ports (10/100/1000 Mbps). High-performance static routing, enterprise-level QoS, advanced security features, a selection of Layer 2 management options, and integration into the Omada Pro SDN (Software-Defined Networking) make S4500-8G an excellent choice for the access layer of business networking.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.
In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission-even when bandwidth is in short supply.
Abundant L2 and L2+ Features
S4500-8G supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.* Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.
Apart from the ability to be centrally managed via Omada Pro controllers, S4500-8G simplifies management via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
S4500-8G is an enterprise-level switch equipped with eight RJ45 ports (10/100/1000 Mbps). High-performance static routing, enterprise-level QoS, advanced security features, a selection of Layer 2 management options, and integration into the Omada Pro SDN (Software-Defined Networking) make S4500-8G an excellent choice for the access layer of business networking.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.
In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission-even when bandwidth is in short supply.
Abundant L2 and L2+ Features
S4500-8G supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.* Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.
Apart from the ability to be centrally managed via Omada Pro controllers, S4500-8G simplifies management via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L2+ |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Traffic classification |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 100BASE-T, 1000BASE-T, 1000BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Spanning tree protocol |
|
| Active link detection |
|
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Number of queues | 8 |
| Static route |
|
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| SSH/SSL support |
|
| Loop protection |
|
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | RADIUS |
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Performance | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 32 MB |
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC/DC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 220 V |
| AC input frequency | 50 Hz |
| Input current | 1 A |
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Power consumption (max) The maximum amount of power used by the device. | 6.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 21.84 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 209 mm |
| Depth The distance from the front to the back of something. | 126 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Packaging content | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Sustainability | |
| Sustainability compliance |
|
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| SKU | 810969 |
| MPN | S4500-8G |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
