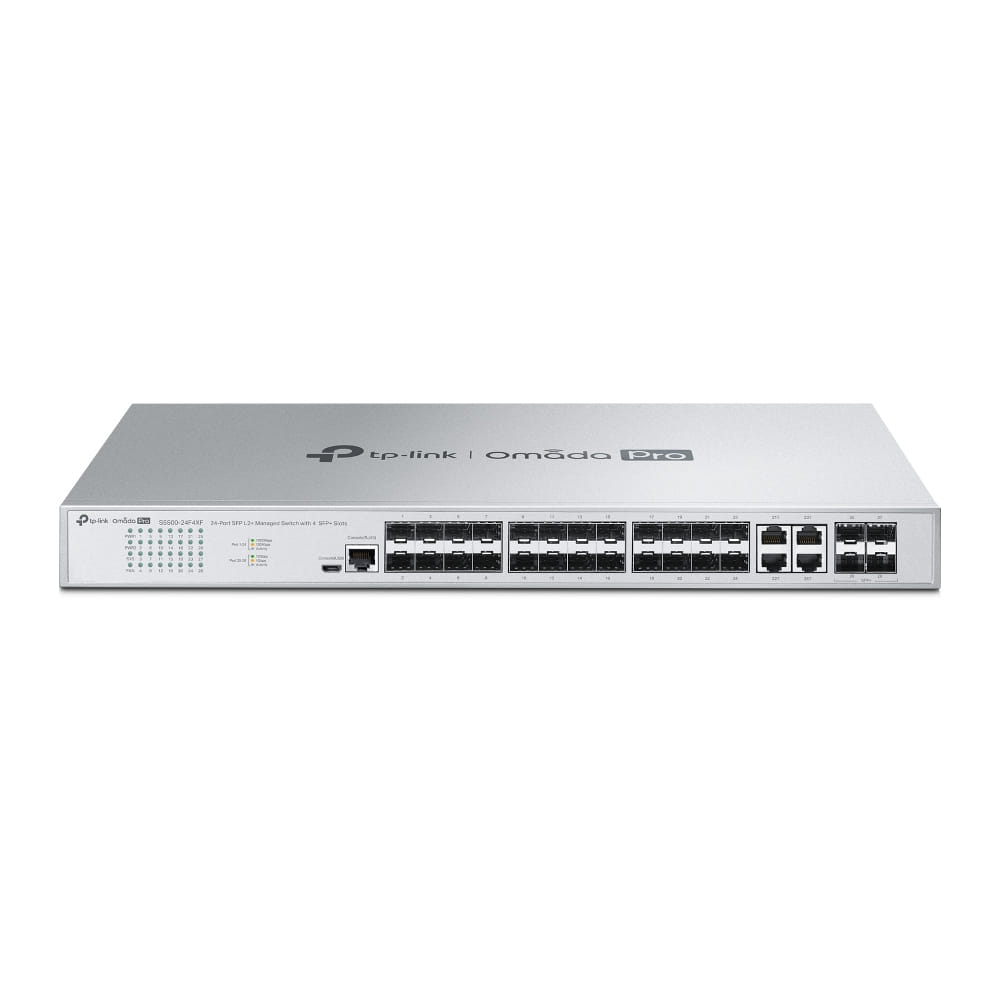

TP-Link Omada Pro 24-Port SFP L2+ Managed Switch With 4 SFP+
Item No:
810974
MPN:
S5500-24F4XF
$5,015.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
TP-Link Omada Pro 24-Port SFP L2+ Managed Switch with 4 SFP+ Slots, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Rack mounting
What This Product Does
Build and expand your lightning-fast network with Omada Pro S5500-24F4XF-a fully enterprise-level managed switch with 20 gigabit SFP ports, 4 gigabit SFP/RJ45 combo ports, and 4 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the need for high-speed, reliable, and safe enterprise networks. Two power supplies back each other up and makes an ideal choice for reliable networking architecture. An abundance of L2+ and L3 features including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs. Our high-quality security features defend against a range of network threats.
Besides, integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users
Build and expand your lightning-fast network with Omada Pro S5500-24F4XF-a fully enterprise-level managed switch with 20 gigabit SFP ports, 4 gigabit SFP/RJ45 combo ports, and 4 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the need for high-speed, reliable, and safe enterprise networks. Two power supplies back each other up and makes an ideal choice for reliable networking architecture. An abundance of L2+ and L3 features including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs. Our high-quality security features defend against a range of network threats.
Besides, integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L2+ |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Traffic classification |
|
| Configuring Location Settings (CLI) |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 20 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Spanning tree protocol |
|
| Active link detection |
|
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Number of queues | 8 |
| Static route |
|
| Number of static routes | 48 |
| Number of IP interfaces | 16 |
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Static port security |
|
| SSH/SSL support |
|
| Loop protection |
|
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | RADIUS |
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Performance | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 32 MB |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 35.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 121.81 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Sustainability | |
| Sustainability compliance |
|
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| SKU | 810974 |
| MPN | S5500-24F4XF |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
