TP-Link Omada Pro 24-Port Managed 25G L3 Switch With 4 100G
Item No:
811330
MPN:
S7500-24Y4C
$36,959.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

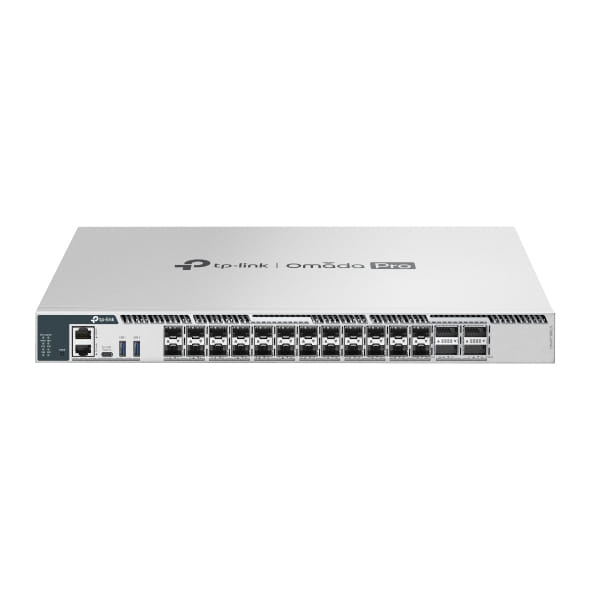

TP-Link Omada Pro S7500-24Y4C, Managed, L3, Rack mounting
What This Product Does
Omada Pro S7500-24Y4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, ultra-fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24 25 Gbps SFP28 slots, 4 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-24Y4C offers a dependable networking solution for enterprises, campus, and ISPs.
High-speed Connectivity and Powerful Stacking
24 25 Gbps SFP28 slots and 4 100 Gbps QSFP28 slots provide up to 2000 Gbps switching capacity per unit. Physical stacking of up to 12 units? enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro
Omada Pro S7500-24Y4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, ultra-fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24 25 Gbps SFP28 slots, 4 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-24Y4C offers a dependable networking solution for enterprises, campus, and ISPs.
High-speed Connectivity and Powerful Stacking
24 25 Gbps SFP28 slots and 4 100 Gbps QSFP28 slots provide up to 2000 Gbps switching capacity per unit. Physical stacking of up to 12 units? enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Cloud-managed |
 |
| Configuring Location Settings (CLI) |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). |
 |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 24 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1p |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Spanning tree protocol |
|
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 2000 Gbit/s |
| Forwarding rate | 810 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 128000 entries |
| Number of queues | 8 |
| Static route |
|
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet buffer memory | 8 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Static port security |
|
| SSH/SSL support |
|
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | AAA, RADIUS, TACACS+ |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 4 fan(s) |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 137.63 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 1658.78 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 380 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 811330 |
| MPN | S7500-24Y4C |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
