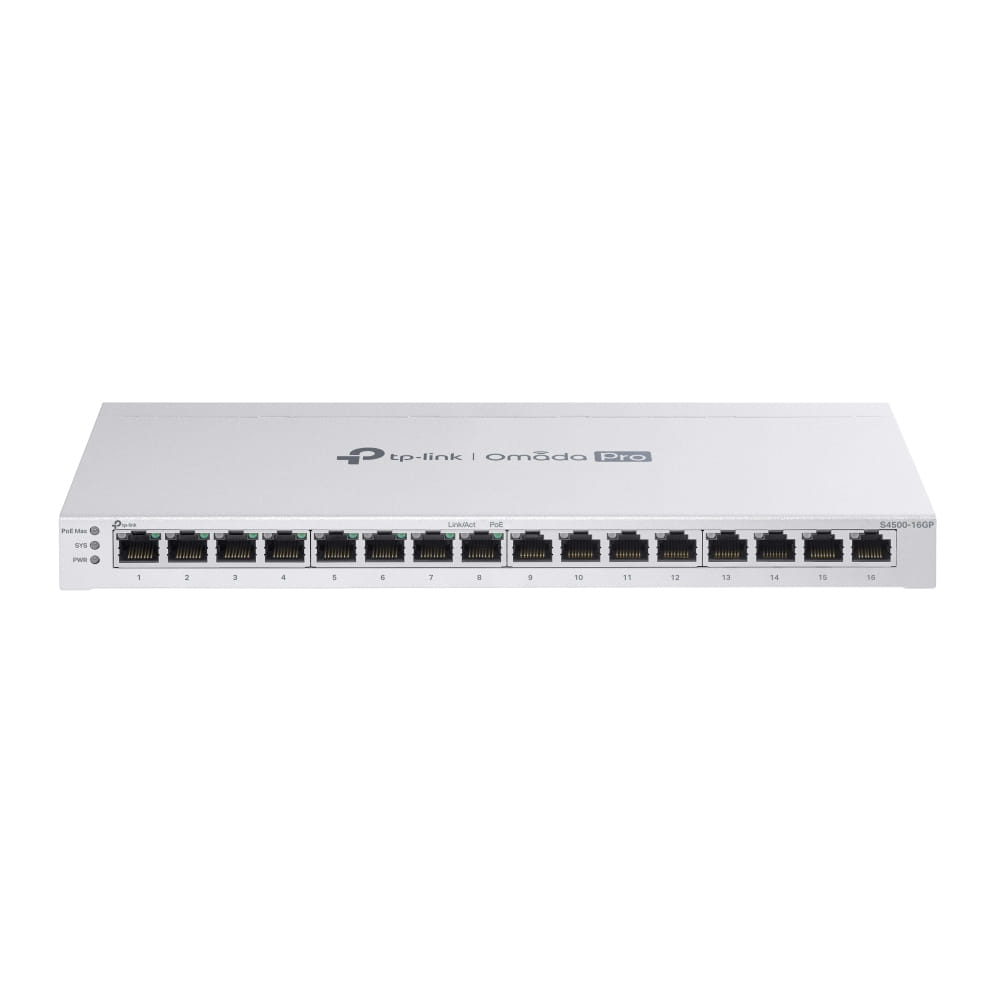

TP-Link Omada Pro 16-Port Smart Switch With 8-Port PoE+

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2/L2+
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Traffic classification
System event log

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	16
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x, IEEE 802.1s, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 1000BASE-TX
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Active link detection
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000

Data transmission
Switching capacity The data transfer capacity of the switch per second.	32 Gbit/s
Forwarding rate	23.81 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Store-and-forward
Number of queues	8
Static route
Number of static routes	32
Number of IP interfaces	16
Jumbo frames support
Jumbo frames	9000
Packet buffer memory	4.1 MB

Security
DHCP features	DHCP relay, DHCP server
Access Control List (ACL)
IGMP snooping
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
SSH/SSL support
Loop protection
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS

Multicast features
Multicast support

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white.	Grey
LED indicators

Performance
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	256 MB
Flash memory	32 MB
Fanless

Power
Power source What is providing power for the product e.g. mains electricity.	DC
Power supply included There is a power supply with this product.
Input current	2.43 A
Input voltage The voltage (V) which is required to power the product.	2.43 V
Power consumption (max) The maximum amount of power used by the device.	146.5 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation The heat generated by the power supply.	499.98 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	286 mm
Depth The distance from the front to the back of something.	111.7 mm
Height The measurement of the product from head to foot or from base to top.	25.4 mm

Packaging content
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Sustainability
Sustainability compliance

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
