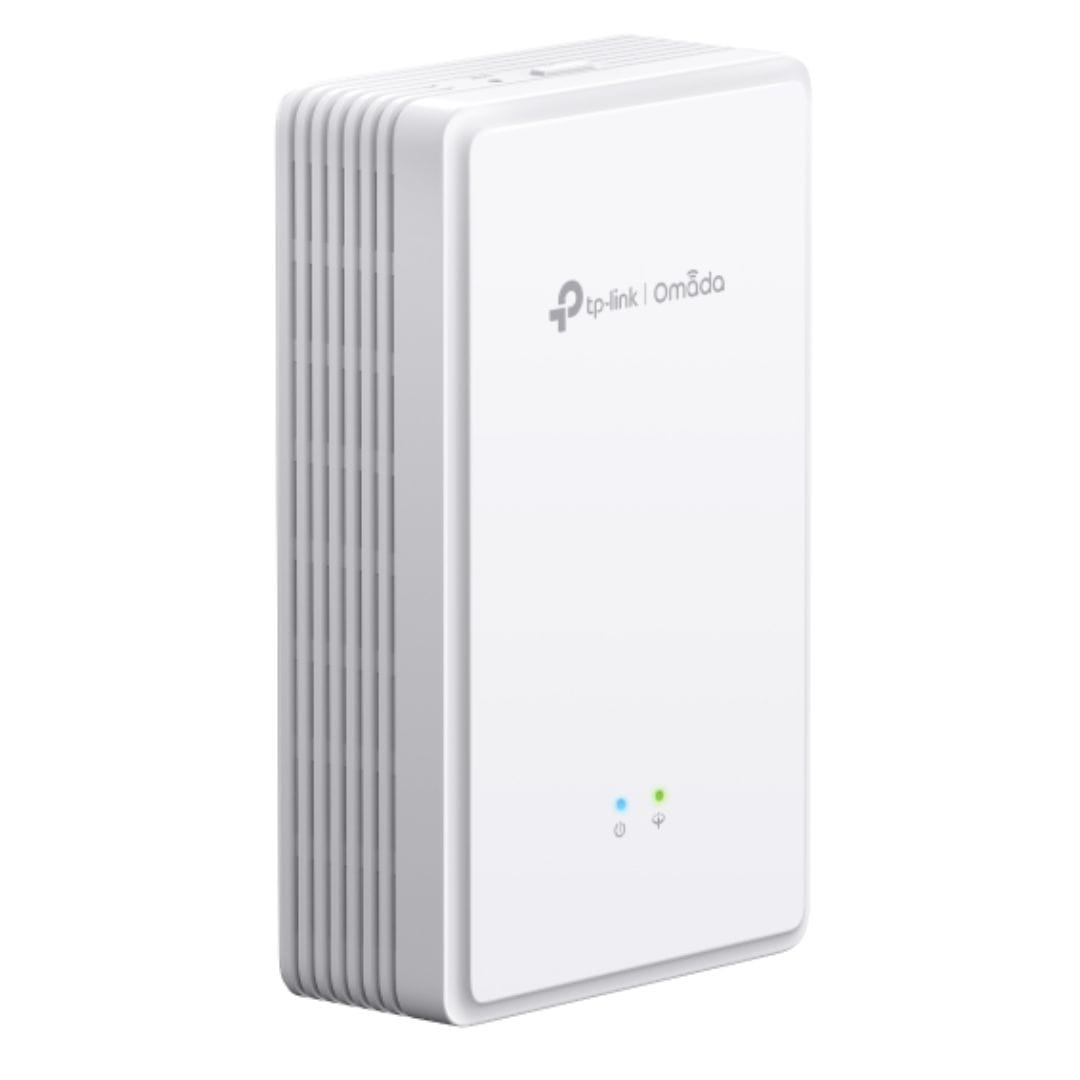

TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
1-- GPON Port for High-Speed and Ultra-Range Access
Ultra-Broadband Wi-Fi 6: MU-MIMO, Seamless Roaming
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
Easy Use: One-Click Pairing and Automatic Adoption
Smart O&M: PPSK--3 and Multiple Portals
Centralised Management: Integrates with the Unified Optical Solution
Wall-Mounted, AC Powered
Warranty Period: 5-Year
Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
1-- GPON Port for High-Speed and Ultra-Range Access
Ultra-Broadband Wi-Fi 6: MU-MIMO, Seamless Roaming
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
Easy Use: One-Click Pairing and Automatic Adoption
Smart O&M: PPSK--3 and Multiple Portals
Centralised Management: Integrates with the Unified Optical Solution
Wall-Mounted, AC Powered
Warranty Period: 5-Year
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users The number of people that use or can use this product. | 120 user(s) |
| Channel bandwidth | 80 MHz |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Wi-Fi roaming |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Rate limiting |
|
| Wireless isolation |
|
| Band steering |
|
| Airtime Fairness (ATF) |
|
| Quality of Service (QoS) support |
|
| BeamForming |
|
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 21 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Syslog |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12.2 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| LED indicators | Power |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 6.5 dBi |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | CE, FCC, RoHS, IC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 143 mm |
| Depth The distance from the front to the back of something. | 86 mm |
| Height The measurement of the product from head to foot or from base to top. | 37.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 320 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance |
|
| SKU | 811152 |
| MPN | EAP615GP-Wall |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
