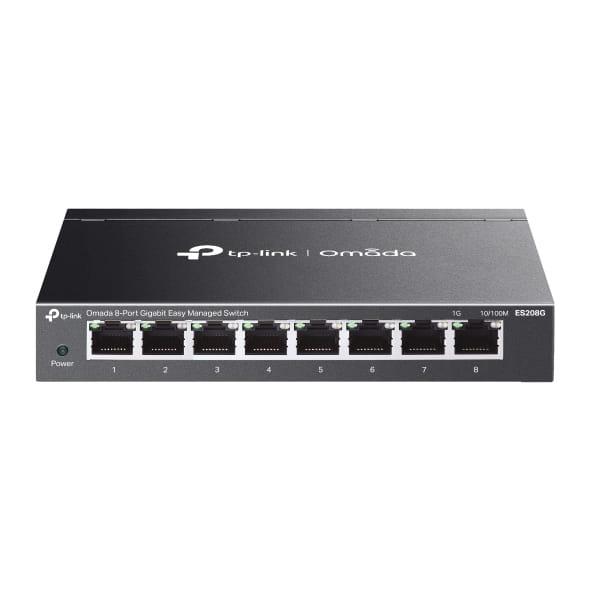

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Quality of Service (QoS) support
Cloud-managed

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Flow control support
Link aggregation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN

Data transmission
Switching capacity The data transfer capacity of the switch per second.	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Store-and-forward
Jumbo frames support
Jumbo frames	15
Packet buffer memory	4 MB

Security
DHCP features	DHCP client
IGMP snooping

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Product colour The colour e.g. red, blue, green, black, white.	Black
Wall mountable The product can be mounted on (attached to ) a wall.

Performance
Fanless
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	1141726 h

Power
Power source What is providing power for the product e.g. mains electricity.	DC
Power supply included There is a power supply with this product.
DC input voltage	5 V
Input current	0.6 A

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-5 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	158 mm
Depth The distance from the front to the back of something.	100.7 mm
Height The measurement of the product from head to foot or from base to top.	25.4 mm

Packaging content
Cables included	AC
User guide

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
