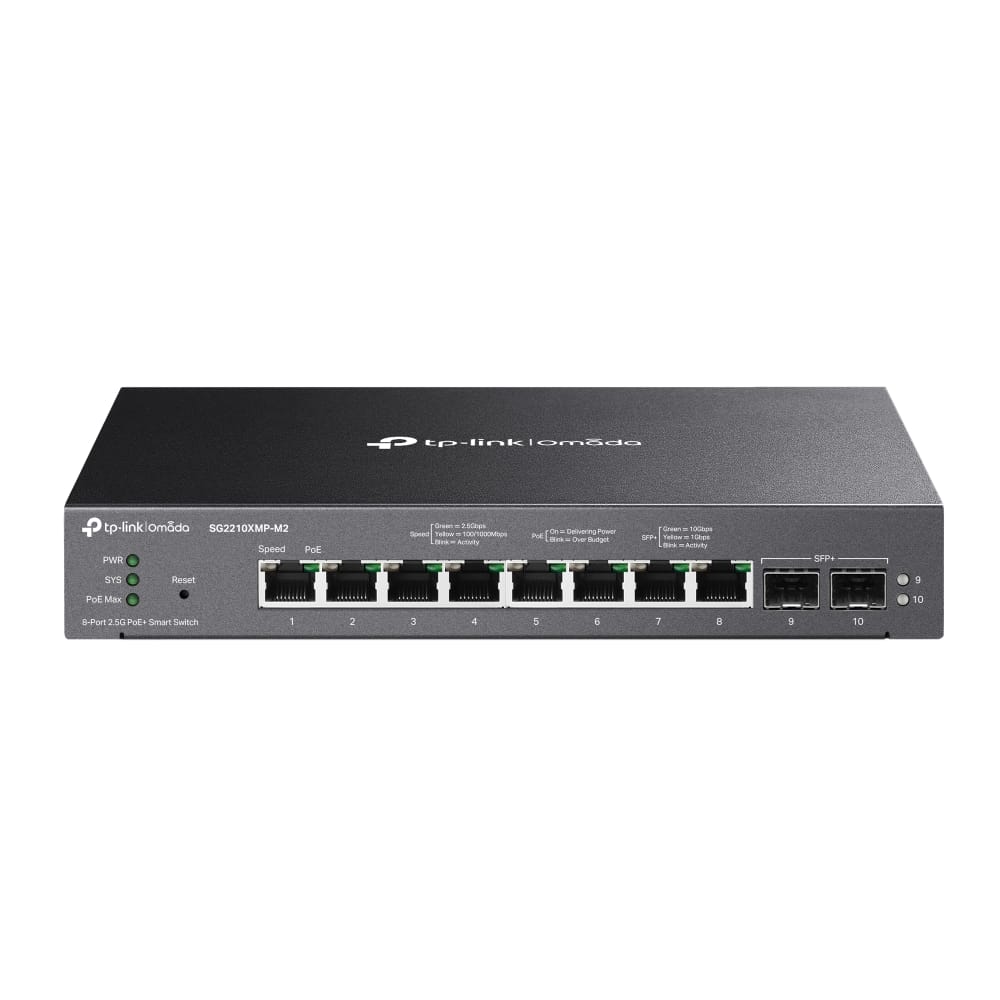

TP-Link SG2210XMP-M2 Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2/L2+
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
MIB support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	2
Power connector	AC/DC

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,2500 Mbit/s
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000

Data transmission
Switching capacity The data transfer capacity of the switch per second.	80 Gbit/s
Forwarding rate	59.52 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Static route
Jumbo frames support
Jumbo frames	9000
Packet buffer memory	9 MB

Security
DHCP features	DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SNMP, SNMPv2, SNMPv3
Loop protection
Authentication	MAC-based authentication, Port-based authentication
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS

Multicast features
Multicast support

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white.	Black
Reset button
LED indicators
Wall mountable The product can be mounted on (attached to ) a wall.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
Power consumption (max) The maximum amount of power used by the device.	180.1 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	160 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation The heat generated by the power supply.	614.58 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	226 mm
Depth The distance from the front to the back of something.	131 mm
Height The measurement of the product from head to foot or from base to top.	35 mm

Packaging data
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Sustainability
Sustainability compliance
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
