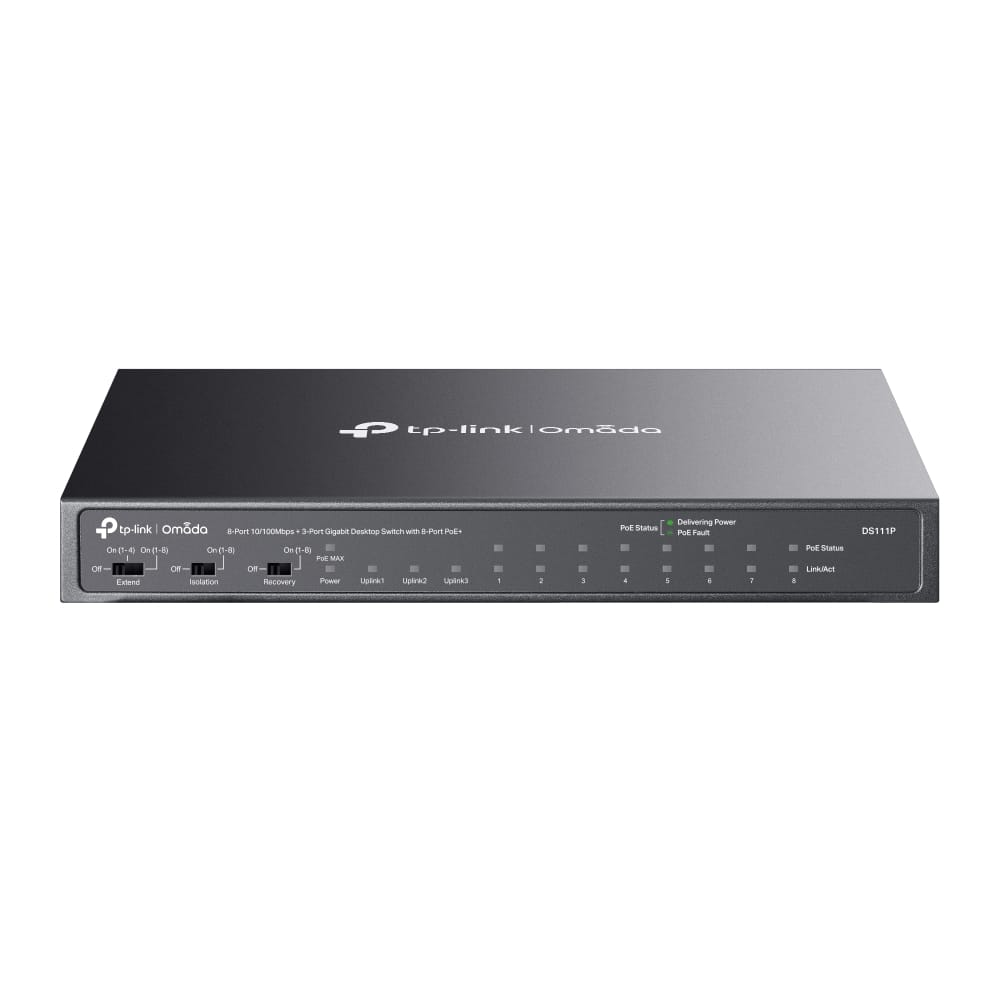

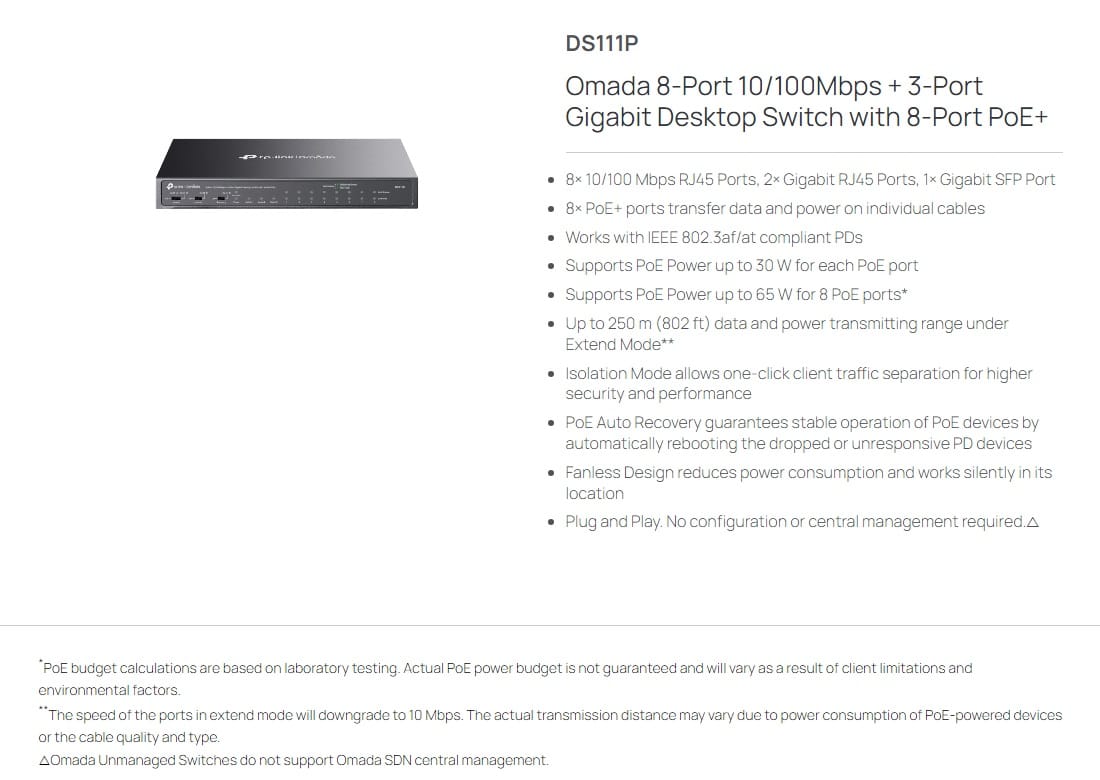

8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port; 8× PoE+ ports transfer data and power on individual cables;
Works with IEEE 802.3af/at compliant PDs; Supports PoE Power up to 30 W for each PoE port; Supports PoE Power up to 65 W for 8 PoE ports; Up to 250 m (802 ft) data and power transmitting range under Extend Mode; Isolation Mode allows one-click client traffic separation for higher security and performance; PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices; Fanless Design reduces power consumption and works silently in its location; Plug and Play. No configuration or central management required

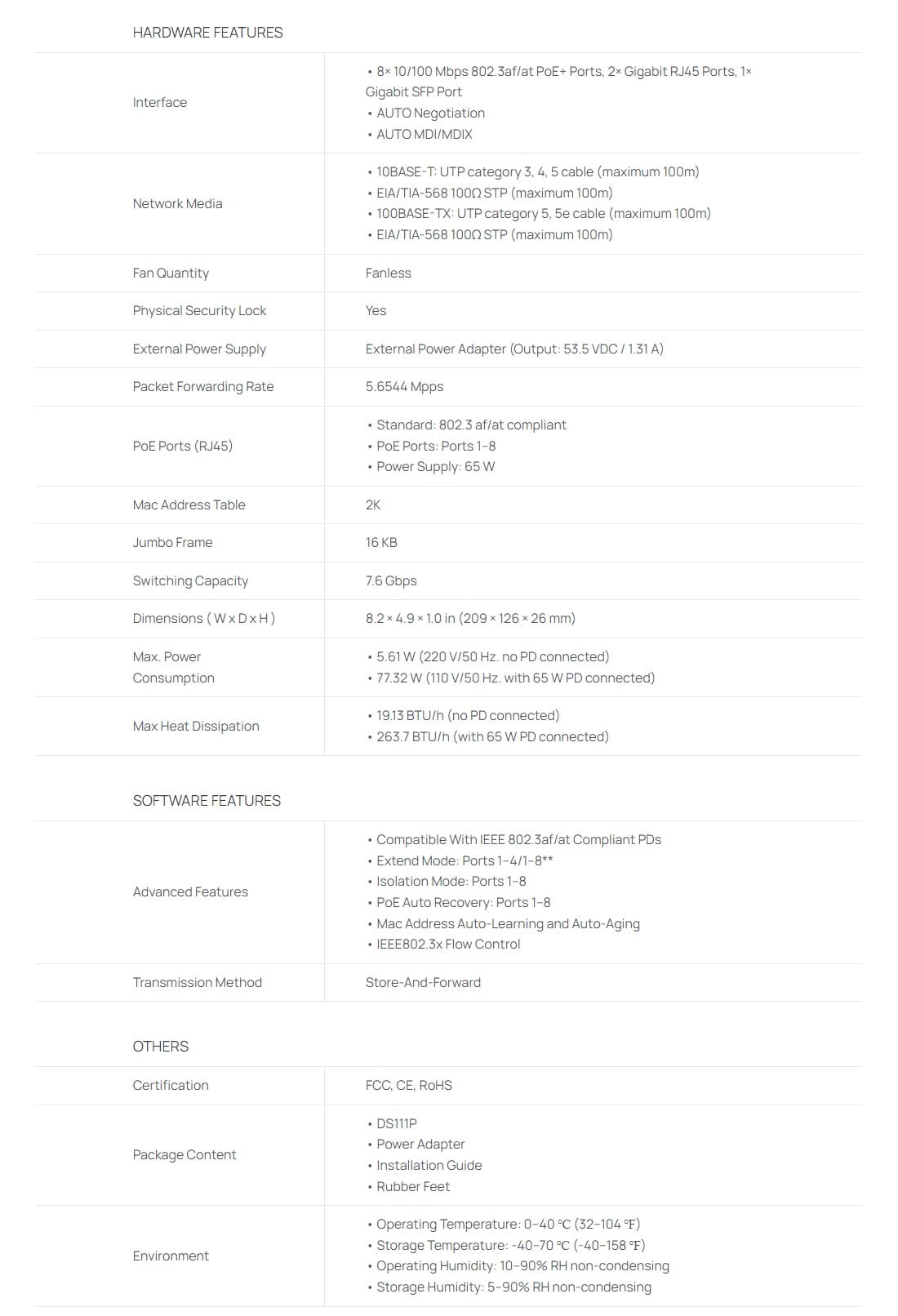

| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 10 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Auto-negotiation |
|
| MAC address auto-learning supported |
|
| MAC address auto-aging supported |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 7.6 Gbit/s |
| Forwarding rate | 5.6544 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 16 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Performance | |
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Power supply included There is a power supply with this product. |
|
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) The maximum amount of power used by the device. | 77.32 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 263.7 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 209 mm |
| Depth The distance from the front to the back of something. | 126 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Packaging content | |
| Cables included | Power |
| User guide |
|
| Packaging data | |
| Rubber feet |
|
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| SKU | 816374 |
| MPN | DS111P |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
