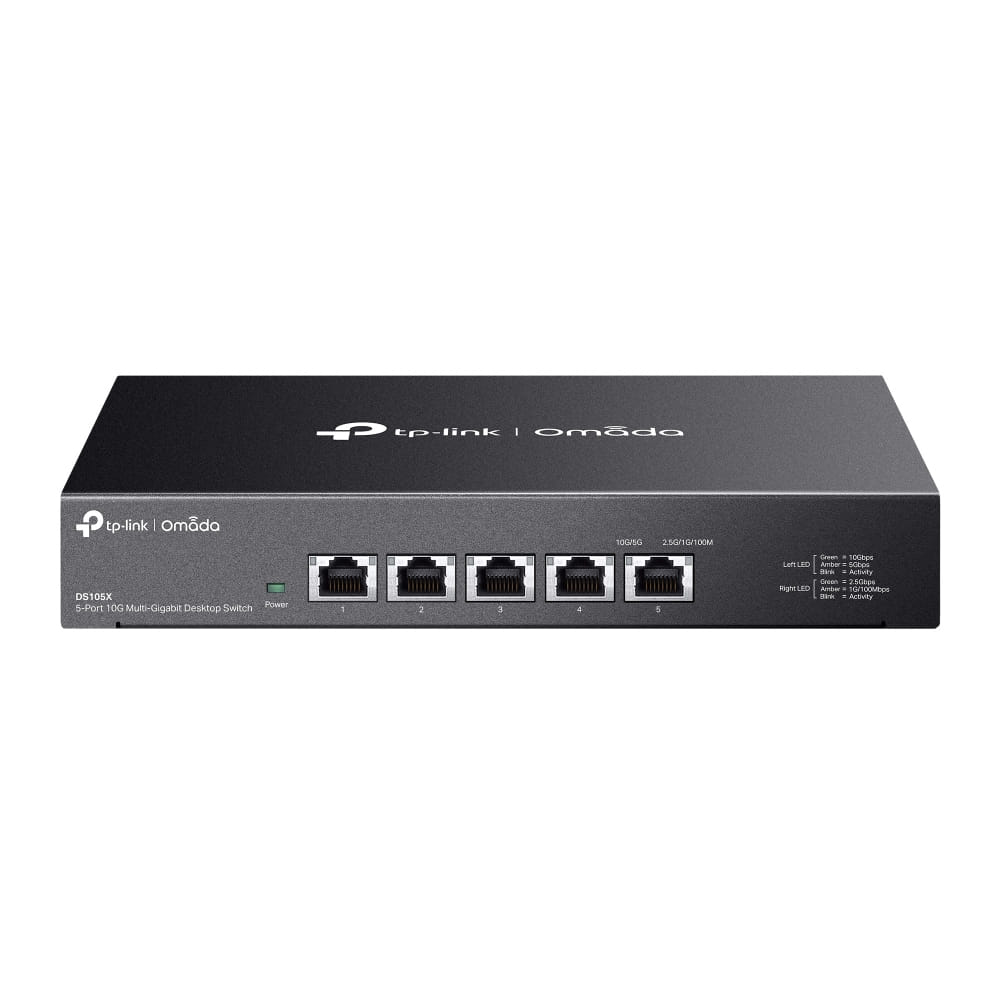

TP-Link Omada 5-Port 10G Multi-Gigabit Unmanaged Desktop Switch

Management features
Switch type What switch device has, managed or unmanaged.	Unmanaged
Quality of Service (QoS) support

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	5
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	10G Ethernet (100/1000/10000)
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10GBASE-T, 100BASE-TX, 1000BASE-T
Flow control support
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,2500,5000,10000 Mbit/s
Auto-negotiation

Data transmission
Switching capacity The data transfer capacity of the switch per second.	100 Gbit/s
Forwarding rate	74.4 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Store-and-forward
Jumbo frames support
Jumbo frames	12
Packet buffer memory	12 MB

Security
IGMP snooping

Multicast features
Multicast support

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Metal
Reset button
LED indicators	Activity, Link, Power
Wall mountable The product can be mounted on (attached to ) a wall.

Performance
Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Fanless

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	12 V
Input current	2 A
Power consumption (max) The maximum amount of power used by the device.	25.19 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation The heat generated by the power supply.	85.65 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	226 mm
Depth The distance from the front to the back of something.	131.2 mm
Height The measurement of the product from head to foot or from base to top.	35 mm

Packaging content
Cables included	Power
User guide

Packaging data
Rubber feet

Certificates
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
