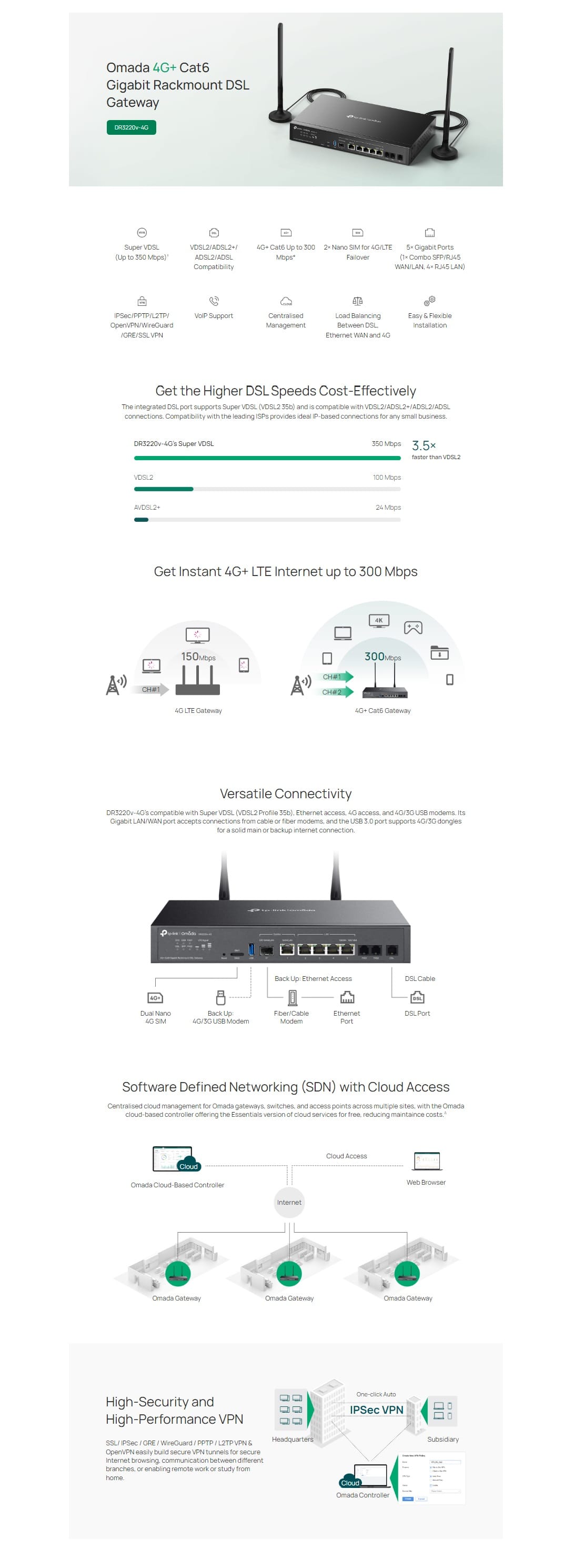

TP-Link Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2402 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port triggering
Load balancing system
Dynamic DNS (DDNS)
Policy-based routing
Static route
Built-in FTP server
VPN support	IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN

DSL features
ADSL
ADSL2
ADSL2+
VDSL2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RJ-11 ports quantity	3
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Reset button
MU-MIMO technology

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Guest access
Access Control List (ACL)
URL filtering
System event log
DMZ support
Network address translation (NAT)

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Universal Plug and Play (UPnP)
Voice codecs	G.711a, G.711ulaw, G.722, G.726, G.729ab

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Wall mountable The product can be mounted on (attached to ) a wall.
Indication light
LED indicators	DSL, LAN, USB, WLAN
Product type The sub-category of the product.	Tabletop router

Packaging content
Cables included	LAN (RJ-45), Phone
AC adapter included
Antenna included An antenna (aerial) is built into the product or comes with it.

Antenna
Antenna design	External
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	4.5 dBi
Antennas quantity	3
Detachable antenna(s)

Power
Power source type What the power source is.	AC
Output voltage	12 V
Output current	3.3 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	226 mm
Depth The distance from the front to the back of something.	131 mm
Height The measurement of the product from head to foot or from base to top.	35 mm

Packaging data
Package type The type of product package e.g. box.	Box
Number of products included The number of products that are included in the package.	1 pc(s)
