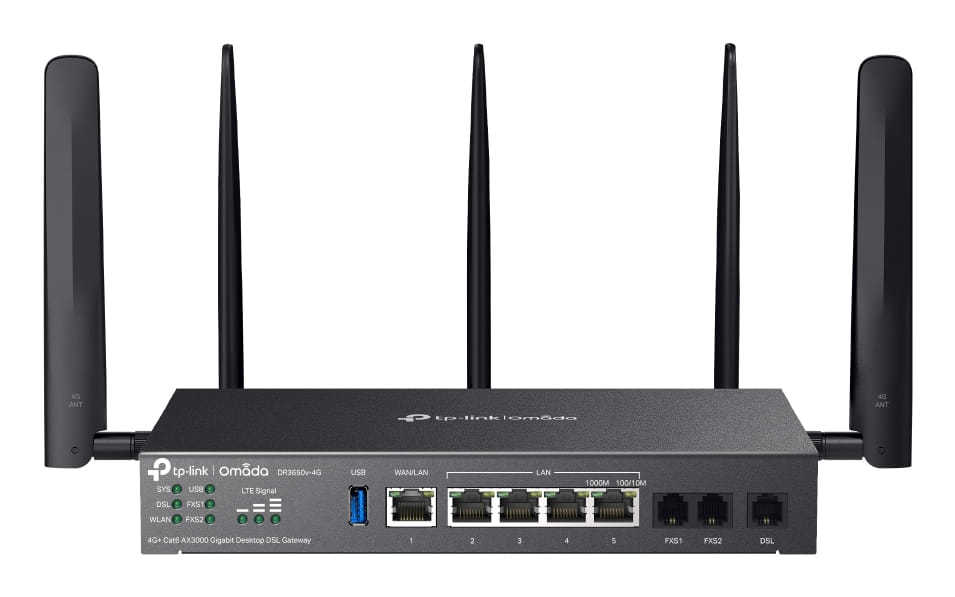

TP-Link Omada DR3650V-4G, Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL, ADSL2, Black, Tabletop router
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
SSL/IPSec /GRE/WireGuard / PPTP/L2TP VPN &
OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
SSL/IPSec /GRE/WireGuard / PPTP/L2TP VPN &
OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
| WAN connection | |
| Ethernet WAN |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
|
| SIM card slot Whether the device features a SIM card slot. |
 |
| 3G/4G USB modem compatibility |
|
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Port triggering |
|
| Load balancing system |
|
| Dynamic DNS (DDNS) |
|
| Policy-based routing |
|
| Static route |
|
| Built-in FTP server |
|
| VPN support | IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| DSL features | |
| ADSL |
|
| ADSL2 |
|
| ADSL2+ |
|
| VDSL2 |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 3 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Quality of Service (QoS) support |
|
| Reset button |
|
| MU-MIMO technology |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Guest access |
|
| Access Control List (ACL) |
|
| URL filtering |
|
| System event log |
|
| DMZ support |
|
| Network address translation (NAT) |
|
| NAT functionality | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Universal Plug and Play (UPnP) |
|
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Indication light |
|
| LED indicators | DSL, LAN, USB, WLAN |
| Product type The sub-category of the product. | Tabletop router |
| Packaging content | |
| Cables included | LAN (RJ-45), Phone |
| AC adapter included |
|
| Antenna included An antenna (aerial) is built into the product or comes with it. |
|
| Antenna | |
| Antenna design | External |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4.5 dBi |
| Antennas quantity | 5 |
| Detachable antenna(s) |
|
| Features | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 671034 h |
| Power | |
| Power source type What the power source is. | AC |
| Output voltage | 12 V |
| Output current | 3.3 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 226 mm |
| Depth The distance from the front to the back of something. | 131.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 35 mm |
| SKU | 817792 |
| MPN | DR3650v-4G |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
