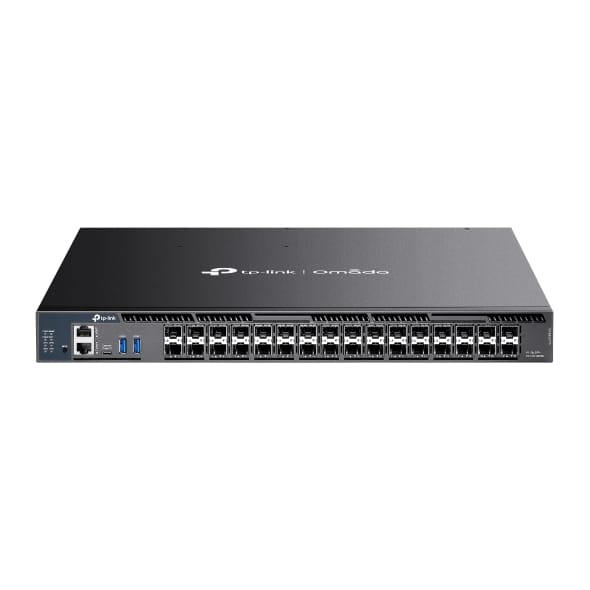

TP-Link SX6632YF Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2+/L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Cloud-managed
ARP inspection

Ports & interfaces
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).
SFP module slots quantity	6
SFP+ module slots quantity	26
USB Type-A ports quantity	2
USB Type-C ports quantity	1
Number of management ports	1 pc(s)
Console port	RJ-45

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
IP routing
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Data transmission
Switching capacity The data transfer capacity of the switch per second.	820 Gbit/s
Forwarding rate	610.1 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	128000 entries
Jumbo frames support
Jumbo frames	9000
Packet buffer memory	8 MB

Security
DHCP features	DHCP Option 82
Access Control List (ACL)
IGMP snooping
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Static port security
SSH/SSL support

Multicast features
Multicast support

Protocols
Management protocols	SNMPv1/v2c/v3

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Product colour The colour e.g. red, blue, green, black, white.	Black
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	4 fan(s)

Performance
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
Number of power supply units	2
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-5 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	380 mm
Height The measurement of the product from head to foot or from base to top.	44 mm

Packaging data
Cables included	Power
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Rack mount kit
