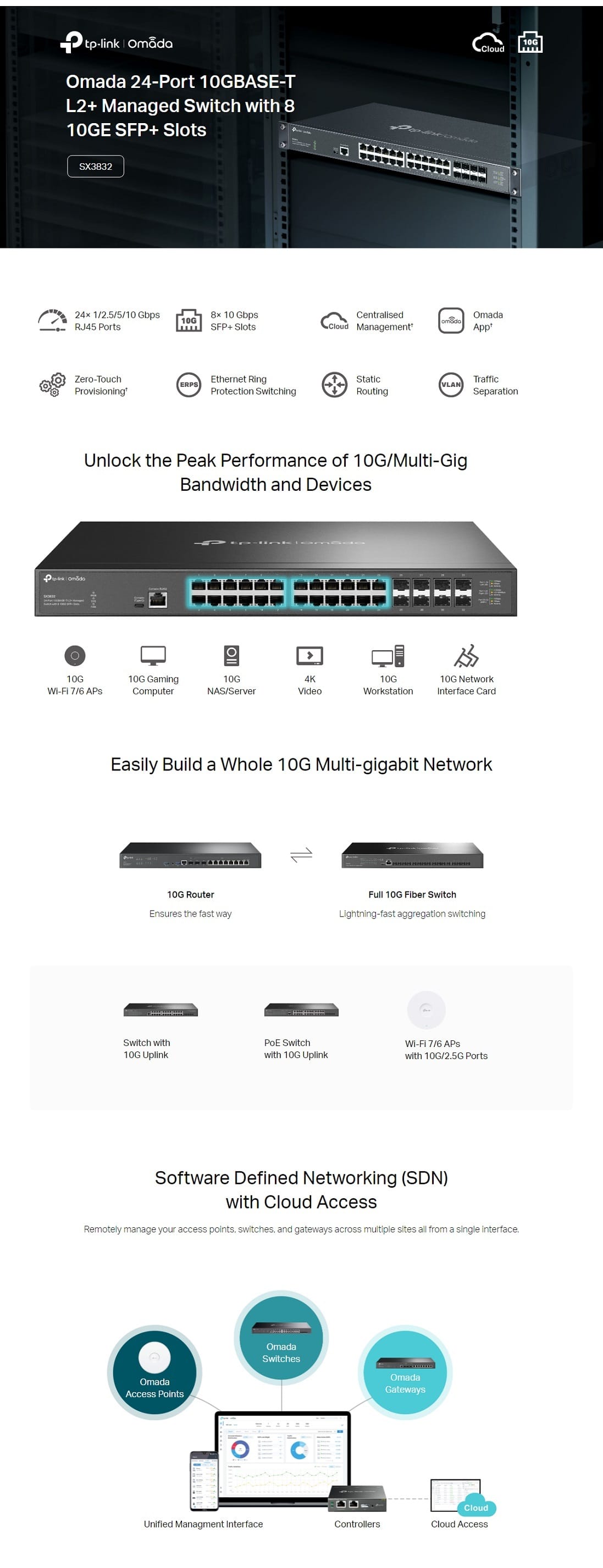

24× 1/2.5/5/10 Gbps RJ45 ports; 8× 1/10 Gbps SFP+ slots; 640 Gbps switching capacity; Centralised cloud management via the web or the Omada app.; Standalone management via web, CLI, SNMP, and RMON; Static Routing helps route internal traffic for higher efficiency; VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM; ERPS supports rapid protection and recovery in a ring topology; Durable metal casing and rack-mountable design
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L2/L2+ |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Cloud-managed |
|
| ARP inspection |
|
| Configuring Location Settings (CLI) |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 8 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3az |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| IP routing |
|
| Flow control support |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Spanning tree protocol |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Static route |
|
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Packet buffer memory | 24 MB |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| SSH/SSL support |
|
| Loop protection |
|
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | AAA, RADIUS, TACACS+ |
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 106.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 363.23 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Rack mount kit |
|
| SKU | 811795 |
| MPN | SX3832 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
