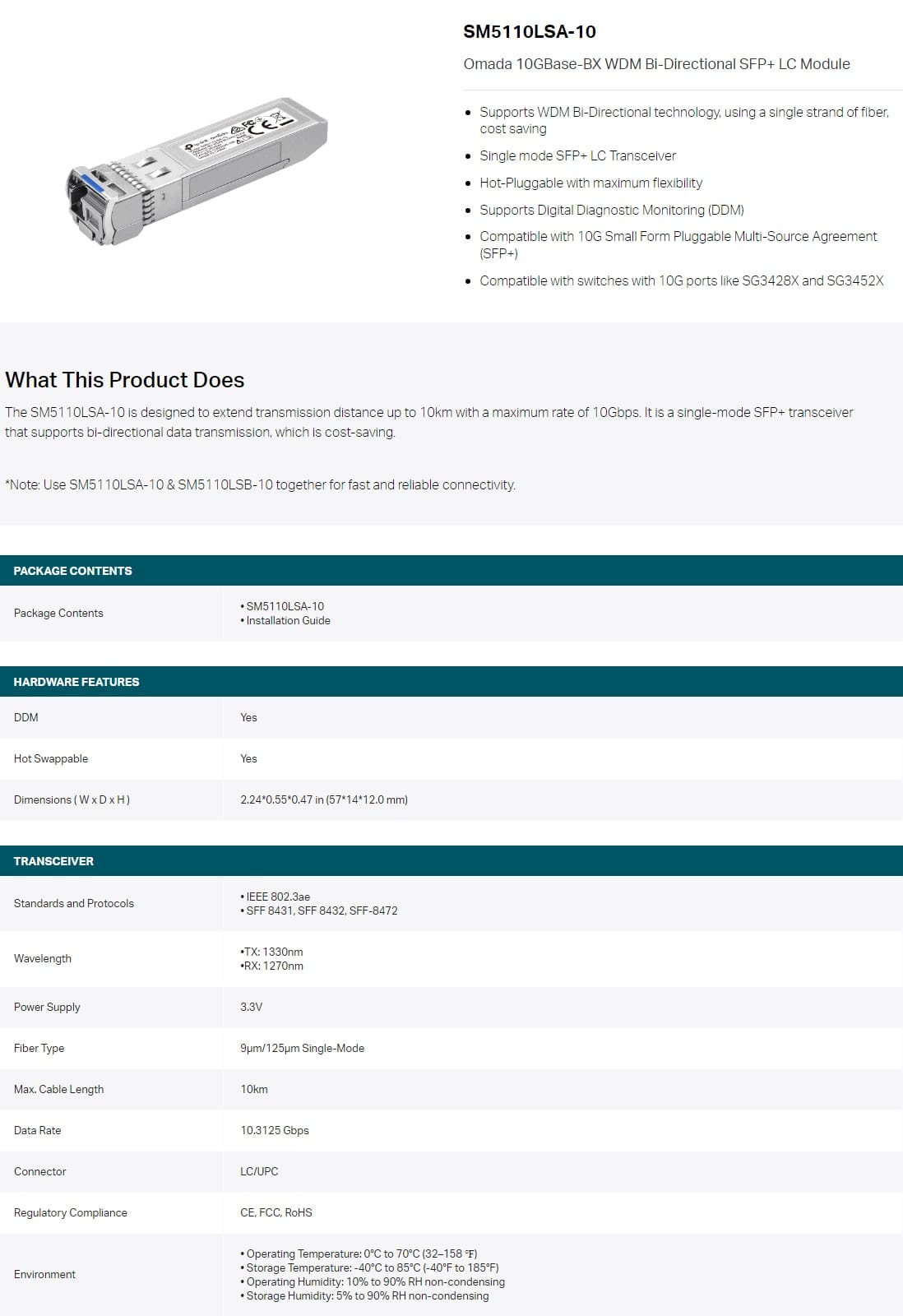

Supports WDM Bi-Directional technology, using a single strand of fibre, cost saving; Single mode SFP+ LC Transceiver; Hot-Pluggable with maximum flexibility; Supports Digital Diagnostic Monitoring (DDM); Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+); Compatible with switches with 10G ports like SG3428X and SG3452X
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10312 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Hot-swap |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 57 mm |
| Depth The distance from the front to the back of something. | 14 mm |
| Height The measurement of the product from head to foot or from base to top. | 12 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual |
|
| SKU | 807221 |
| MPN | SM5110LSA-10 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
