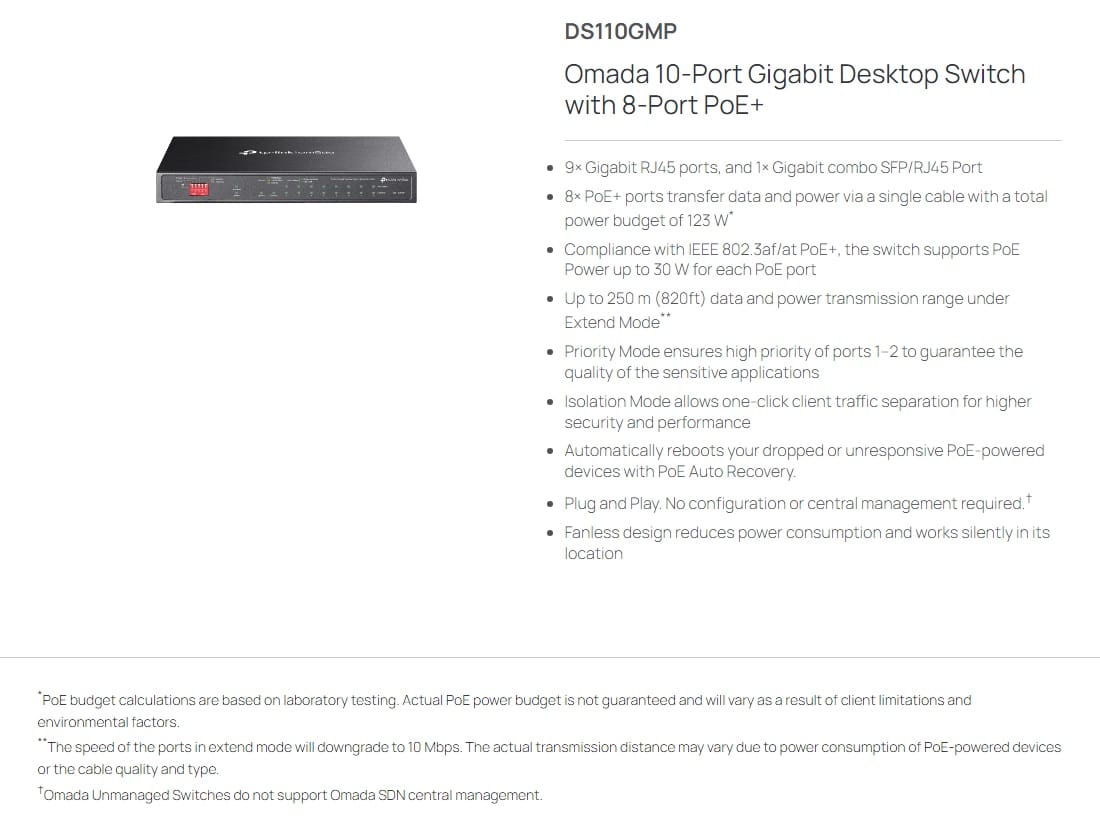

9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port; 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W; Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port;
Up to 250 m (820ft) data and power transmission range under Extend Mode; Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications; Isolation Mode allows one-click client traffic separation for higher security and performance; Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.; Plug and Play. No configuration or central management required.; Fanless design reduces power consumption and works silently in its location

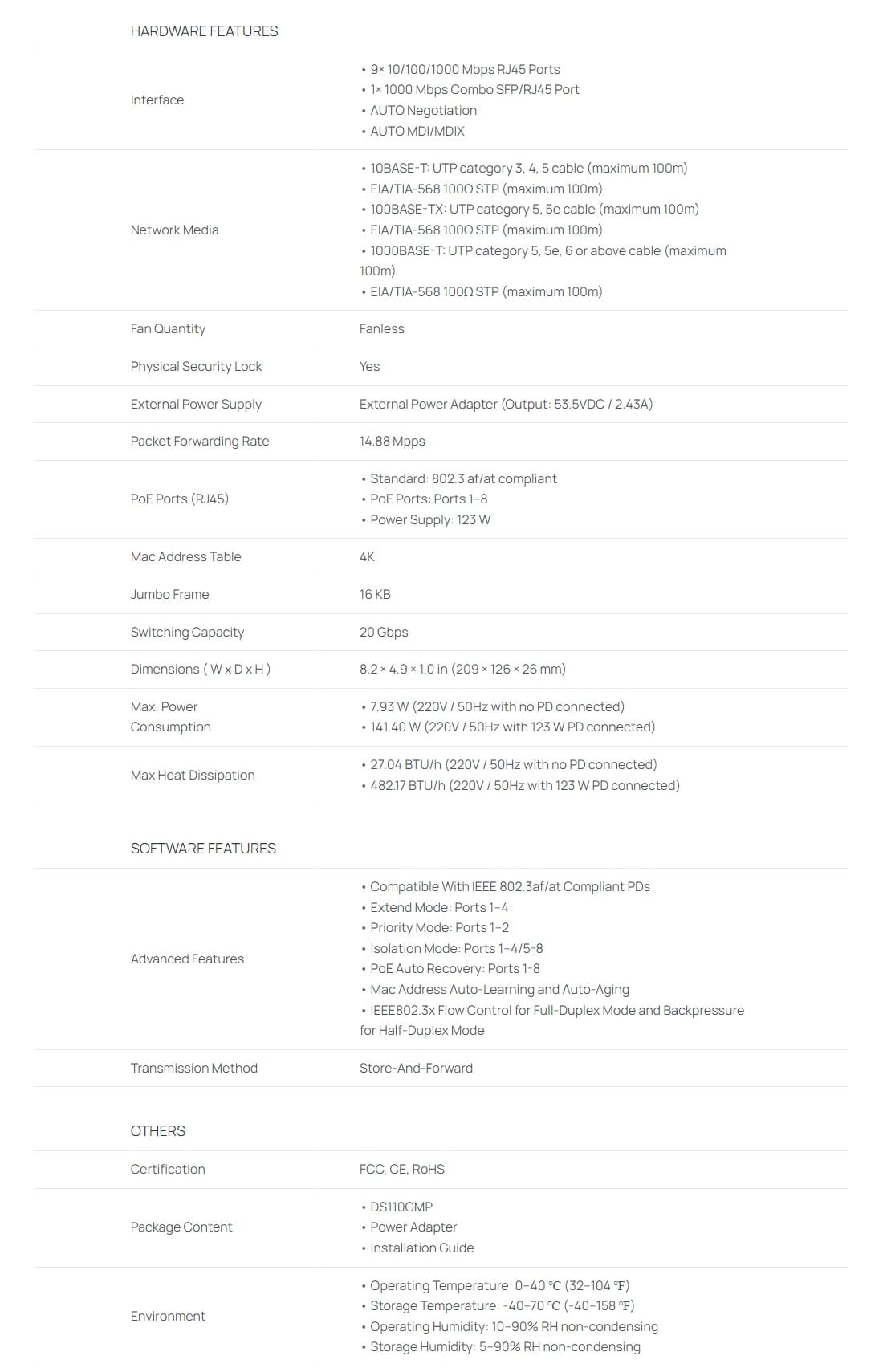

| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Quality of Service (QoS) support |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 10 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Power connector | AC/DC |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Half duplex |
|
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Auto-negotiation |
|
| MAC address auto-learning supported |
|
| MAC address auto-aging supported |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4000 entries |
| Jumbo frames support |
|
| Jumbo frames | 16 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Performance | |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Fanless |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Power supply included There is a power supply with this product. |
|
| DC input voltage | 53.5 V |
| Input current | 2.43 A |
| Power consumption (max) The maximum amount of power used by the device. | 141.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 123 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 482.17 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 209 mm |
| Depth The distance from the front to the back of something. | 126 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Packaging content | |
| Cables included | Power |
| User guide |
|
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| SKU | 816373 |
| MPN | DS110GMP |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
