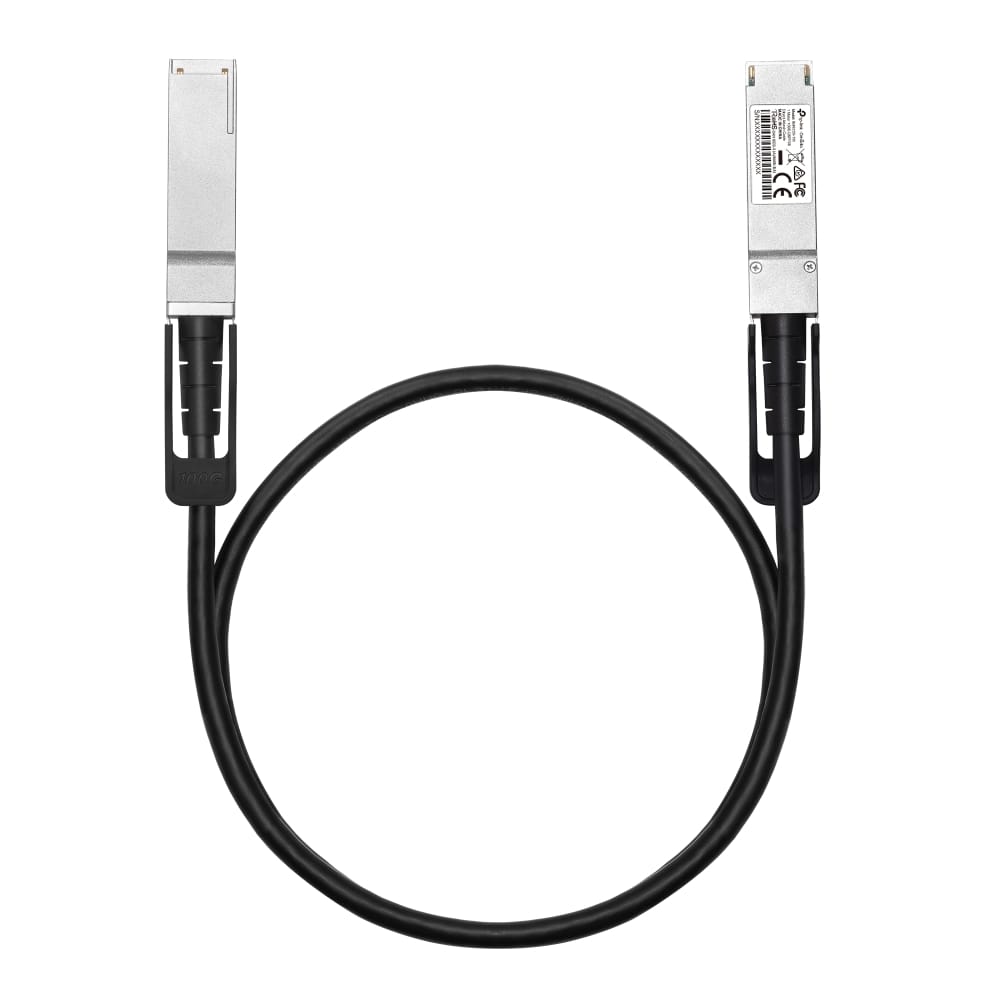

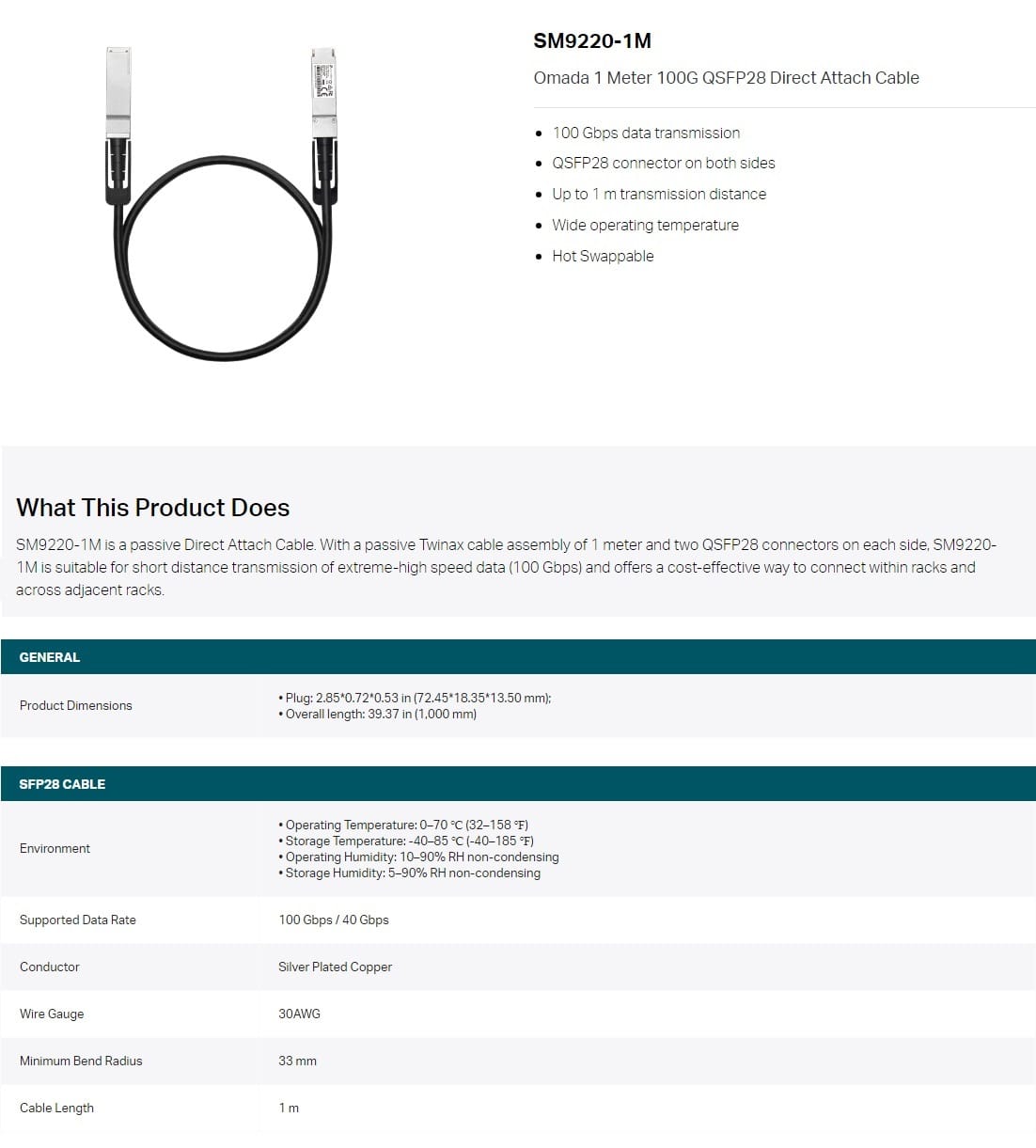

100 Gbps data transmission; QSFP28 connector on both sides; Up to 1 m transmission distance; Wide operating temperature; Hot Swappable
| Features | |
| Cable length How long the cable is. | 1 m |
| AWG wire size | 30 |
| Cable shape | Round |
| Connector 1 This is the first connector in the device. | QSFP28 |
| Connector 2 This is the second connector in the device. | QSFP28 |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Cable type Type of cable e.g. electicity cable, optical cable. | Twinax |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 100 Gbit/s |
| Jacket material | Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 3.3 cm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ba, IEEE 802.3bj |
| SKU | 809144 |
| MPN | SM9220-1M |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
