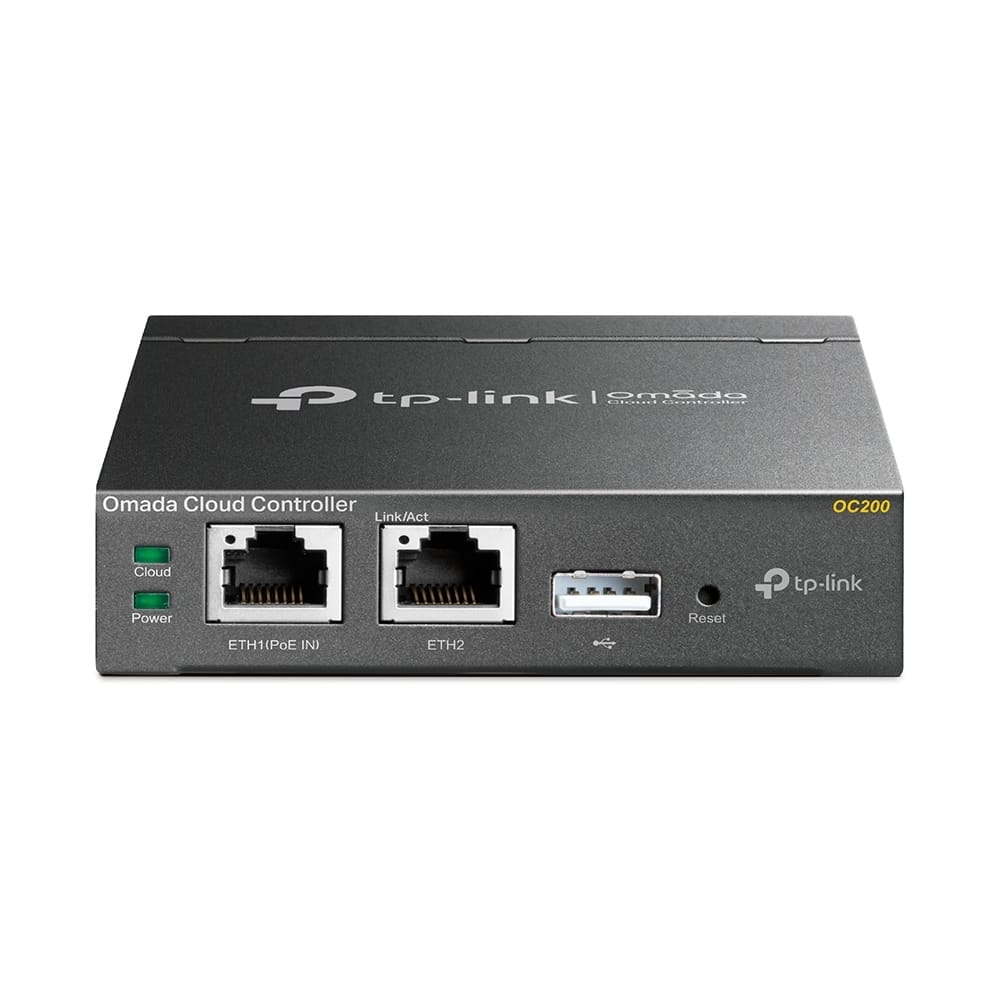

TP-Link OC200 Omada Cloud Controller

Security
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSID,WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Network
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af,IEEE 802.3at

Management features
Web-based management Using a website/web application to manage something.
Quality of Service (QoS) support
Reset button

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2

Weight & dimensions
Width The measurement or extent of something from side to side.	100 mm
Depth The distance from the front to the back of something.	98 mm
Height The measurement of the product from head to foot or from base to top.	25 mm

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	5 W
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
DC input voltage	5 V

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Technical details
Built-in processor Whether or not a processor is built into the device.
Management platform	L3
Number of processors installed Number of processors in the product.	1
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1000 MHz

Indication
LED indicators

Memory
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB
Flash memory	4000 MB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR3

Display
Control display unit

Certificates
Certification	CE, FCC, RoHS

Software
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux

Packaging content
Cables included	LAN (RJ-45)
Quick installation guide
