TP-Link TL-MCRP100, 75 W, 100 - 240 V, 50 - 60 Hz, 1.8 A, 6,25 A, Over power, Overload, Short circuit

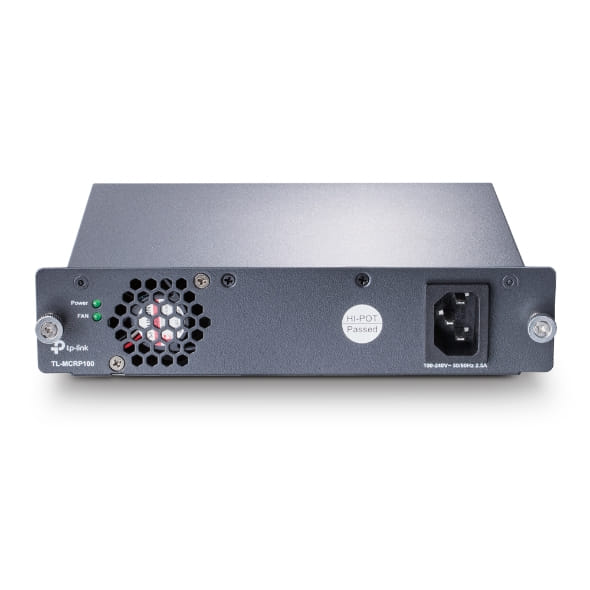

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 12VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 75 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.8 A |
| Max output current (+12V) | 6.25 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over power, Overload, Short circuit |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Illumination The device has illumination. |
 |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -35 - 85 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 210 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 70 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 250 mm |
| Package depth The distance from the front to the back of the packaging. | 400 mm |
| Package height The distance from the top to the bottom of the packaging. | 80 mm |
| Package weight Weight of the packaged product. | 1.5 kg |
| Other features | |
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Green |
| Power management |
|
| SKU | 820926 |
| MPN | MCRP100 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
