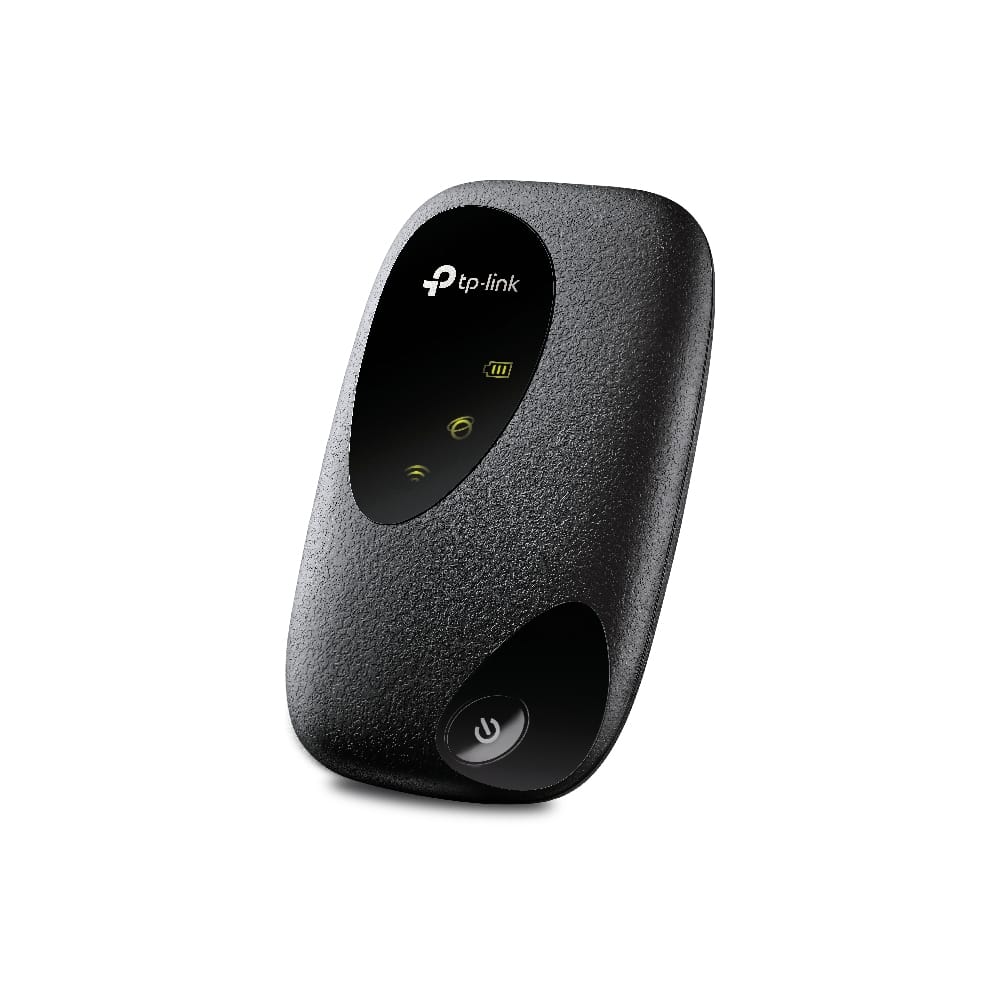

TP-Link M7000 4G LTE Mobile Wi-Fi

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Single-band (2.4 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b,802.11g,Wi-Fi 4 (802.11n)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Not available
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Receiver sensitivity	11b 11Mbps: -87.5dBm 11g 54Mbps: -74dBm 11n HT20 MCS7: -70dBm 11n HT40 MCS7: -68dBm

Mobile network
3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.
3G standards	HSPA,HSPA+,UMTS
4G standard	LTE-FDD
UMTS bands supported	850,900,2100 MHz
4G bands supported	800,850,900,1800,2100,2600 MHz

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
Memory card slot(s) Places where memory cards are placed inside and connected to the computer motherboard.

Management features
Web-based management Using a website/web application to manage something.
Reset button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SSID,WPA-PSK,WPA2-PSK
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	Power,WLAN
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Portable router

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	Internal
Transmit power	20 dBmW

Features
Certification	CE, RoHS

Power
Power source type What the power source is.	Battery
Output voltage	5 V
Output current	1 A
Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.	2000 mAh
Battery life (max) Maximum battery life. Mobile Mark™ (2002) is the standard often used to benchmark battery life time.	8 h

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10,Windows 7,Windows 8,Windows Vista,Windows XP
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.
Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device.	Android,Windows Phone,iOS

Weight & dimensions
Width The measurement or extent of something from side to side.	94 mm
Depth The distance from the front to the back of something.	56.7 mm
Height The measurement of the product from head to foot or from base to top.	19.8 mm

Packaging data
Cables included	Micro-USB
Quick installation guide
Number of products included The number of products that are included in the package.	1 pc(s)
