Shipping Information
- Available for shipping
- Usually leaves our warehouse in 1-2 business days
Store Availability
- 2-3 business days at Bankstown Store
- 2-3 business days at Castle Hill Store
- Low Stock at Northmead Store
Shipping Estimate

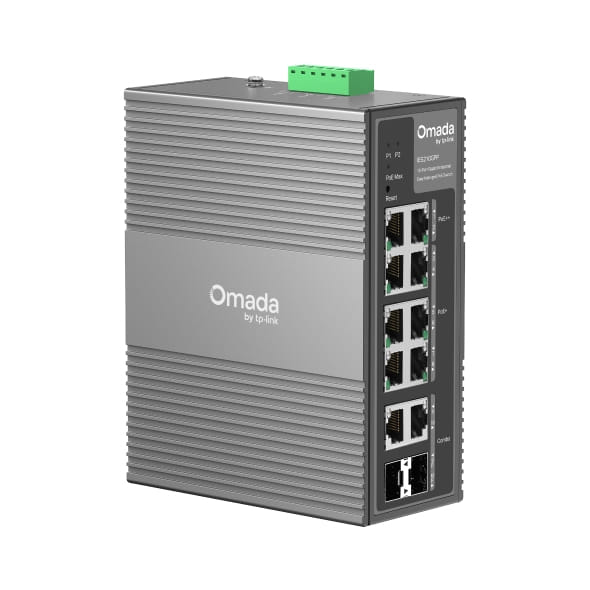

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail
Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments
- 10 Gigabit Ports (2 PoE++, 6 PoE+, 2 RJ45/SFP Combo)
- 240W Total PoE Budget
- 40DegC to 75DegC Operating Temperature
- 1257VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments
- 10 Gigabit Ports (2 PoE++, 6 PoE+, 2 RJ45/SFP Combo)
- 240W Total PoE Budget
- 40DegC to 75DegC Operating Temperature
- 1257VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Port mirroring |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 12 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 15000 |
| Packet buffer memory | 4000 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping |
|
| Loop protection |
|
| Multicast features | |
| Multicast support |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Form factor The shape or design of the product. | DIN rail |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 12 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 155 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| SKU | 817613 |
| MPN | IES210GPP |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
