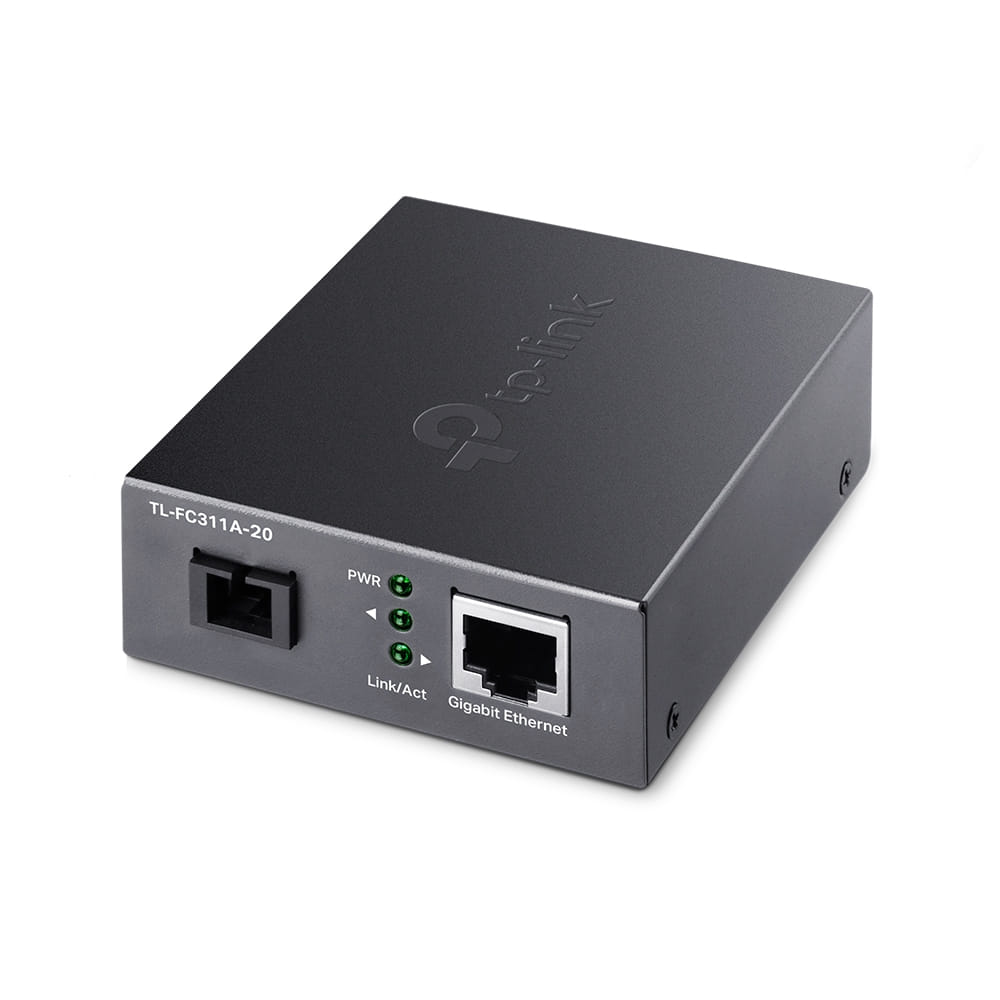

TP-LINK Gigabit WDM Media Converter, 1000 Mbit/s, IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000 Mbit/s, SC
What This Product Does
TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
- Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
- Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 1000 Mbit/s |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SC |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1550 nm |
| Wavelength-division multiplexing (WDM) |
|
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Design | |
| Internal The product is built in. |
 |
| LED indicators | Activity, Link, Power |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Output voltage | 5 V |
| Output current | 0.6 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 94.5 mm |
| Depth The distance from the front to the back of something. | 73 mm |
| Height The measurement of the product from head to foot or from base to top. | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| SKU | 494912 |
| MPN | TL-FC311A-20 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
