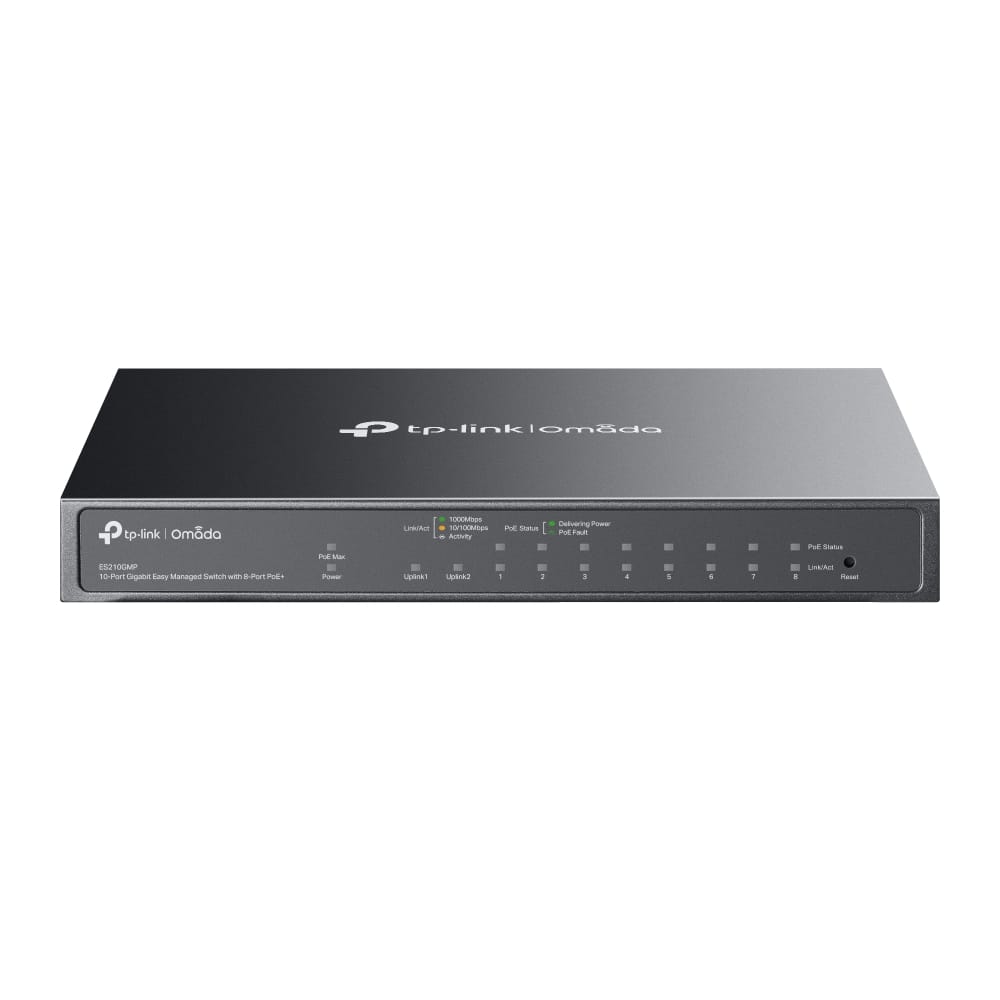

TP-Link ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Quality of Service (QoS) support
Cloud-managed

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	10
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Flow control support
Link aggregation
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN

Optical fiber
Transmission distance (max)	0.25 km

Data transmission
Switching capacity The data transfer capacity of the switch per second.	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Store-and-forward
Jumbo frames support
Jumbo frames	15
Packet buffer memory	4 MB

Security
DHCP features	DHCP client
IGMP snooping

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Reset button
Wall mountable The product can be mounted on (attached to ) a wall.

Performance
Fanless

Power
Power source What is providing power for the product e.g. mains electricity.	DC
Power supply included There is a power supply with this product.
DC input voltage	53.5 V
Input current	2.43 A

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	123 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	209 mm
Depth The distance from the front to the back of something.	126 mm
Height The measurement of the product from head to foot or from base to top.	26 mm

Packaging content
Cables included	AC
User guide

Packaging data
Package type The type of product package e.g. box.	Box

Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
