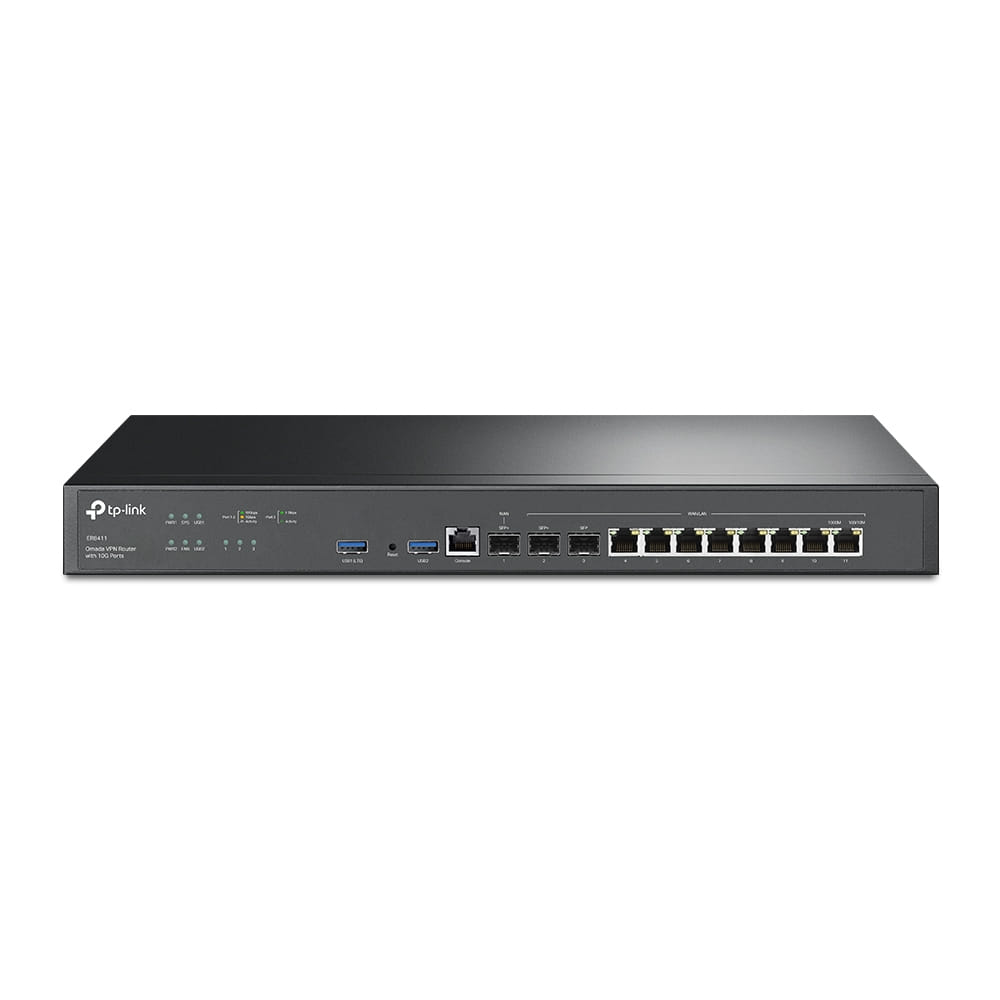

TP Link Omada VPN Router with 10G Ports, Ethernet WAN, Gigabit Ethernet, Black
Future Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports
Centralized Cloud Management
Seamless integration into the Omada SDN platform
Quad Core 2.2 GHz CPU
Enterprise "level hardware design provides maximum performance
Two 10GE SFP Ports
High bandwidth aggregation with 1 - WAN and 1 - WAN/LAN ports
Up to 10 WAN Ports
Multi WAN Load Balance raises the utilization rate of multi line broadband
Two USB 3.0 Ports
Available 4G/3G Modem connection for LTE WAN backup
High Capacity Performance
Supports up to 2,300,000 concurrent sessions
High Security VPN
Enterprise standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN
Enhanced Security
Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering
Dual Redundant Power Supplies
Carrier class reliability for enterprise networking
High Capacity Performance with Quad Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier class reliability for enterprise networking.
Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning fast network with Omada ER8411 an enterprise VPN router with 10G ports. It surpasses the need for high speed, reliable, and safe enterprise networks, ideal for large scale deployments such as offices, schools, and hotels.
10 - WAN Ports & One USB WAN for Mobile Broadband
Up to 10 - WAN SFP , SFP, and RJ45 ports allow the router to support various internet access requirements. Multi WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
High Security and High Performance VPN
ER8411 supports pass through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
IP MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
One Click ALG Activation
One Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network all controlled from a single interface.
Omada VPN Router with 10G Ports
Centralized Cloud Management
Seamless integration into the Omada SDN platform
Quad Core 2.2 GHz CPU
Enterprise "level hardware design provides maximum performance
Two 10GE SFP Ports
High bandwidth aggregation with 1 - WAN and 1 - WAN/LAN ports
Up to 10 WAN Ports
Multi WAN Load Balance raises the utilization rate of multi line broadband
Two USB 3.0 Ports
Available 4G/3G Modem connection for LTE WAN backup
High Capacity Performance
Supports up to 2,300,000 concurrent sessions
High Security VPN
Enterprise standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN
Enhanced Security
Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering
Dual Redundant Power Supplies
Carrier class reliability for enterprise networking
High Capacity Performance with Quad Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier class reliability for enterprise networking.
Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning fast network with Omada ER8411 an enterprise VPN router with 10G ports. It surpasses the need for high speed, reliable, and safe enterprise networks, ideal for large scale deployments such as offices, schools, and hotels.
10 - WAN Ports & One USB WAN for Mobile Broadband
Up to 10 - WAN SFP , SFP, and RJ45 ports allow the router to support various internet access requirements. Multi WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
High Security and High Performance VPN
ER8411 supports pass through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
IP MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
One Click ALG Activation
One Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network all controlled from a single interface.
| WAN connection | |
| Ethernet WAN |
 |
| DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option. |
 |
| SIM card slot Whether the device features a SIM card slot. |
|
| 3G/4G USB modem compatibility |
|
| SFP WAN |
|
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Static route |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Port forwarding |
|
| Management features | |
| Universal Plug and Play (UPnP) |
|
| Reset button |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 8 |
| Combo SFP ports quantity | 2 |
| USB ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Security | |
| URL filtering |
|
| Access Control List (ACL) |
|
| NAT functionality | One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Flash memory | 256 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 4096 MB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Certification | CE, FCC, RoHS |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| AC adapter included |
|
| Manual |
|
| SKU | 732455 |
| MPN | ER8411 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
