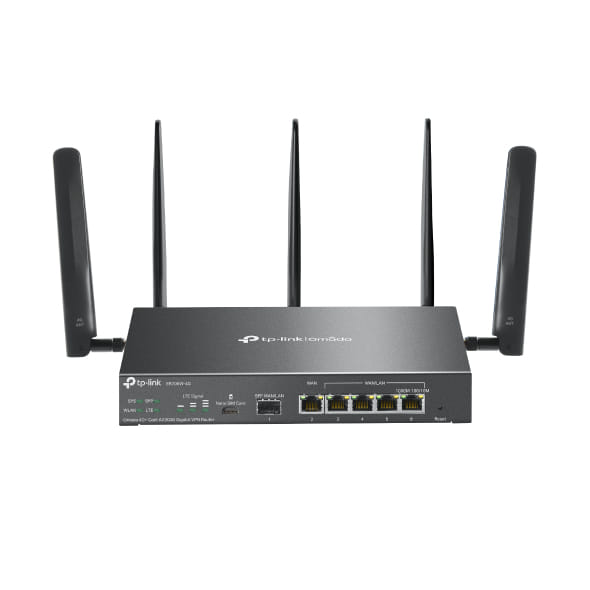

TP-Link ER706W-4G Omada AX3000 Gigabit VPN Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Dynamic DNS (DDNS)
VPN Passthrough

Mobile network
Mobile network generation	4G
3G standards	HSDPA, HSUPA, WCDMA
4G standard	LTE-TDD & LTE-FDD
4G bands supported	800,850,900,1800,2100,2300,2500,2600 MHz
SIM card type	NanoSIM

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port The device features a socket into which a USB cable can be plugged.

Management features
Bandwidth control
Reset button
MU-MIMO technology
MIMO

Security
Access Control List (ACL)
URL filtering
Network address translation (NAT)
NAT functionality	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP

Protocols

DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	LAN, LTE, Status, System, WAN
Product type The sub-category of the product.	Desktop/pole router

Antenna
Antenna design	External
Antennas quantity	5

Features
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	512 MB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4
Flash memory	128 MB

Power
Power source type What the power source is.	AC

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	226 mm
Depth The distance from the front to the back of something.	131 mm
Height The measurement of the product from head to foot or from base to top.	35 mm
