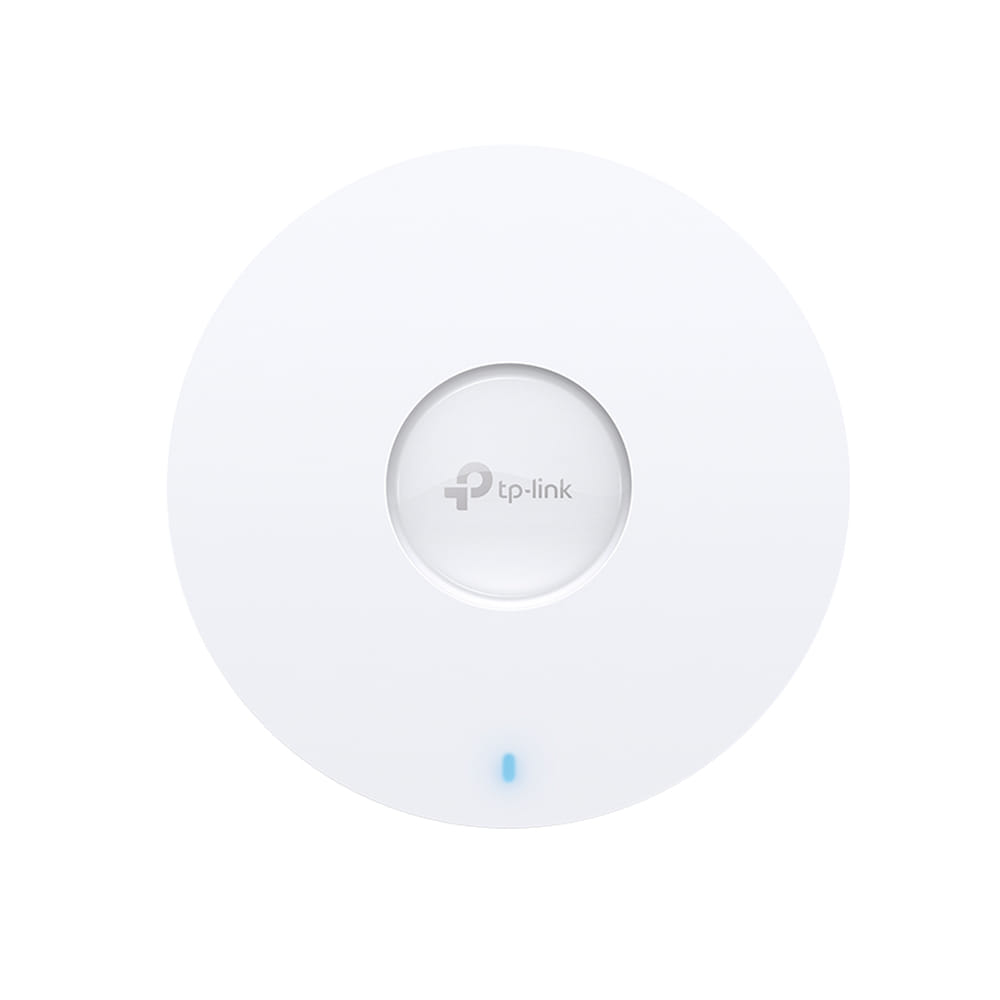

TP Link AXE11000 Ceiling Mount Quad Band WiFi 6E Access Point, 11000 Mbit/s, 1148 Mbit/s, 2402 Mbit/s, 4804 Mbit/s, 10000 Mbit/s, 2.4 / 5 / 5 / 6 GHz
Next Gen AXE11000 Enterprise Wireless
for High Density Environments
High Density Connectivity
Capable of connecting up to 2,000 clients
Ultra Fast AXE11000 WiFi 6 Speed
Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps
Centralized Cloud Management
Manage the whole network with cloud access or the Omada app
Smart Antennas
Professional Smart Antenna technology and intelligent algorithms
10GE Wired Performance
Boosts overall throughput with a 10 Gbps Ethernet port
160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160
Omada Mesh Technology
More flexible and convenient wireless deployment
PoE Support
Supports Power over Ethernet (802.3bt) for convenient deployment
Experience the Peak of WiFi with Smart Antennas
Improve performance, lower interference, and extend coverage for user heavy scenarios through TP Link Smart Antenna technology. Equipped with an ingenious 6 GHz/5 GHz/2.4 GHz antenna array, EAP690E HD automatically selects the optimal antennas to cover all terminal devices via intelligent algorithms, delivering lag free and superb WiFi experiences.
Reliable Business Networks with Intelligent Power Supply
With the intelligent power supply feature of EAP690E HD, the PoE switch can act as a backup power source. Intelligent power supply automatically and smoothly powers EAP690E HD when the DC adapter is accidentally disconnected, delivering a reliable and safe business network experience.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network all controlled from a single interface. Experience total control at your fingertips.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard to wire areas.
Boosted Network Security and Efficiency
Secure Guest Network with up to 32 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5 GHz/6 GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high density business networks.
Airtime Fairness
Increases average network throughput in heavily congested environments.
for High Density Environments
High Density Connectivity
Capable of connecting up to 2,000 clients
Ultra Fast AXE11000 WiFi 6 Speed
Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps
Centralized Cloud Management
Manage the whole network with cloud access or the Omada app
Smart Antennas
Professional Smart Antenna technology and intelligent algorithms
10GE Wired Performance
Boosts overall throughput with a 10 Gbps Ethernet port
160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160
Omada Mesh Technology
More flexible and convenient wireless deployment
PoE Support
Supports Power over Ethernet (802.3bt) for convenient deployment
Experience the Peak of WiFi with Smart Antennas
Improve performance, lower interference, and extend coverage for user heavy scenarios through TP Link Smart Antenna technology. Equipped with an ingenious 6 GHz/5 GHz/2.4 GHz antenna array, EAP690E HD automatically selects the optimal antennas to cover all terminal devices via intelligent algorithms, delivering lag free and superb WiFi experiences.
Reliable Business Networks with Intelligent Power Supply
With the intelligent power supply feature of EAP690E HD, the PoE switch can act as a backup power source. Intelligent power supply automatically and smoothly powers EAP690E HD when the DC adapter is accidentally disconnected, delivering a reliable and safe business network experience.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network all controlled from a single interface. Experience total control at your fingertips.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard to wire areas.
Boosted Network Security and Efficiency
Secure Guest Network with up to 32 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5 GHz/6 GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high density business networks.
Airtime Fairness
Increases average network throughput in heavily congested environments.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 11000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Maximum data transfer rate (6 GHz) | 4804 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 6 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection |
|
| Automatic channel scanning |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Rate limiting |
|
| Flow control support |
|
| Band steering |
|
| Airtime Fairness (ATF) |
|
| BeamForming |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 32 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Access Control List (ACL) |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 12 V |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| LED indicators |
|
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Certificates | |
| Certification | CE, FCC, RoHS, IC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 280 mm |
| Depth The distance from the front to the back of something. | 280 mm |
| Height The measurement of the product from head to foot or from base to top. | 59.1 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 325 mm |
| Package depth The distance from the front to the back of the packaging. | 393 mm |
| Package height The distance from the top to the bottom of the packaging. | 148 mm |
| Package weight Weight of the packaged product. | 3.25 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| SKU | 734873 |
| MPN | EAP690E HD |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
