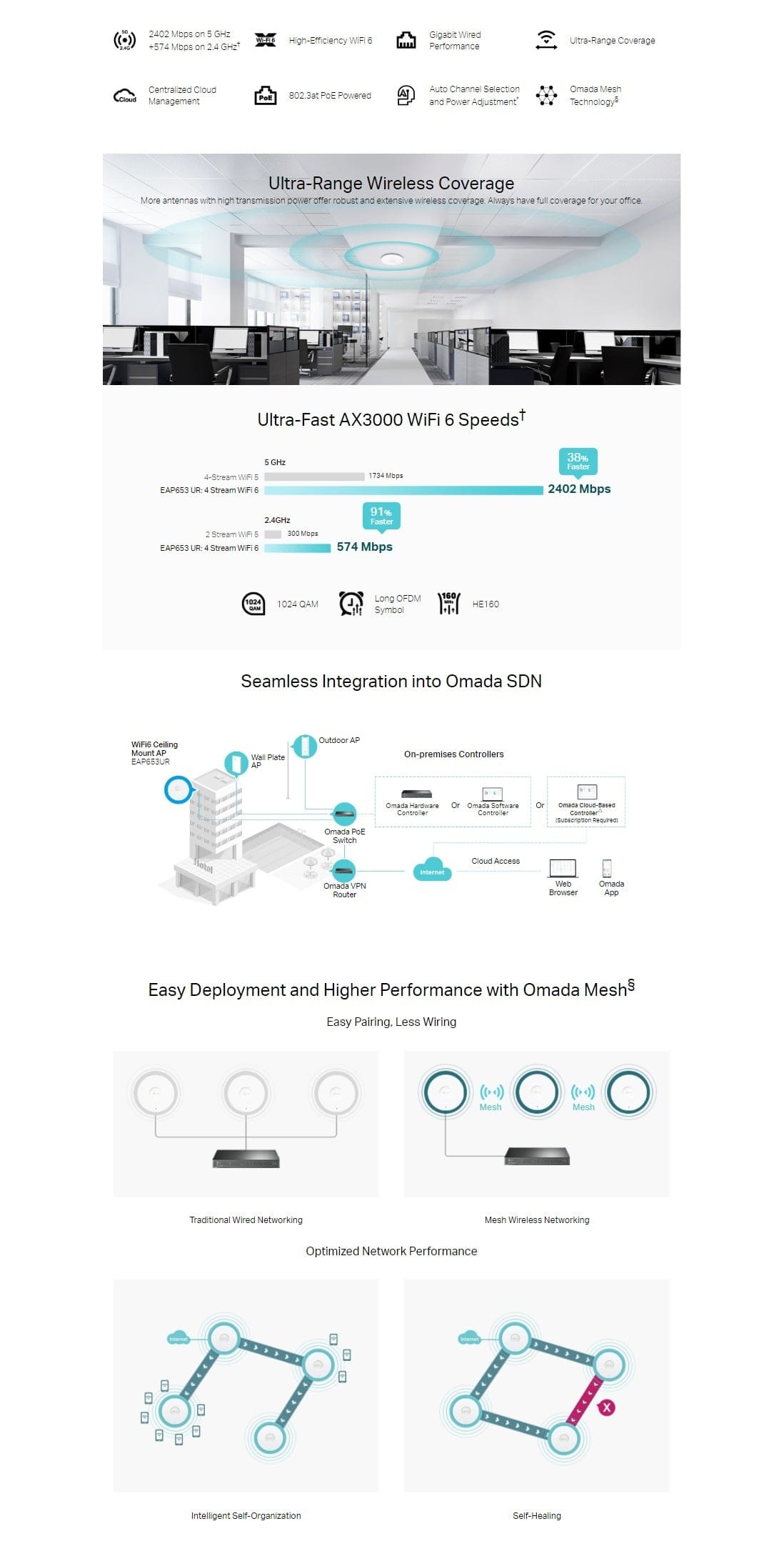

Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz; Ultra-range wireless coverage by more antennas with higher transmit power; Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc; Advanced Features: Omada Mesh, Seamless Roaming, etc; PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included); Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility; Integrates with the Omada SDN platform for centralized management

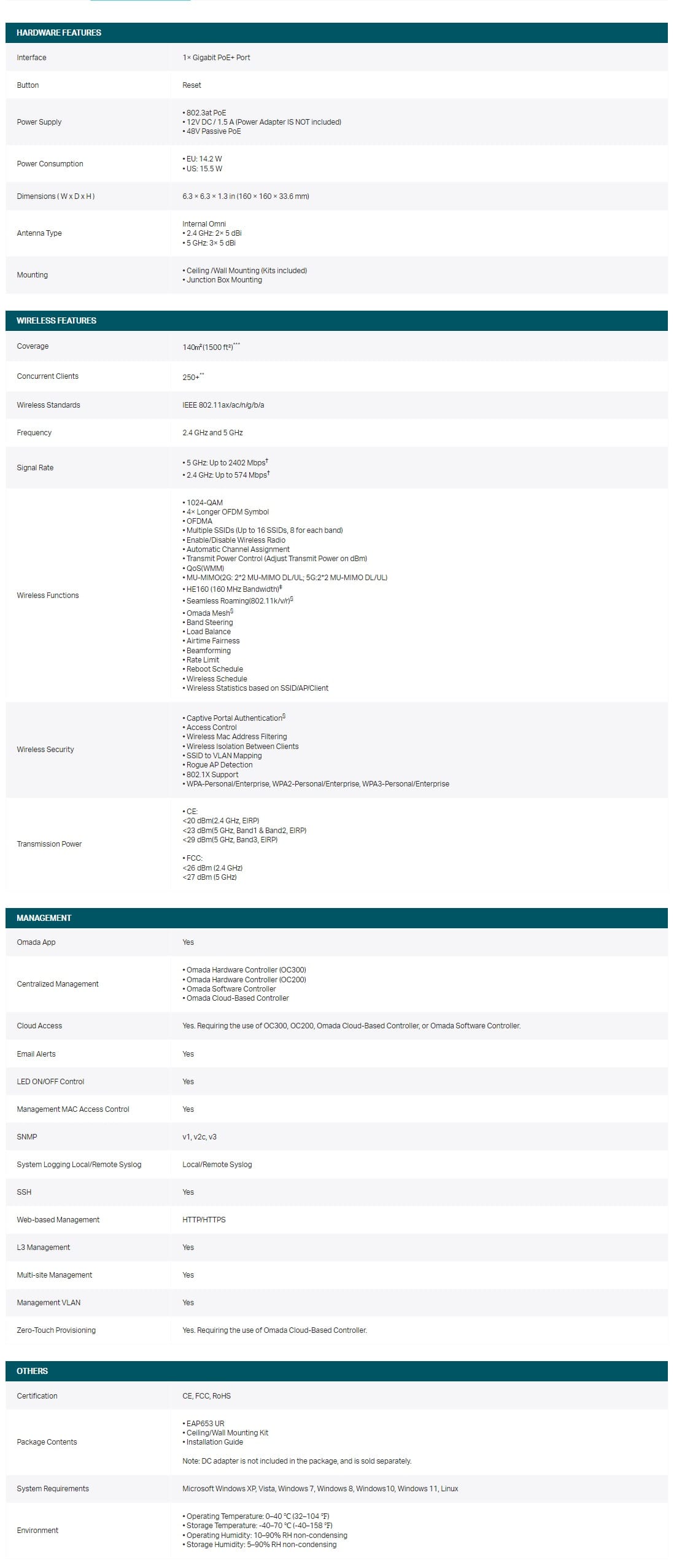

| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 5 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Number of users The number of people that use or can use this product. | 250 user(s) |
| Automatic channel selection |
|
| Automatic channel scanning |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Rate limiting |
|
| Flow control support |
|
| Band steering |
|
| Airtime Fairness (ATF) |
|
| Quality of Service (QoS) support |
|
| BeamForming |
|
| Transmitting power (CE) | 27 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Syslog |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| DC voltage range | 12 V |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| LED indicators |
|
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 33.6 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| SKU | 794105 |
| MPN | EAP653 UR |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
