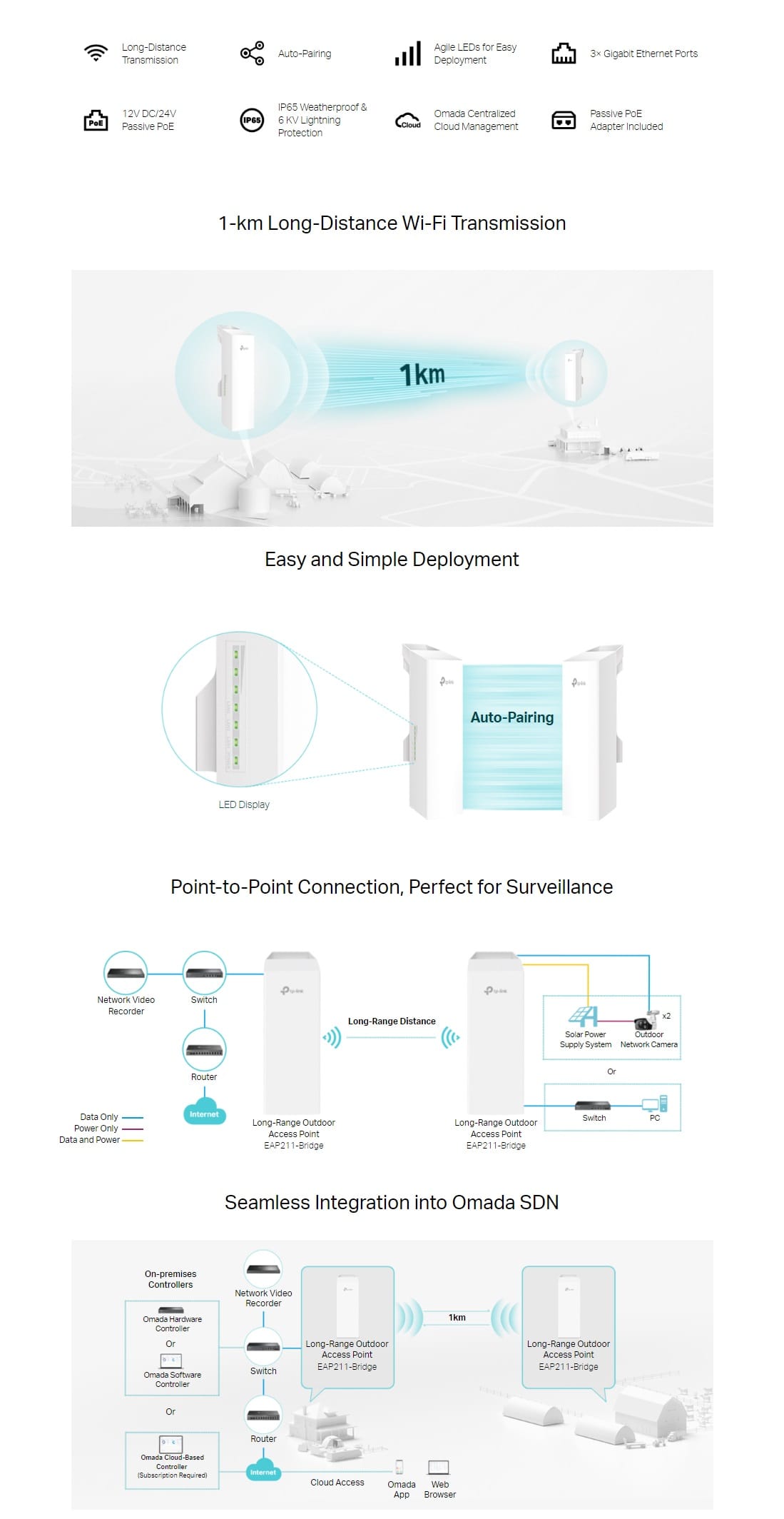

802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.; Ideal for long-range wireless transmission up to 1 km; Auto-pairing and agile LEDs for efficient deployment; 3× Gigabit Ethernet ports for more high-speed IP camera connections; Supports Omada SDN for remote and centralized management; IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability; Supports Passive PoE for flexible deployment (adapter included)

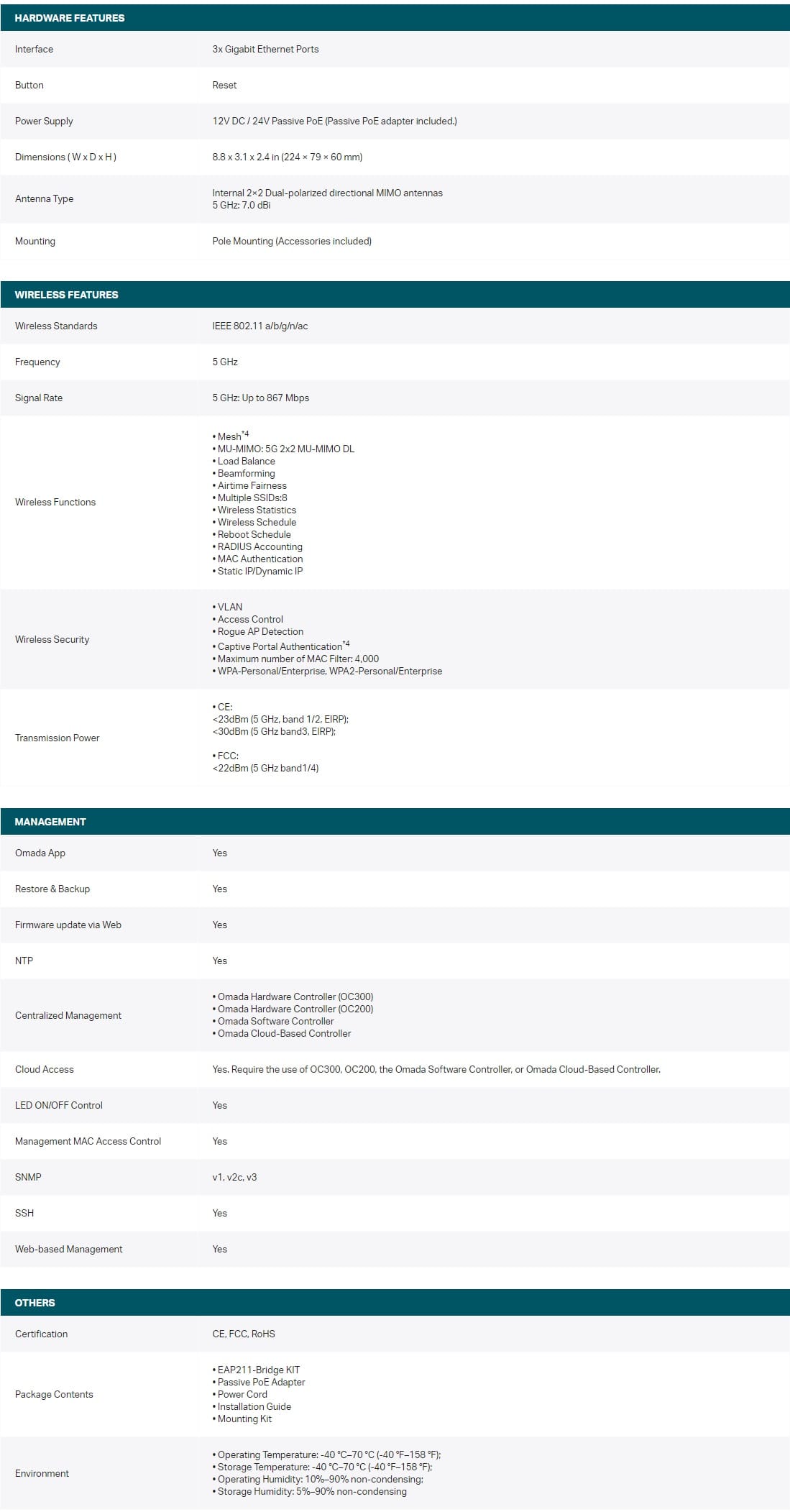

| Data transmission | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 1000 m |
| Antenna | |
| Antenna design | Internal |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | 2x2 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 7 dBi |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 5 GHz |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Features | |
| Product type The sub-category of the product. | Network bridge |
| Mounting type Type of mounting e.g. wall mounting. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators | Power |
| Reset button |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Power | |
| Power source type What the power source is. | DC, PoE |
| DC input voltage | 12 V |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 24 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 224 mm |
| Depth The distance from the front to the back of something. | 79 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| SKU | 765710 |
| MPN | EAP211-Bridge KIT |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
