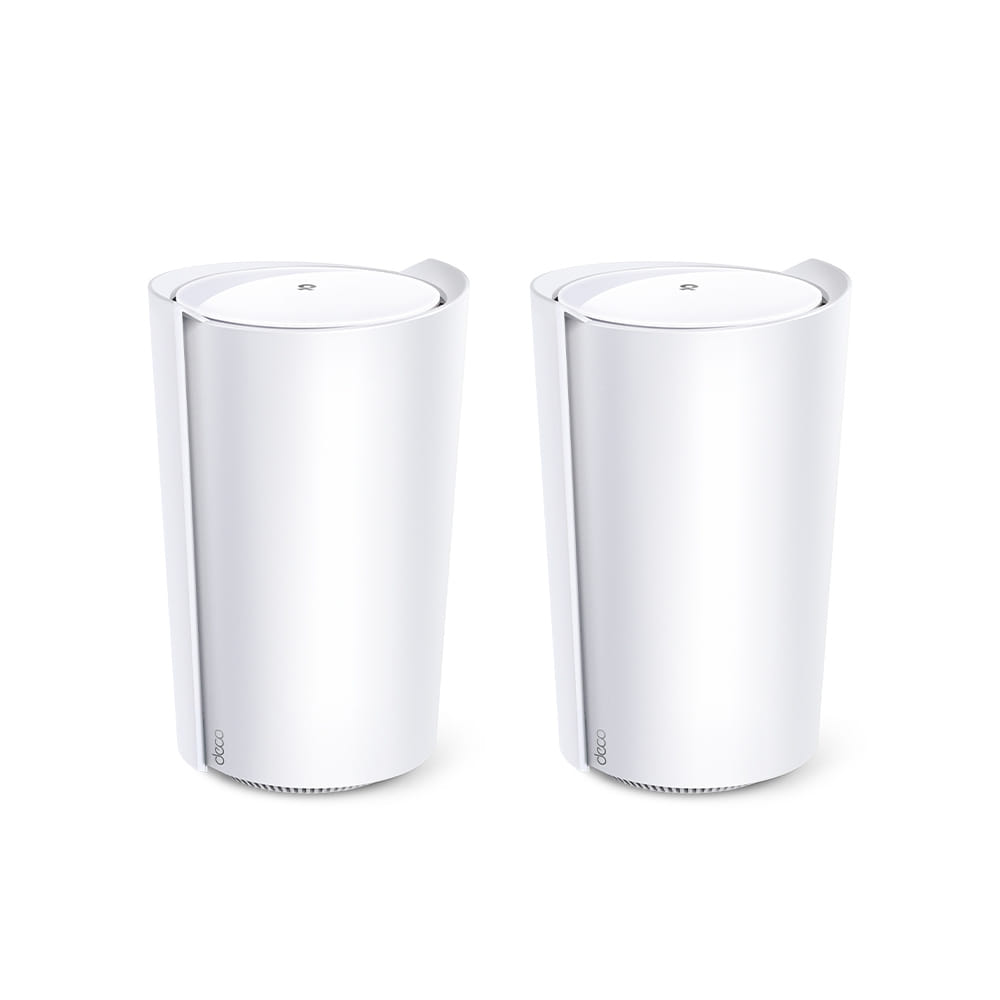

AX7800, Wi Fi 6, Tri Band 5GHz, 130x123x210.5mm, White
True Tri Band Speed " All three WiFi bands work together to unleash your network s total speeds up to 7,800 Mbps for up to 200 devices
8 Streams, Less Lag 4 -4/HE160 4804 Mbps 2 -2/HE160 2402 Mbps 2 -2 574 Mbps
Whole Home WiFi 6 " Cover up to 6,100 ft2 with next gen seamless WiFi and make dead zones and buffering a thing of the past
Up to 2.5 Gbps Wired Connections " 1 - 2.5 Gbps port 2 - Gigabit port offer high speed data transmissions.
Seamless AI Driven Mesh " Unites your home under one name and password while delivering the best connections as you move room to room
TP Link HomeShield " Keeps your home network safe with cutting edge features for network and IoT protection
Setup Made Easier Than Ever " The Deco app walks you through setup step by step
8 Streams, Less Lag 4 -4/HE160 4804 Mbps 2 -2/HE160 2402 Mbps 2 -2 574 Mbps
Whole Home WiFi 6 " Cover up to 6,100 ft2 with next gen seamless WiFi and make dead zones and buffering a thing of the past
Up to 2.5 Gbps Wired Connections " 1 - 2.5 Gbps port 2 - Gigabit port offer high speed data transmissions.
Seamless AI Driven Mesh " Unites your home under one name and password while delivering the best connections as you move room to room
TP Link HomeShield " Keeps your home network safe with cutting edge features for network and IoT protection
Setup Made Easier Than Ever " The Deco app walks you through setup step by step
| Design | |
| Product type The sub-category of the product. | Mesh system |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
 |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antennas quantity | 2 |
| Maximum coverage | 570 m² |
| Transmit power | <30 dBm(5 GHz), <30 dBm(2.4 GHz) |
| Reset button |
|
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA2, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| Dynamic IP |
|
| Static IP |
|
| IGMP proxy |
|
| IGMP snooping |
|
| Tagged VLAN |
|
| Dynamic DNS (DDNS) |
|
| Guest access |
|
| Features | |
| Quality of Service (QoS) support |
|
| Port forwarding |
|
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | SPI Firewall |
| BeamForming |
|
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Universal Plug and Play (UPnP) |
|
| Parental control |
|
| Parental control features | Bedtime, Custom profiles, Family time, Pause the Internet, Time rewards, Weekly/monthly reports |
| MU-MIMO technology |
|
| MIMO |
|
| Protocols | |
| Supported network protocols (IPv6) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet WAN |
|
| Certificates | |
| Certification | CE, FCC, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 130 mm |
| Depth The distance from the front to the back of something. | 123 mm |
| Height The measurement of the product from head to foot or from base to top. | 210.5 mm |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 2 pc(s) |
| AC adapter included |
|
| Number of units included | 2 pc(s) |
| Ethernet cable |
|
| SKU | 711761 |
| MPN | Deco X95(2-pack) |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
