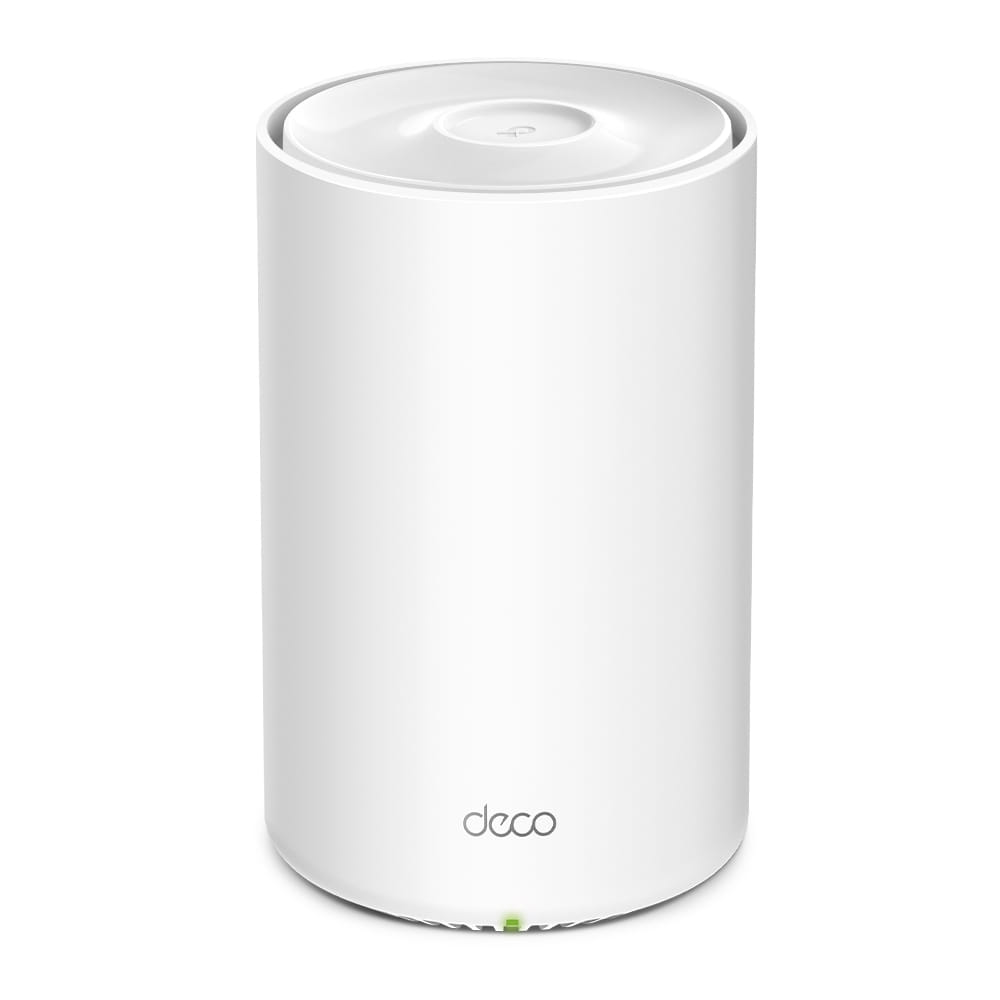

TP-LINK 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway, White, Internal, Power, CE: 20 dBm (2.4GHz), 23 dBm (5GHz), 0 - 40 DegC, -40 - 60 DegC
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | White |
| LED indicators | Power |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antennas quantity | 4 |
| Number of devices supported The amount of devices that can be used with this product. | 150 |
| Transmit power | CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) |
| Reset button |
 |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certification | CE, RoHS |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA,WPA-PSK,WPA3 |
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| Dynamic IP |
|
| Static IP |
|
| Dynamic DNS (DDNS) |
|
| Guest access |
|
| Mobile network | |
| 3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV. |
|
| 4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing. |
|
| 3G standards | DC-HSPA+,HSPA,UMTS |
| 4G standard | TD-LTE & FDD-LTE |
| UMTS bands supported | 850,900,2100 MHz |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| SIM card type | NanoSIM |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.5 GHz |
| Quality of Service (QoS) support |
|
| Cloud services supported | TP-Link ID |
| Port forwarding |
|
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Supported WAN type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| MU-MIMO technology |
|
| MIMO |
|
| Operating modes | 3G/4G, Router, Access Point |
| Protocols | |
| Supported network protocols (IPv6) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| Ethernet WAN |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 105 mm |
| Depth The distance from the front to the back of something. | 105 mm |
| Height The measurement of the product from head to foot or from base to top. | 167 mm |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| AC adapter included |
|
| Number of adapters included The quantity of adapters, which are devices for connecting pieces of equipment that cannot be connected directly. | 1 pc(s) |
| Ethernet cable |
|
| SKU | 518939 |
| MPN | Deco X20-4G |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
