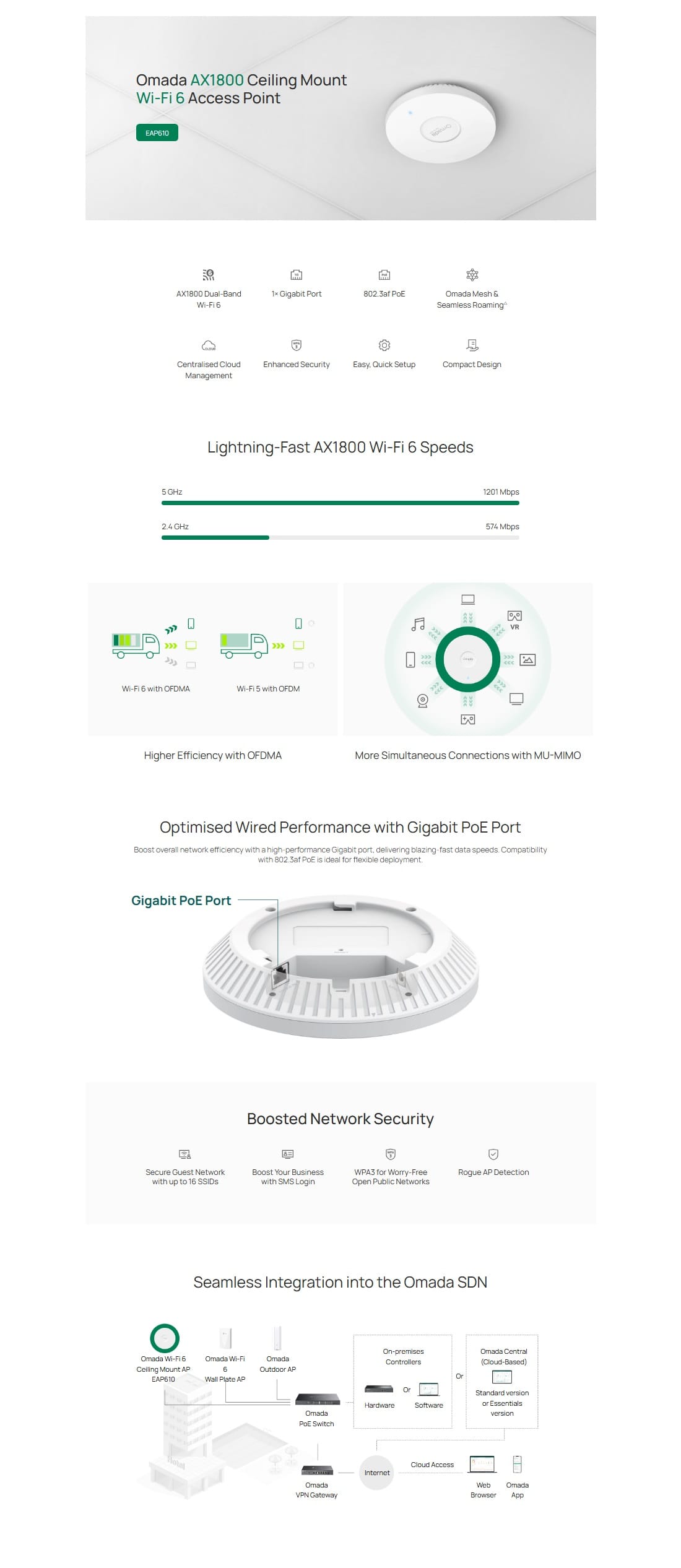

4-Stream Dual-Band Wi-Fi 6: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.; 1× Gigabit Port: Ensures fast connectivity throughout the network.; Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.; Flexible Deployment and Easy Setup: Supports 802.3af PoE, Passive PoE, and DC power (adapter not included) for versatile installation with one-click setup via Omada SDN.; Advanced Features: Supports centralised management, Mesh, and Seamless Roaming.; More Connections and Wider Coverage: Supports 250+ concurrent clients** and covers up to 1,250 ft² (115 ㎡)* for reliable and extensive wireless connectivity.

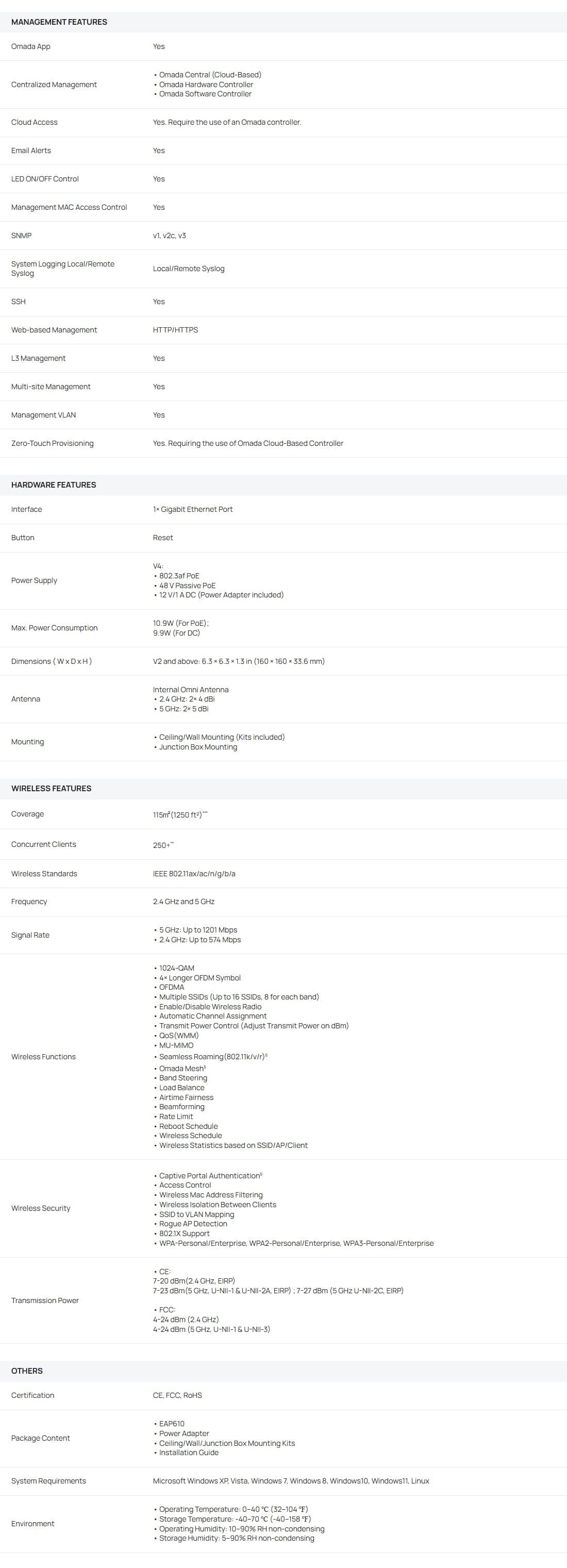

| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 5 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| MIMO |
|
| MIMO type | Multi User MIMO |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Rate limiting |
|
| Band steering |
|
| Airtime Fairness (ATF) |
|
| Quality of Service (QoS) support |
|
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, EIRP) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3,WPA3-Enterprise |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Access Control List (ACL) |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Input current | 1 A |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| LED indicators |
|
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 243 mm |
| Depth The distance from the front to the back of something. | 243 mm |
| Height The measurement of the product from head to foot or from base to top. | 64 mm |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| AC adapter included |
|
| Mounting kit |
|
| Package type The type of product package e.g. box. | Box |
| SKU | 531482 |
| MPN | EAP610 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
