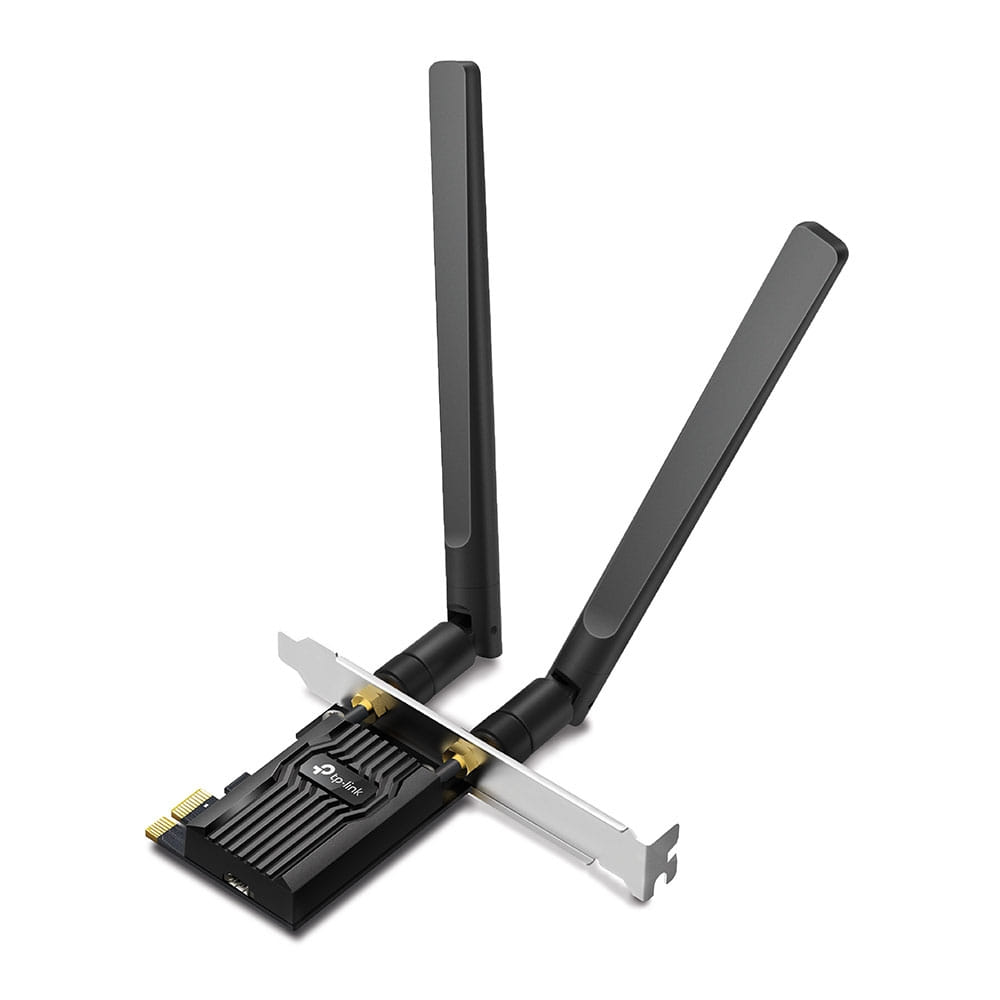

TP Link AX1800 Wi Fi 6 Bluetooth 5.2 PCIe Adapter, Internal, Wireless, PCI Express, WLAN / Bluetooth, 1800 Mbit/s, Black
Easily Get Start with Wi Fi 6
AX1800 Wi Fi 6 Bluetooth 5.2 PCIe Adapter
Fully Featured Wi Fi 6
Warp Speed up to 1800 Mbps
Superior Coverage
Bluetooth 5.2
Cutting Edge Security
Cutting Edge Wi Fi 6
The latest Wi Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag free wireless connectivity at the same time all of your other devices are communicating.
High Gain Antennas for Broader Coverage
Two powerful signal boosting high gain antennas greatly extend existing Wi Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2
AX1800 Wi Fi 6 Bluetooth 5.2 PCIe Adapter
Fully Featured Wi Fi 6
Warp Speed up to 1800 Mbps
Superior Coverage
Bluetooth 5.2
Cutting Edge Security
Cutting Edge Wi Fi 6
The latest Wi Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag free wireless connectivity at the same time all of your other devices are communicating.
High Gain Antennas for Broader Coverage
Two powerful signal boosting high gain antennas greatly extend existing Wi Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN / Bluetooth |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1800 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Design | |
| Component for What this product is used as a part of (component for). | PC/Server |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Internal The product is built in. |
|
| Antenna |
|
| Antenna design | External |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 27 dBm |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Operating modes | Infrastructure mode |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120.8 mm |
| Depth The distance from the front to the back of something. | 78.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 20.9 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 201.5 mm |
| Package depth The distance from the front to the back of the packaging. | 152.5 mm |
| Package height The distance from the top to the bottom of the packaging. | 41.5 mm |
| Package weight Weight of the packaged product. | 220 g |
| Packaging content | |
| Mounting brackets included |
|
| Resource CD |
|
| Bluetooth header cable |
|
| Quick installation guide |
|
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| SKU | 720107 |
| MPN | ARCHER-TX20E |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.tp-link.com/ |
