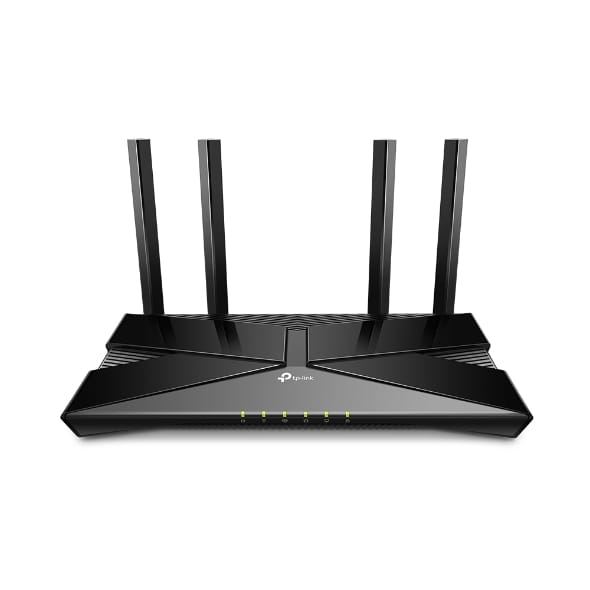

AX1800 Wi Fi 6 Router
Archer AX23
AX1800 Dual Band Wi Fi 6 Router
- Super Fast 1.8 Gbps Wi Fi " Enjoy smooth 4K streaming and downloading with super fast Wi Fi speeds of 1.8 Gbps.
- Connect More Devices " Communicates with more devices using OFDMA while simultaneously reducing lag.
- Broader Coverage " Improved algorithm, beamforming, and high performance antennas enhance the Wi Fi coverage performance.
- Next Gen Platform " The Next Gen High Efficiency Qualcomm Chipset provides fast and stable Wi Fi while saving power consumption.
- Parental Controls " Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
- Works with Most ISPs " Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
- OneMesh " Use with OneMesh extenders to get whole home coverage and enjoy smooth roaming between signals.
- Easy Setup " Set up your router in minutes with the powerful TP Link Tether App.
- Backward Compatible " Supports all previous 802.11 standards Wi Fi devices.
| Name | Value |
|---|---|
| Compatible/Used for | |
| Dimensions | 260.2 - 135.0 - 38.6 mm |
| LAN Ports | 1 - Gigabit WAN Port 4 - Gigabit LAN Ports |
| Product Type | WiFi Router |
| Warranty | 3 Years |
| Wifi Ghz/Mbps | 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| Wireless | Wi Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WAN connection | |
| Ethernet WAN |
 |
| SIM card slot Whether the device features a SIM card slot. |
 |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Port forwarding |
|
| Dynamic DNS (DDNS) |
|
| Static route |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Web-based setup wizard |
|
| Bandwidth control |
|
| Reset button |
|
| WPS push button |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Guest access |
|
| Access Control List (ACL) |
|
| IP address filtering |
|
| URL filtering |
|
| System event log |
|
| DMZ support |
|
| Network address translation (NAT) |
|
| NAT functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Universal Plug and Play (UPnP) |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Product type The sub-category of the product. | Tabletop router |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included |
|
| Warranty card |
|
| Quick installation guide |
|
| Antenna | |
| Antenna design | External |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | SMA |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time. | 1500 MHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 2 |
| Power | |
| Power source type What the power source is. | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 260.2 mm |
| Depth The distance from the front to the back of something. | 135 mm |
| Height The measurement of the product from head to foot or from base to top. | 41.6 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 500 mm |
| Package depth The distance from the front to the back of the packaging. | 350 mm |
| Package height The distance from the top to the bottom of the packaging. | 395 mm |
| Package weight Weight of the packaged product. | 730 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 721430 |
| MPN | ARCHER-AX23 |
| Brand | TP-Link |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.tp-link.com/ |
